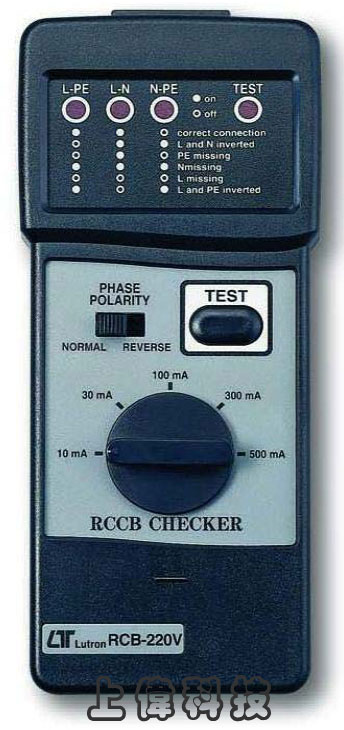

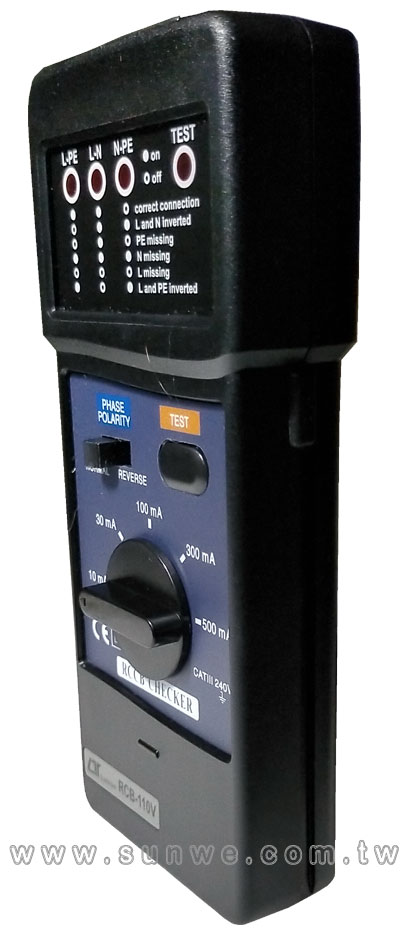

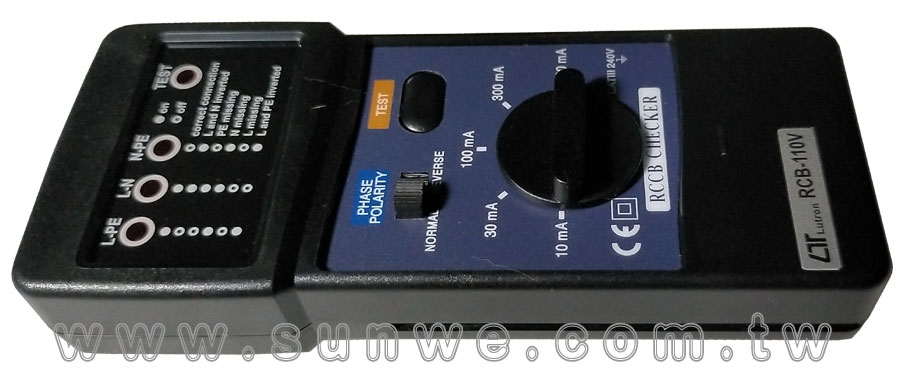

RCB-110V/220V

漏電斷路器測試計

特色

工作電壓範圍 :

RCB-110V (95 ~1 25V)

RCB-220V (200 ~ 240V)

漏電斷路保護器測試(殘餘電流裝置測試)

檢查電源插座腳位極性之排列方式

測試電流檔位 : 10 / 30 / 100 / 300 / 500mA 5檔

測試電流持續時間 : 約140mS ~ 200mS

Size：180 X 72 X 32mm

FEATURES

It is used for quick checking of the pin assignment of a safety socket as well as for verification of the RCCB with the 5 rated tripping current settings of 10 mA,30 mA, 100 mA, 300 mA and 500 mA.

Phase detection and phase inversion.

Indication of plug assignment via 3 LEDs.

Display of tripping pulse current for residual currents.

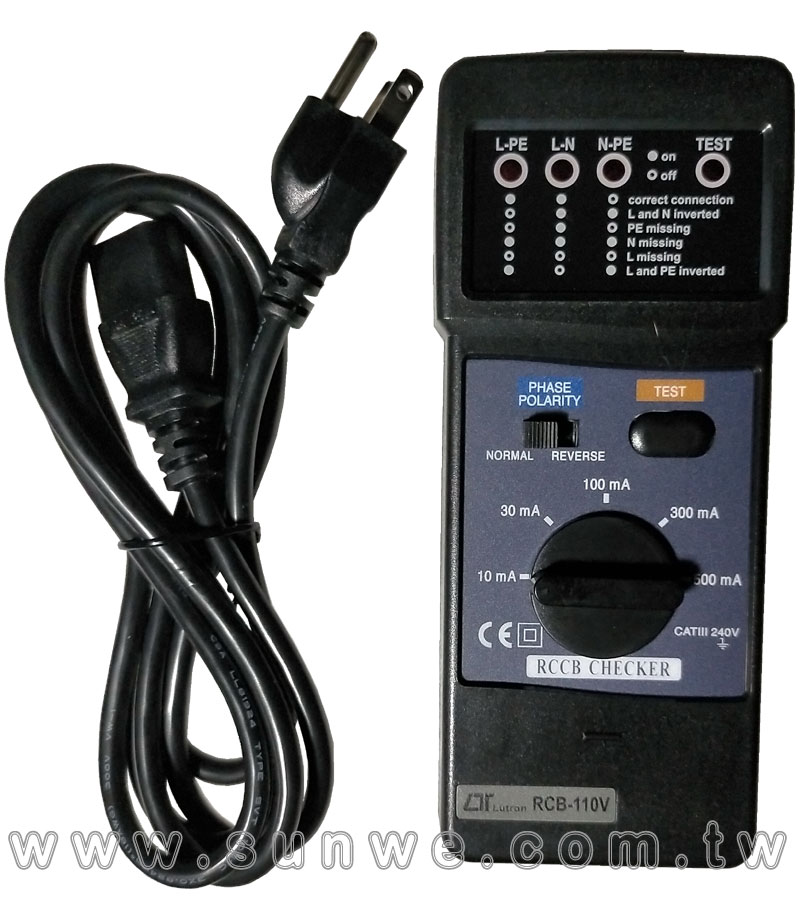

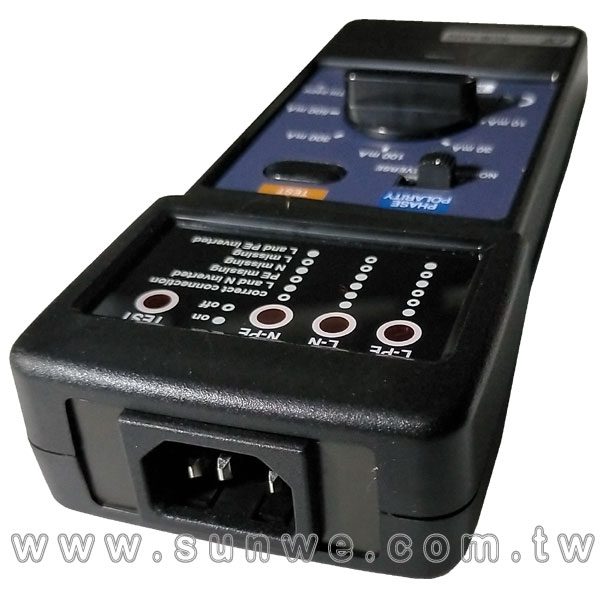

Operated without battery, direct power supply from the mains socket to be tested.

Handy & compact ABS plastic housing case.

規格

　

　

　

　

　
