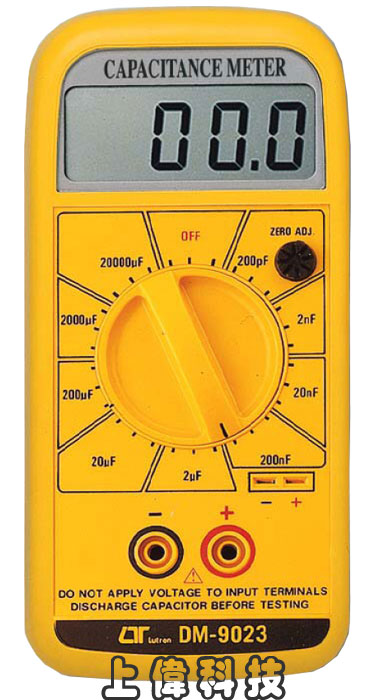

This Digital Capacitance Meter give a
direct reading of capacitance on a 3 1/2 digits LCD display. Nine ranges
give precision readings from 0.1 pF to 20,000 uF, which includes virtually
all capacitors used in electronic engineering labs, production, service
shops, and schools. It can be used to check tolerance, sort values, select
precision values, measure unmarked capacitors, select matched sets, and
measure cable, switch or PCB LAYOUT capacitance. Its battery operation,
light weight, and small size make it a truly portable instrument.
Large LCD display, clear read-out even in
bright conditions.
Low power consumption..
High accuracy in measuring
LSI-circuit use provides high reliability
and durability.
Uses rotary ranges switch for easy
operation.
Low battery voltage indicator.
Fast sampling rate.
一般規格
顯示 (Display)
65 mm x 48 mm large LCD display
with bar graph indicator.
範圍 (Range)
9 Ranges with full scale values
from 200 pF to 20,000 uF..
過載顯示 (Overload
indicator)
Indication of " 1"
歸零調整 (Zero Adjustment)
Front panel Adjustment control.
This is limited to approx. 20 pF.
超出範圍指示 (Out-of-Range
indication)
Indication of " 1 "
取樣比 (Sampling rate)
0.5 second .
操作溫度 (Operating Temp.)
0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ).
操作溼度 (Operating
Humidity)
Less than 80% RH.
電源供應 (Power Supply)
006P DC 9V battery.
電池壽命 (Battery Life)
Approximately 200 hours on
alkaline or 100 hours on carbon zinc battery with normal usage.
(Typical consumption current 3 to 4 mA on 200 pF to 200 uF range).
體積 (Dimensions)
185 x 87 x 39 mm (7.3 x 3.4 x 1.5
inch).
重量 (Weight)
290 g/0.64 LB (including battery).
附件 (Accessories
Included)
Red and Black Test Leads........ 1
Set
Spare Fuse (0.2A)
.................. 1 PC.
Instruction Manual
................. 1 PC.
電器規格
Normal range
Max.
In-range Display
Resolution
Test
Frequency
200 pF
199.9 pF
0.1 pF
800 Hz
2 nF
1.999 nF
1 pF
800 Hz
20 nF
19.99 nF
10 pF
800 Hz
200 nF
199.9 nF
100 pF
800 Hz
2 uF
1.999 uF
1000 pF
800 Hz
20 uF
19.99 uF
0.01 uF
80 Hz
200 uF
199.9 uF
0.1 uF
8 Hz
2,000 uF
1,999 uF
1 uF
8 Hz
20,000 uF
19,990 uF
10 uF
8 Hz
pF = picofarad ( 10^-12 Farad)
nF = nanofarad ( 10^-9 Farad)
uF = microfarad ( 10^-6 Farad)
Accuracy (23± 5 ℃)
* ± 1 % of full scale 1 d on 200 pF to
2000 uF ranges.
* ± 1 % of full scale 1 d on 2,000 uF
range.
* ± 2 % of full scale 2 d on 20,000 uF
ranges.
Excitation Voltage
2.8 volts peak, maximum. POSITIVE input
terminal's voltage is always higher than NEGATIVE terminal.
Protection
The Meter is protected against damage from
charged capacitors (more than DC 50 volt) by the fuse (0.2A).
