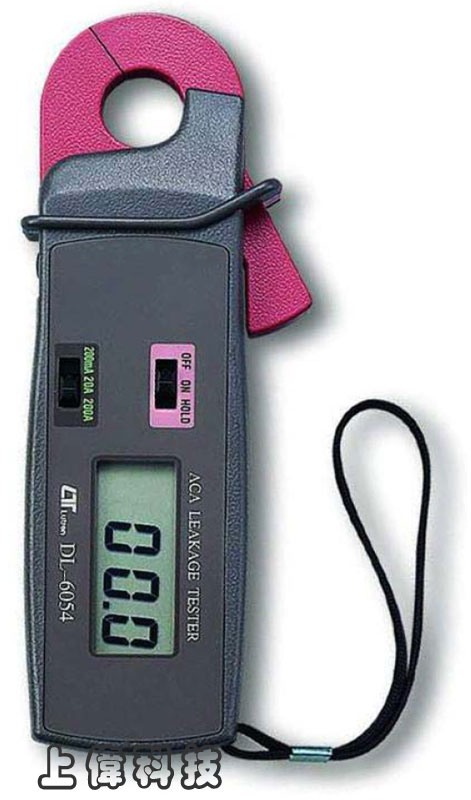

DL-6054
洩漏電流測試鉤錶
簡介
- 交流電流 ( AC )：
- 0.1mA ~ 200mA
- 0.01A ~ 20A0.1A ~ 200A
- 精確度：±1.5%
- 讀值鎖定功能
- 鉤部口徑19mm
- Size：180 X 47 X 35mm
FEATURES
- High precision AC mA measurement, it is useful for AC mA leakage current measurement.
- Measure AC mA on the inductive conductor.
- Miniature type, easy to carry out & operation.
- High precision for low ACA leakage current measurement.
- Built-in DATA HOLD function.
- Crystal time base, high quality.
- LCD display allows clear readout-out even at high ambient light level.
- LSI circuit provides high reliability and durability.
- Overload protection circuit is provided for all range.
- Design to meet IEC 1010 safety requirement.
- Compact, light weight and excellent operation.
一般規格
顯示 (Display)
- 13 mm ( 0.5" ) LCD, 3 1/2 digits. Max. indication 1999.
測量及解析度 (Measurement & Resolution)
- 200AC mA x 0.1 mA
- 20ACA x 0.01 A
- 200ACA x 0.1 A
讀值鎖定 (Data Hold)
- Available to hold the measuring values on the display.
精確度 (Accuracy)
- ± ( 1.2 % + 5 d )
- * Specification be tested on sine wave 50/60 Hz.
時脈 (Time Base)
- Quartz crystal, 32768 Hz.
過載線路保護 (Overload Circuit Protection)
- 300 ACA max. ( within 1 minute for 20A, 200A range ).
歸零調整 (Zero Adjustment)
- Automatic adjustment.
輸入過載 (Over-input)
- Display shows ' 1 '.
取樣時間 (Sampling Time)
- Approx. 0.4 second.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電池 (Battery)
- 006P DC 9V battery.
電源消耗 (Power Consumption)
- Approx. DC 1.2 mA.
體積 (Dimensions)
- HWD 180 x 47 x 35 mm. ( 7.1 x 1.9 x 1.4 inch. )
重量 (Weight)
- 200 g/0.44 LB ( including battery ).
鉤部口徑 (Conductor Size)
- 19 mm Dia
附件 (Accessories Included)
- Operation manual...................... 1 PC.
- Carrying case......................... 1 PC.
|
