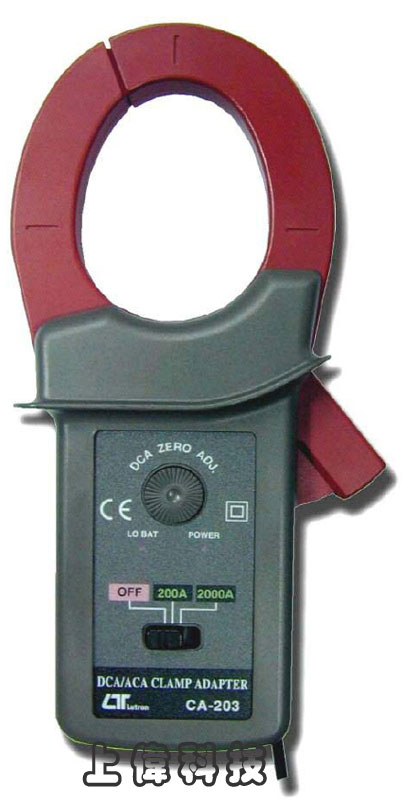

CA-203
交直流電流鉤部轉換器
簡介
- 範圍 : 交直流電流 ( ACA/DCA ) 0 ~ 200A / 0 ~ 2000A 兩檔
- 交流(AC)輸出 : 1AC mV=1ACA
- 直流(DC)輸出 : 1DC mV=1DCA
- 精確度 : ±1.5%
- Size : 210x64x33mm
規格
範圍 (Range)
- ACA : 0 to 2,000 ACA, 2 ranges ( 200 ACA, 2,000 ACA ).
- DCA : 0 to 2,000 DCA, 2 ranges ( 200 DCA, 2,000 DCA ).
輸出 (Output)
- ACA : 1 AC mV per 1 ACA.
- DCA : 1 DC mV per 1 DCA.
精確度 (Accuracy)
- ACA 200 A : ± ( 1.5 % + 1 DCA )
- ACA 2,000 A : ± ( 2 % + 5 ACA )
* Accuracy is tested under the range 1,500 A.
- DCA 200 A : ± ( 1.5 % + 1 ACA )
- DCA 2,000 A : ± ( 2 % + 5 ACA )
* Accuracy is tested under the range 1,500 A.
頻率響應 (Frequency Response)
- ACA frequency response is from 40 to 400 Hz, specification be tested on sine wave 50/60 Hz.
感應器 (Sensor)
- Hall effect sensor.
DCA 歸零調整 (DCA Zero Adjustment)
- External knob, adj. limited within approx. ( 30 to 50 DCA ).
安全標準 (Safety Standard)
- Meet IEC 1010.
電池 (Battery)
- DC 9V battery, heavy duty or Alkaline type, 006P, MN1604 ( PP3) or equivalent.
電源消耗 (Power Consumption)
- Approx. DC 15 mA.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
重量 (Weight)
- 345 g/0.76 LB ( with battery ).
體積 (Dimensions)
- Meter : 210 x 64 x 33 mm ( 8.3 x 2.5 x 1.3 inch )
- Jaw : 86 mm ( 3.4 inch ) - outside.
附件 (Accessories Included)
- Operation manual..................... 1 PC.
應用 (APPLICATIONS)
- * To match ACV 200 mV or 2V range of Digital Multimeter or Volt meter be used as a precision ACA Clamp Meter.
- * To match DCV 200 mV or 2V range of Digital Multimeter or Volt meter be used as a precision DCA Clamp Meter.
- * DCA, ACA recorder, controller, indicator.
|
