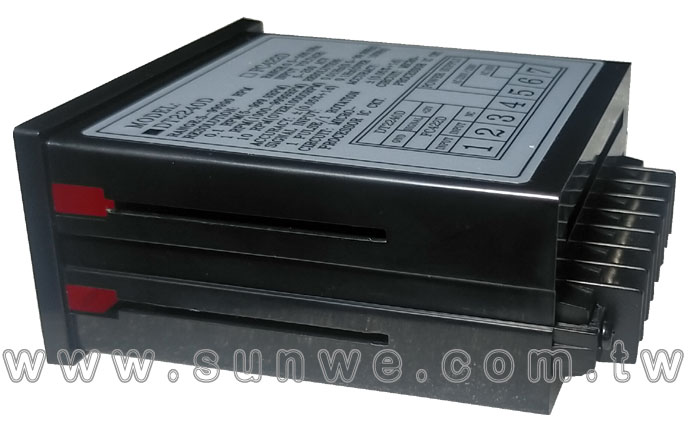

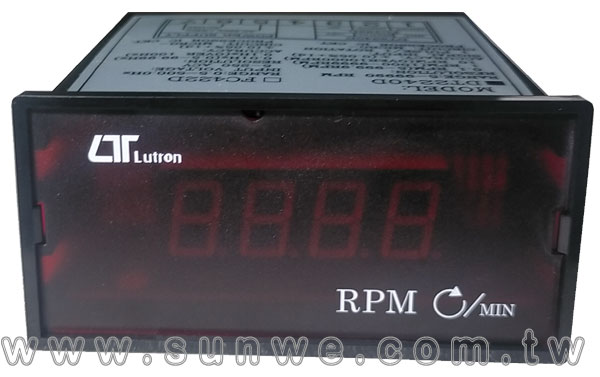

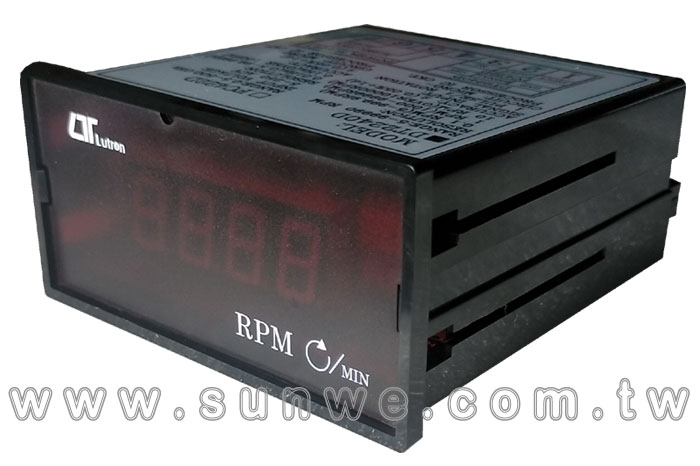

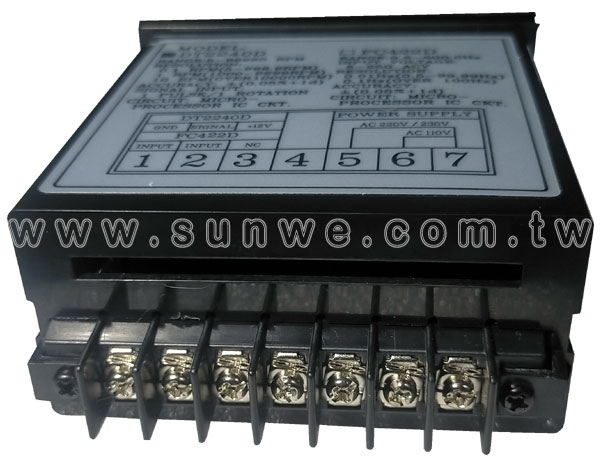

DT-2240D 盤面式轉速計
PX-01 近接開關
特色
- 測量範圍 : 5.0 ~ 99990RPM
- 精確度 : ± 0.05%
- 4位數紅色 LED顯示器
- 全自動換檔
- 需搭配近接開關或光電開關
- Size：96 X 48 X 104mm

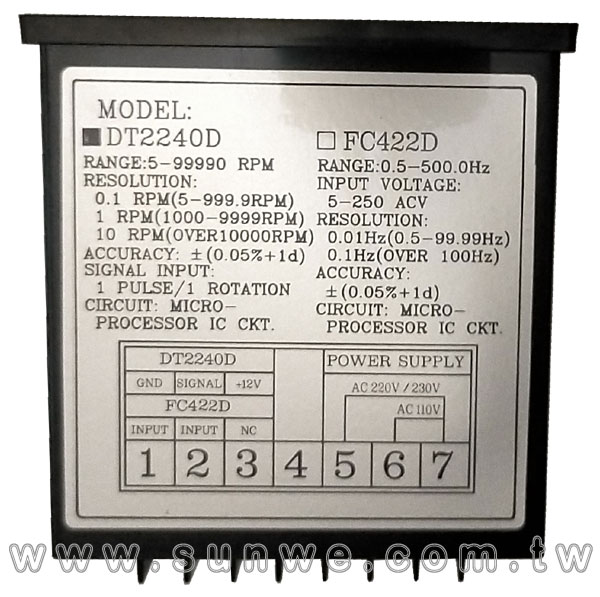

規格
顯示 (Display)
- 14.3 mm (0.56") high brightness red red LED.
- 4 digits., max. display 9999.
訊號輸入 (Signal input)
- One round per input signal to get RPM resolution
- ( recommend to match optional proximity sensor, PX-01 ).
範圍 (Range)
- 5 to 9,9990 RPM
解析度 (Resolution)
- 0.1 RPM ( 5 to 999 RPM ).
- 1 RPM ( 1000 to 9,999 RPM ).
- 10 RPM ( over 10,000 RPM ).
精確度 (Accuracy)
- ± (0.05% + 1 d).
取樣時間 (Sampling Time)
- 1 sec.- over 60 RPM.
範圍選擇 (Range select)
- Automatic.
- when measuring value over 9999 RPM. display will show " x 10 " LED indicator.
操作溫度 (Operating Humidity)
- 0 to 50℃ ( 32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- AC 110V, AC220V, 50/60 Hz ( or 230V internal adjustment ).
電源損耗 (Power Consumption.)
- Approx. AC 16 mA ( AC 110V power).
- Approx. AC 9 mA ( AC 220V/230 power).

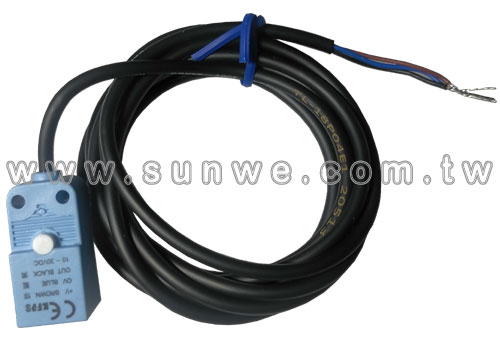

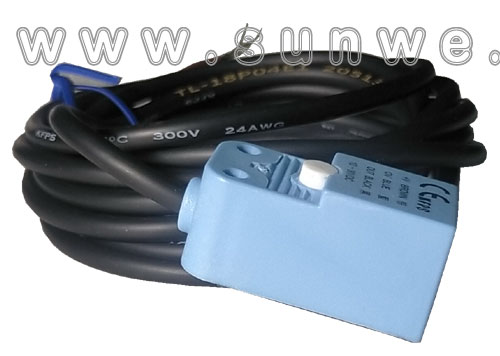

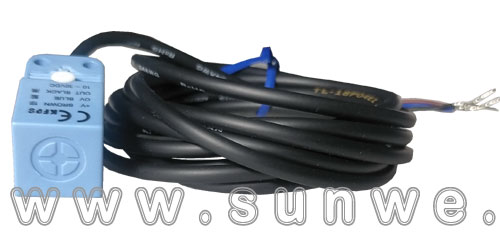

近接開關 PROXIMITY SENSOR, Model : PX-01 ( DT-2240D OPTIONAL SENSOR )
應用 (Application)
- Optional sensor for DT-2240D.
電源供應 (Power supply)
- DC 12V to 24 V.
偵測主體 (Detectable object)
- Metal object ( fenous material ).
偵測距離 (Detecting distance)
- 4 mm.
反應時間 (Response time)
- 600 Hz, max.
電源損耗 (Power consumption)
- Approx. 10 mA.
電纜長度 (Cable length)
- 1 meter.
|
