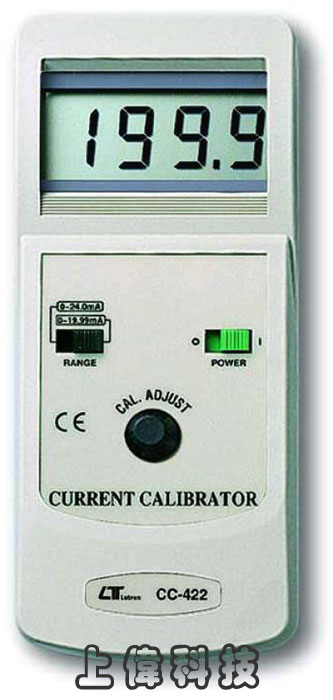

CC-422
4~20mA電流校正器
特色
- 輸出直流電流 : 0 ~ 19.99mA或 0 ~ 24.0mA
- 負載500歐姆,迴路電壓DC12V
- 精確度 :
- 0 ~ 19.99mA ±0.25%
- 0~24mA ±0.5%
- Size：185 X 78 X 38mm
FEATURES
- Provide the quality and accuracy of handheld calibrator of precision current source.
- Portable instrument for calibrating process devices and measuring process signals.
- Adjustable 0-24 mA current source, 2 ranges.
- Current calibrator drives loads up to 500 ohms.
一般規格
顯示 (Display)
- LCD display, max. display counts 1999.
- 13 mm ( 0.5" ) digit size.
功能 (Function)
- mA Current source, 2 ranges.
- 0 - 19.99 mA x 0.01 mA.
- 0 - 24.0 mA x 0.1 mA.
取樣 (Sampling)
- Approx. 0.4 second.
操作溫度 (Operating Temp.)
- 0 to 50℃ (32 to 122℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- DC 9V battery, 006P, MN1604(PP3) or equivalent. Heavy duty or Alkaline type.
重量 (Weight)
- 265 g/0.58 LB ( including battery ).
尺寸 (Size)
- 185 x 78 x 38 mm ( 7.3 x 3.0 x 1.5 inch ).
附件 (Accessories Included)
- Operational manual............................... 1 PC.
- Cable with the alligator pairs ( red & black ), LN-TL421.. 1 PC.
電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃
| Range |
Display Resolution/font> |
Accuracy |
| 0 - 19.99 mA |
0.01 mA |
± ( 0.25 % FS + 1 d ) |
| 0 - 24 mA |
0.1 mA |
± ( 0.5 % FS + 1 d ) |
* FS : full scale
|
