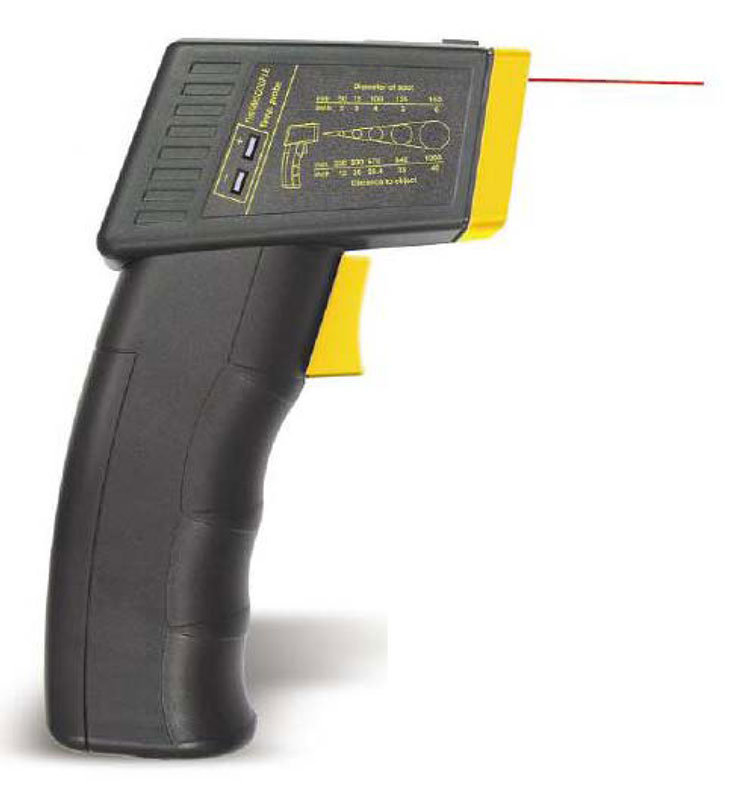

TM-2000
多功能紅外線溫度計
(停產)
特色
- 測量範圍 : IR : -20 ~ 400°C ±3%
- 可外接溫度測棒 PT-100.K.J.T.E.R等Type
- 放射率設定 : 0.20 ~ 1.00
- 距離與量測點比(D:S)=7:1
- 可記錄最大值'最小值及讀值鎖定
- 具有雷射瞄準光點
- RS-232 / USB 連接介面(軟體選購)
- Size:200 X 68 X 30mm
FEATURES
- 3 in 1, Infrared thermometer + Pt 100 ohm thermometer + Thermocouple ( Type K/J/R/E/T ) thermometer.
- The best professional thermometer in the world.
- Microcomputer circuit with high performance.
- Wide temperature measuring range.
- Build in ℃ & ℉ select button on the front panel.
- 0.1 degree resolution for Pt 100 ohm & type K/J/T/E.
- Data hold function for storing the desired value on display.
- Memory function to record the maximum & minimum reading.
- Build in a REL button, useful for relative measurement.
- LCD display with back light.
- Sensor select button on the front panel, easy to change different type probe.
- Infrared thermometer, non-contact temperature measurement, -20 ℃ to 400 ℃ ( -4 ℉ to 752 ℉ ), precise non contact temperature measurement.
- Emissivity adjustment for IR thermometer.
- Laser guide for IR temperature measurement.
- 4 wires PT 100 probe input, cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751, high precision.
- Thermocouple probe accept 5 different types : type K, type J, type R, type T, type E.
- RS 232 data output, easily cooperate with computer.
- Optional data acquisition software for data record.
- Auto power off saves battery life.
- Built-in low battery indicator.
- Heavy duty & compact housing case with stand.
- Operate from 006P DC 9V battery.
- Patent pending in TAIWAN, CHINA, USA, GERMANY......
一般規格
顯示 (Display)
- 51 mm x 32 mm supper large LCD display, 15 mm ( 0.6" ) digit size.
感應器型式 (Sensor Type)
- 1. Infrared thermometer ( Non contact temperature measurement )
- 2. Platinum Pt 100 ohm ( 0.00385 alpha coefficient, meet DIN IEC 751 )
- 3. Thermocouple probe, type K/J/T/E/R
功能 (Functions)
- ℃, ℉, Data hold, Memory ( Max., Min. ), Relative measurement, LCD back light, Emissivity adjustment (IR thermometer).
解析度 (Resolution)
- 1 degree or 0.1 degree.
電路 (Circuit)
- Exclusive microcomputer circuit, the software build in linearity correction function insteadof the traditional hardware circuit.
放射率調整 (Emissivity Adjustment)
- Range : 0.20 to 1.00. Adjustment by pushing button on front panel.
雷射規範 (Laser Guide)
- Red laser light, less than 1 mW, Meet EN60825
感溫棒輸入接頭 (Probe Input Socket)
- Pt 100 ohm probe :
DIN 4 pin socket.
- Thermocouple probe :
Standard 2 pin thermocouple socket.
取樣時間 (Sampling Time)
- Approx. 1 second.
鎖定功能 (Hold Function)
- To freeze the display reading value.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
差距值調整 (Offset Adjustment)
- Available for IR thermometer, Pt 100 ohm & Thermocouple thermometer Adjustment by pushing button on front panel.
過載指示 (Over Indication)
- Show " - - - - ".
資料輸出 (Data Output)
- RS232 PC serial interface.
電源供應 (Power Supply)
- Alkaline or heavy duty type, DC 9V battery, 006P, MN1604 ( PP3 ) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 11 mA ( w/o laser light on ).
- Approx. DC 16 mA ( with laser light on ).
- * Above consumption value is calculated under the function of IR thermometer & without LCD back light.
操作溫度 (Operating Temp.
)
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
重量 (Weight)
- 220 g/0.48 LB.
體積 (Dimension)
- HWD 220 x 68 x 30 mm ( 8.7 x 2.7 x 1.2 inch ).
附件 (Standard Accessory)
- Operational manual..... 1 PC.
選購附件 (Optional Accessory)
- * Temperature probe : TP-01, TP-02A, TP-03, TP-04
- * PT 100 ohm Temp. probe : TP-100
- * RS232 cable ; Model : UPCB-02
- * USB cable, Model : USB-01
- * Application sof Model : SW-U801-WIN
電氣規格
紅外線熱電偶 (Infrared Thermometer)>紅外線熱電偶 (Infrared Thermometer)
解析度/範圍 (Resolution/ranges)
- 0.1℃ : - 20 ℃ to 400 ℃
- 0.1℉ : -4 ℉ to 752 ℉
精確度 (Accuracy)
- ± 3 % of reading or ± 3 ℃( 5 ℉), which ever is greater.
- * Accuracy test under the measurement range within - 10 ℃ to 350 ℃
- * Meter operating temp. within 23± 5 ℃ and the emissivity value of measurement target set to 0.95.
- * Spec. tested under the 20 cm dia. black body, the measuring distance from the probe sensing Head is 30 cm.
溫度感應器 (Temp. Sensor)
- Thermocouple pie.
放射率設定 (Emissivity Setting)
- * By push button. Setting range : 0.20 to 1.00.
- * The default emissivity value is 0.95, which will cover 90% of a typical application.
測量波長區域 (Measurement Wave length Region)
- 6 to 12 micro meter.
距離因素 (Distance Factor)
- D/S : Approx. 7:1. (D - Distance, S - Spot.)
熱電偶 ( type K/J/R/E/T ) 感溫棒 Thermocouple ( type K/J/R/E/T ) Thermometer
Type |
Resolution |
Range |
Accuracy |
Thermocouple type K |
0.1 ℃ |
-100.0 to -50.0 ℃ |
± (0.2%+1℃) |
0.1 ℃ |
-49.9 to 1300.0 ℃ |
± (0.2%+0.5℃) |
0.1 ℉ |
-148.0 to -58.0 ℉ |
± (0.2%+1.8℉) |
0.1 ℉ |
-57.9 to 2372.0 ℉ |
± (0.2%+1℉) |
Thermocouple type J |
0.1 ℃ |
-100.0 to -50.0 ℃ |
± (0.2%+1℃) |
0.1 ℃ |
-49.9 to 1150.0 ℃ |
± (0.2%+0.5℃) |
0.1 ℉ |
-148.0 to -58.0 ℉ |
± (0.2%+1.8℉) |
0.1 ℉ |
-57.9 to 2102.0 ℉ |
± (0.2%+1℉) |
Thermocouple type T |
0.1 ℃ |
-100.0 to -50.0 ℃ |
± (0.2%+1℃) |
0.1 ℃ |
-49.9 to 400.0 ℃ |
± (0.2%+0.5℃) |
0.1 ℉ |
-148.0 to -58.0 ℉ |
± (0.2%+1.8℉) |
0.1 ℉ |
-57.9 to 752.0 ℉ |
± (0.2%+1℉) |
Thermocouple type E |
0.1 ℃ |
-100.0 to -50.0 ℃ |
± (0.2%+1.3℃) |
0.1 ℃ |
-49.9 to 900.0 ℃ |
± (0.2%+0.8℃) |
0.1 ℉ |
-148.0 to -58.0 ℉ |
± (0.2%+2.8℉) |
0.1 ℉ |
-57.9 to 1652.0 ℉ |
± (0.2%+2℉) |
Thermocouple type R |
1 ℃ |
0 to 600 ℃ |
± (1 %+5℃) |
1 ℃ |
601 to 1700 ℃ |
± (1.5%+5℃) |
1 ℉ |
32 to 1112 ℉ |
± (1 %+10℉) |
1 ℉ |
1113 to 3092 ℉ |
± (1.5 %+10℉) |
Remark :
- a. Accuracy value is specified for the meter only.
- b. Accuracy is tested under the meter's environment temperature within 23 ± 5℃.
- c. Linearity Correction : Memorize the thermocouple's curve into the intelligent CPU circuit,
PT 100 歐姆 白金熱電偶 Platinum PT 100 ohm Thermometer
Resolution |
Range |
Accuracy |
0.1 ℃ |
-200.0 to 850.0 ℃ |
± ( 0.2 % + 0.5 ℃ ) |
0.1 ℉ |
-328.0 to 1562.0 ℉ |
± ( 0.2 % + 1.0 ℉ ) |
Remark :-
a. Accuracy value is specified for the meter only.
- b. Accuracy is tested under the meter's ambient temperature within 23 ± 5℃.
- c. Linearity Correction : Memorize the Pt 100 ohm's curve into the intelligent CPU circuit.
- d. Pt 100 probe input, cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751.
- e. Input socket : DIN 4 pin socket.
- f. 4 wires Pt 100 ohm probe ( model : PT-100 ) is optional.
|
