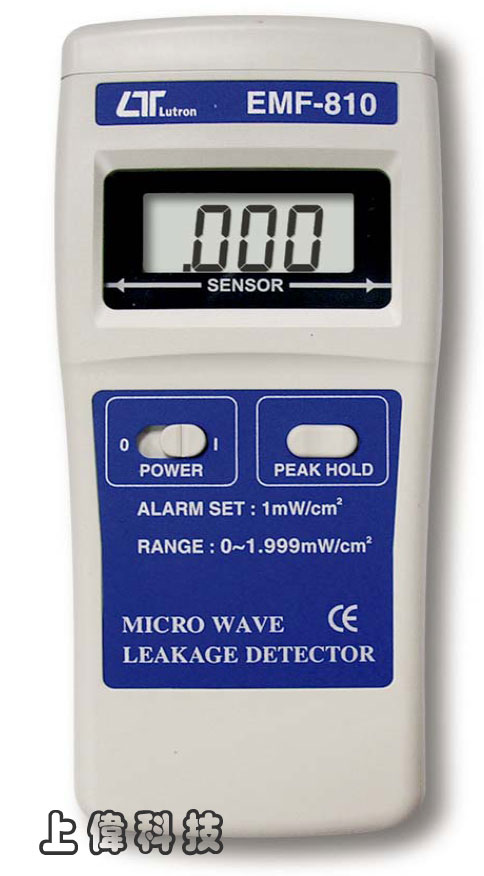

EMF-810
高頻電磁波測試器
簡介
- 測量範圍： 0.1 ~ 1.999 mW/cm²
- 測量頻率：30MHz ~ 3GHz
- 校正頻率點： 2.45 GHz ± 50MHz
- 最大值鎖定功能
- 警報告知：讀值 > 1 mW/cm² 警報聲響
- 能偵測微波爐、電器產品......等
- Size：152 X 69 X 37mm
特色
- EMF-810高頻電磁波測試器是為精確測量或監視微波頻率內的電磁數值。
- 通常是檢測微波爐的洩漏量。
- 內建警報設定，當測量值>1 mW/cm2，蜂鳴器將發出聲音提醒被測量的設備微波EMF值(洩漏值)。
- 儀表校驗在2.45 GHz頻率水平。
- 最大值鎖定功能。
- 電源可由 006P 9V 電池及 DC 9V 變壓器提供。
- 除了測量微波EMF值， 檢測器也能測量醫院設備， 雷達， 輻射運轉，電視天線，廣播電台，焊接設備，烘焙設備，電視，電腦，工廠，實驗室和其他環境等等的EMF電磁波。
FEATURES
- This meter is specially designed for measuring or monitoring electromagnetic field value for the micro-wave frequency precisely.
- Useful equipment to detect the leakage of micro wave oven.
- Build in alarm setting, when the measuring value > 1 mW/cm^2 , the buzzer will sound to remind that the measured device's micro wave EMF value ( leakage value ) is larger than the safety level.
- The meter have been calibrated precisely on the frequency value 2.45 GHz.
- Peak hold function to latch the max. measuring value.
- Powered by 006P 9V battery and DC 9V adapter.
- Except to measure the micro wave's EMF value, the detector also can measure the radio EMF value of hospital equipment, radar, radiation work, TV antenna, Radio station , welding equipment , baking- equipment, television , computer , factory, laboratory , and other environment...etc for reference.
規格
顯示 (Display)
- LCD size : 40 mm x 25 mm. ; Digit size : 12 mm x 6 mm.
測量單位 (Measurement Unit)
- mW/cm^2
操作頻率範圍 (Operating Frequency Range)
- 2.45 GHz ± 50 MHz
- * Beyond the 2.45 GHz ± 50 MHz, other frequency's EMF value between 30 MHz to 3 GHz also can be measured, but for reference only.
測量範圍 (Measurement Range)
- 0 to 1.999 mW/cm^2
精確度 (Accuracy)
- Accuracy tested under 2.45 GHz ± 50 MHz and measurement level is 0.1 mW/cm^2.
峰值鎖定 (Peak Hold)
- To latch the max. measuring value.
警報設定 (Alarm Setting)
- If reading value > 1 mW/cm^2 approximately, the buzzer will sound.
感應器空間長度 (Sensor Space Length)
- 50 mm.
過載指示 (Over Indicator)
- Display shows " OL ".
工作電流 (Power Current)
- Approx. DC 1.86 mA.
重量 (Weight)
- 202 g/ 0.445 LB.
體積 (Dimension)
- 152 x 69 x 36.3 mm. (6.0 x 2.7 x 1.4 inch).
標準附件 (Standard Accessory)
- Operation Manual..................... 1 PC.
選購附件 (Optional Accessory)
- Soft carrying case, CA-52A.
|
