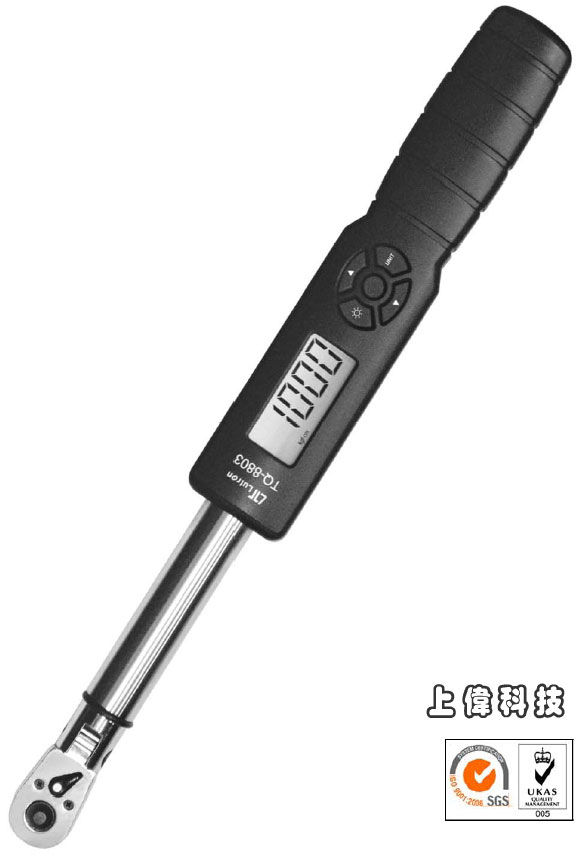

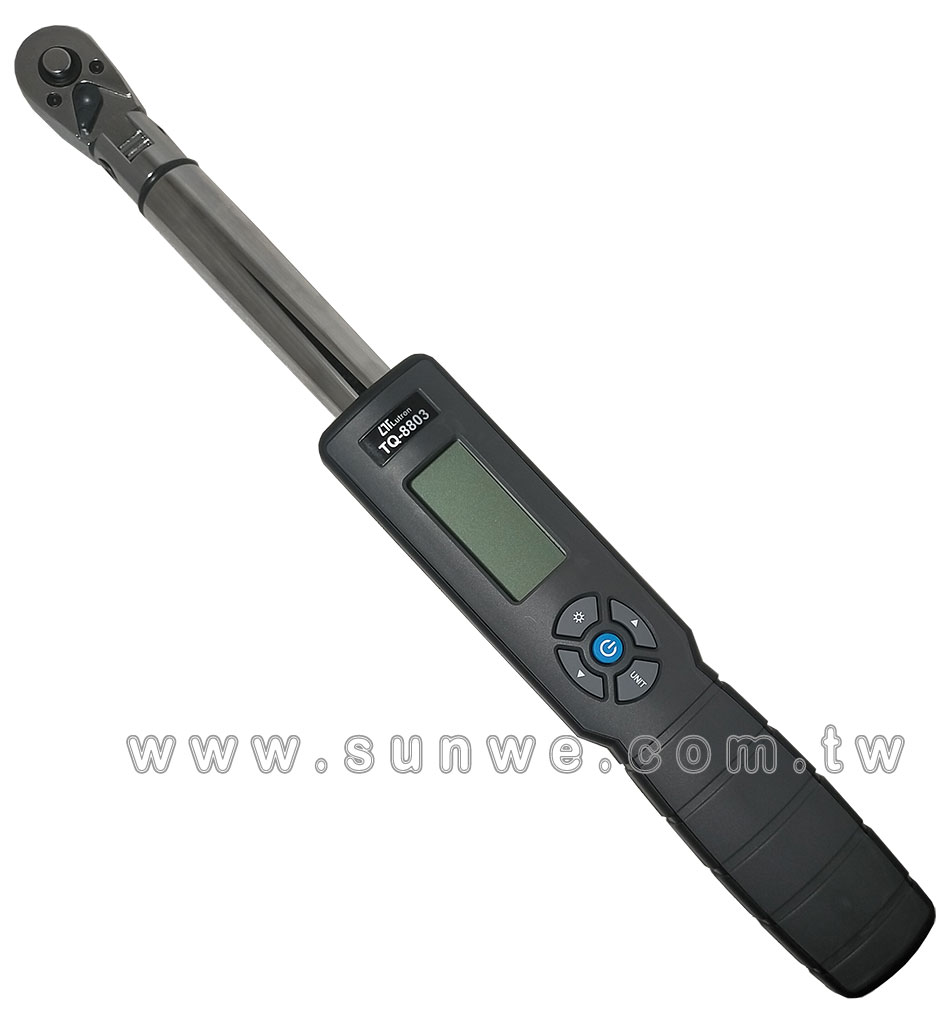

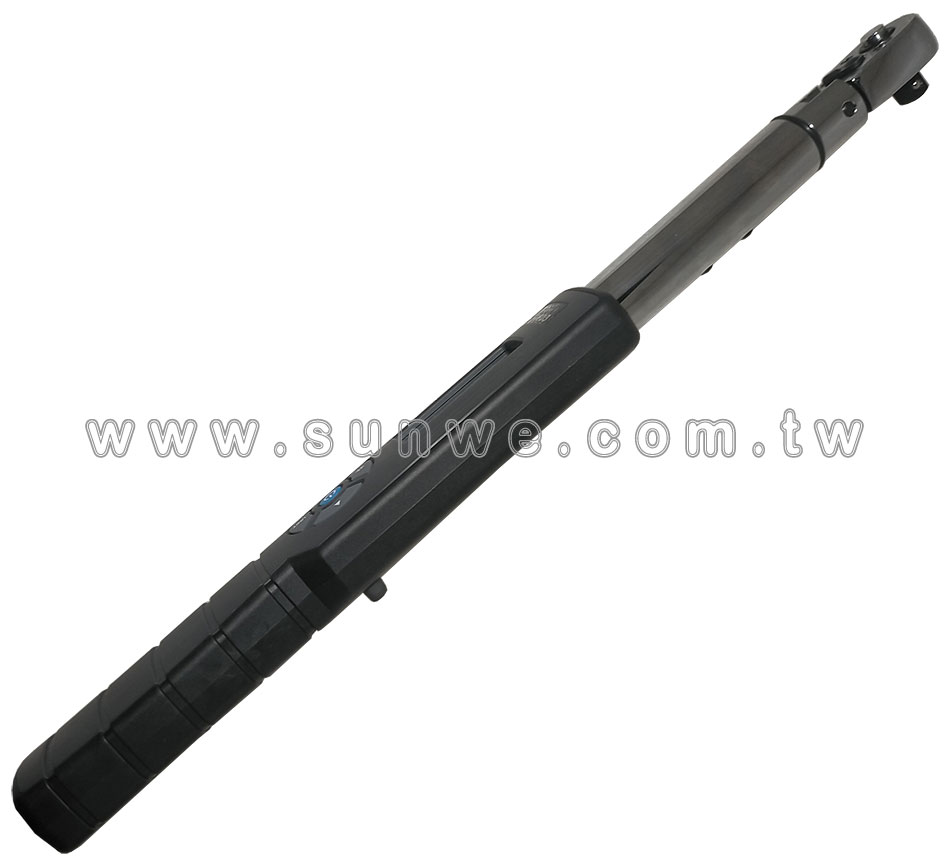

TQ-8803
電子式扭力板手
特色
- 測量範圍 : 50~1000 公斤/公分
- 三種單位選擇 : 公斤/公分,磅/吋,牛頓/公分
- 精確度 : ±1% F.S.
- 警報值設定及蜂鳴警示功能
- 測量值鎖定及背光顯示功能
- 測頭尺寸 : 正方形 3/8 吋 (9.53mm)
- Size : 450 x 55 x 37mm
FEATURES
- Professional and Heavy duty torque wrench.
- Max. meaurement capacity:
1000 Kgf-cm, 868 lbf-inch, 9,810 Newton-cm.
- Unit : Kgf-cm, lbf-in ( lbf-inch ) and N-cm ( Newton-cm ).
- Auto data hold function to freeze the last measurement reading.
- LCD display with backlight, easy readout.
- Alarm value setting with beeper sound.
- Size of square drive : 3/8 inch square ( 9.53 mm square ).
- LCD display with backlight, easy readout.
- Auto shut off circuit to save battery life,
- Microcomputer circuit, high performance.
- Metallic heavy duty & compact housing case.
- Power supply :
DC 1.5V battery ( UM-4, AAA ) X 4 PCs.
一般規格
顯示 (Display)
- 57 mm x 25 mm LCD display.
測量功能 (Measurement function)
- Torque value, Auto data hold. Alarm beeper setting.
測量單位 (Measurement unit)
- Kgf-cm
- lbf-inch
- Newton-cm.
- * Kgf : Kg-force, lbf : pound-force

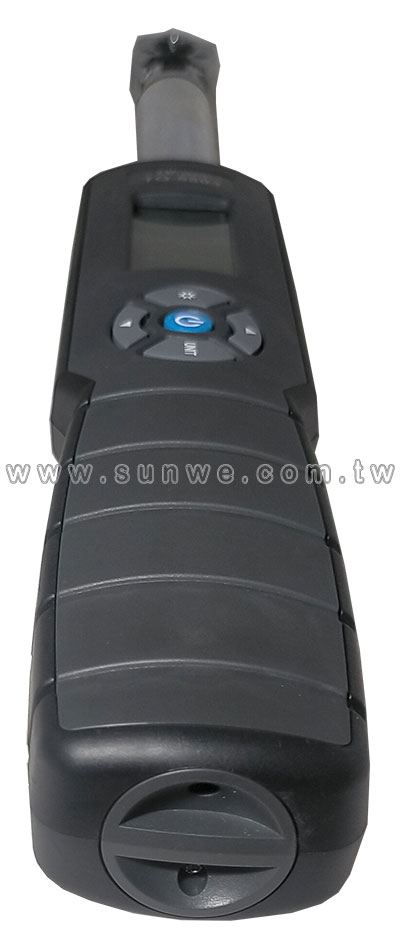

功能鍵 (Function buttons)
- 5 buttons :
- Power button
- Backlight button
- Unit button
- ▲ button ( for alarm setting )
- ▼ button ( for alarm setting )
感應器 (Sensor)
- Exclusive torque sensor.
電路 (Circuit)
- Exclusive microprocessor LSI-circuit.
▼, ▲ 按鍵 (▼, ▲ button)
- For alarm value setting.
資料鎖定 (Data hold)
- Freeze the desired reading.
背光鍵 (Backlight button)
- To switch on/off the LCD backlight.

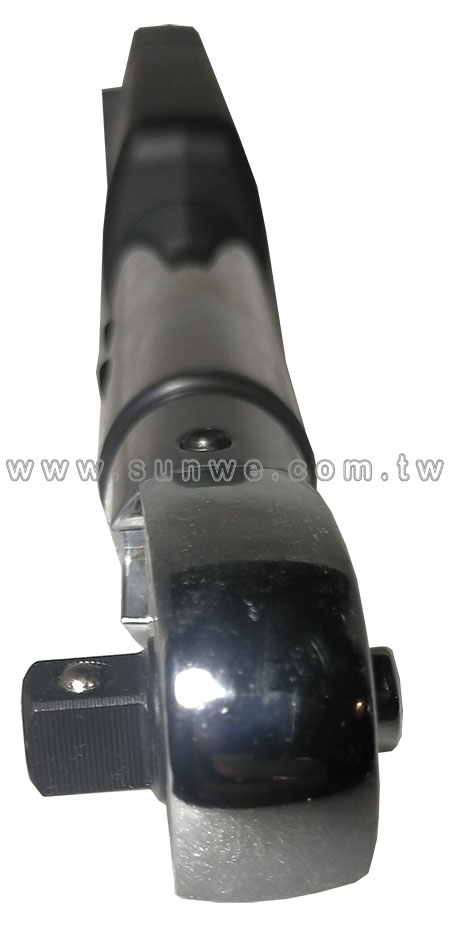

方型轉換頭大小 (Size of square drive)
- 3/8 inch square ( 9.53 mm square ).
關機 (Power off)
- Auto shut off saves battery life or manual off by push button.
電源供應 (Power Supply)
- Alkaline or heavy duty type DC 1.5 V battery ( UM-4, AAA ) x 4 PCs.
電源損耗 (Power Consumption)
- Approx. DC 5 mA ( baklight off ).
重量 (Weight)
- 1050 g ( 2.3 LB ).
體積 (Dimension)
- 450 x 55 x 37 mm ( 12.2 x 2.0 x1.8 inch ).

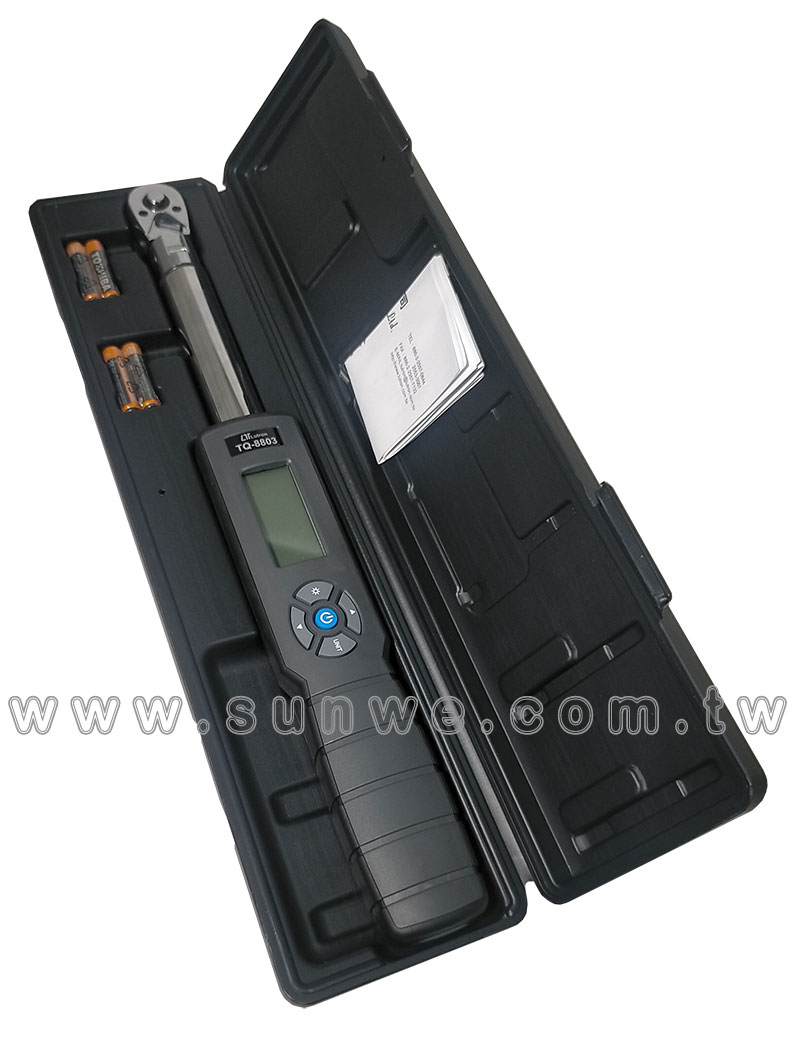

附件 (Standard Accessory)
- Instruction manual........... 1 PC.
電氣規格 ELECTRICAL SPECIFICATIONS
( 23 5 ℃ )
| Display Unit |
Measuing range |
Resolution |
Accuracy |
| Kg-cm |
50 to1000 Kgf-cm |
1 Kgf-cm |
± 2% F.S.@ From 10% to 100 % of full scale . ± ( 2% reading + 5 d )@ Less than 10 % of full scale. |
| LB-inch |
43 to 868 lbf-inch |
1 lbf-inch |
| Newton-cm |
490 to 9810 N-cm |
2 N-cm |
|
