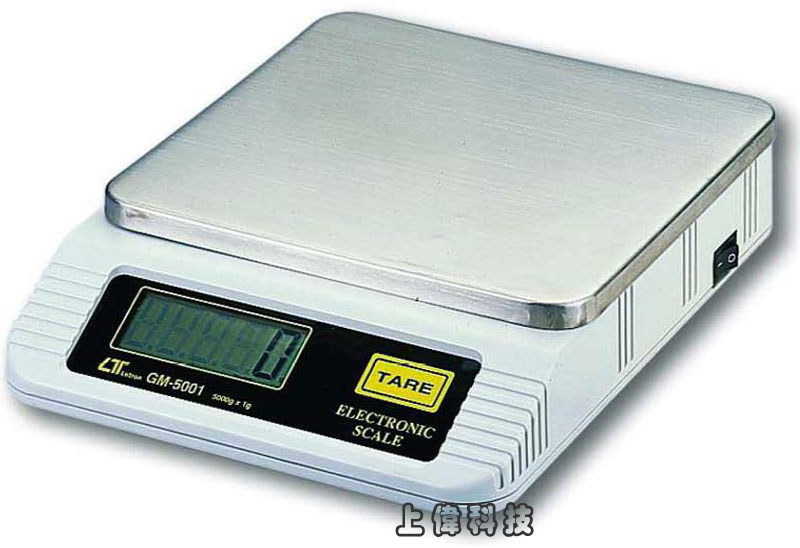

GM-5001

數字磅秤

特色

秤量範圍 : 3 ~ 5000公克

解析度 : 1公克

精確度 : ±0.3%

具有扣重'歸零功能

公克/盎司單位切換

Size : 240 x 185 x 50mm

FEATURES

Microprocessor circuit with high accuracy & better performance.

High resolution & wide measuring capacity, 5,000 g x 1 g.

Large LCD display, 18 mm ( 0.7" ) digit size, easy read out.

Built-in gram & oz display unit, select by the internal slide switch.

GM-501 built-in self calibration system, high precision.

Heavy duty ABS housing plastic case.

規格

顯示 (Display)

LCD, 18 mm ( 0.7" ) digit size

5 digits with annunciator.

測量容量 (Measuring Capacity)

5,000 g

解析度 (Resolution)

1 g

最低顯示重量 (Min. Display Weight)

3 g

單位選擇 (Unit select)

g or oz, select by internal slide switch.

精確度 (Accuracy)

± ( 0.3 % +1 d )

After the moment when the self-calibration be executed.

取樣時間 (Sampling time)

Approx. 0.8 second.

容器重量控制 (Tare Control)

Full capacity.

轉換器 (Transducer)

Load cell.

電路 (Circuit)

Microprocessor circuit.

操作溫度 (Operating Temp. )

0 to 50 ℃.  (32 to 122 ℉ ).

操作溼度 (Operating Humidity)

Less than 80% R.H.

尺寸 (Size)

Cabinet : 250 x 188 x 70 mm

Platform: 185 x 185 mm.

電源供應 (Power Supply)

6 x 1.5V AA (UM-3) batteries, or DC 9V adapter.(not included).

電源損耗 (Power Consumption)

 Approx. DC 27 mA

附件 (Standard Accessory)

Operating manual .................... 1 PC.

　
