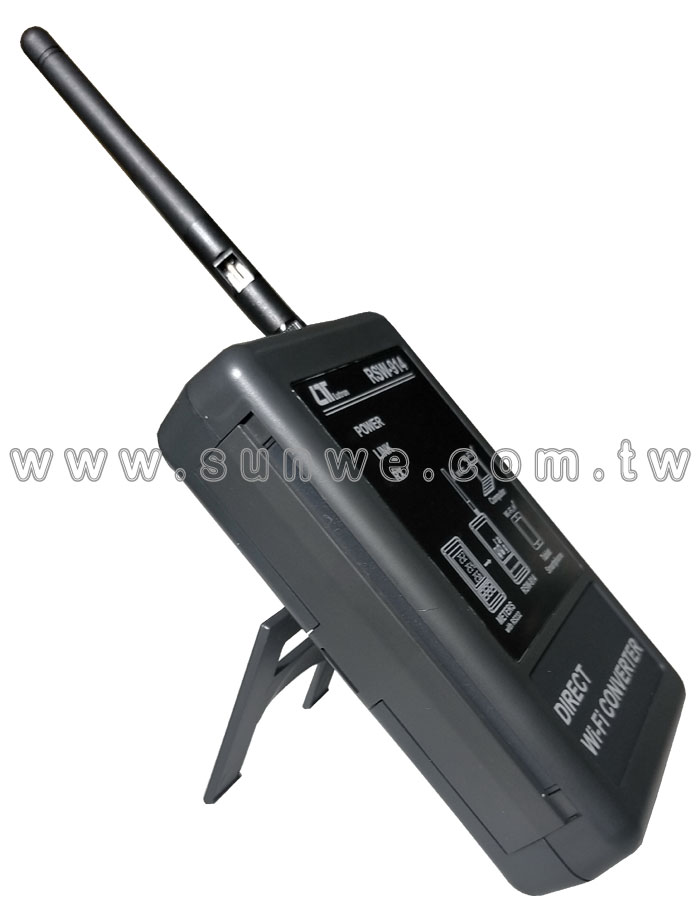

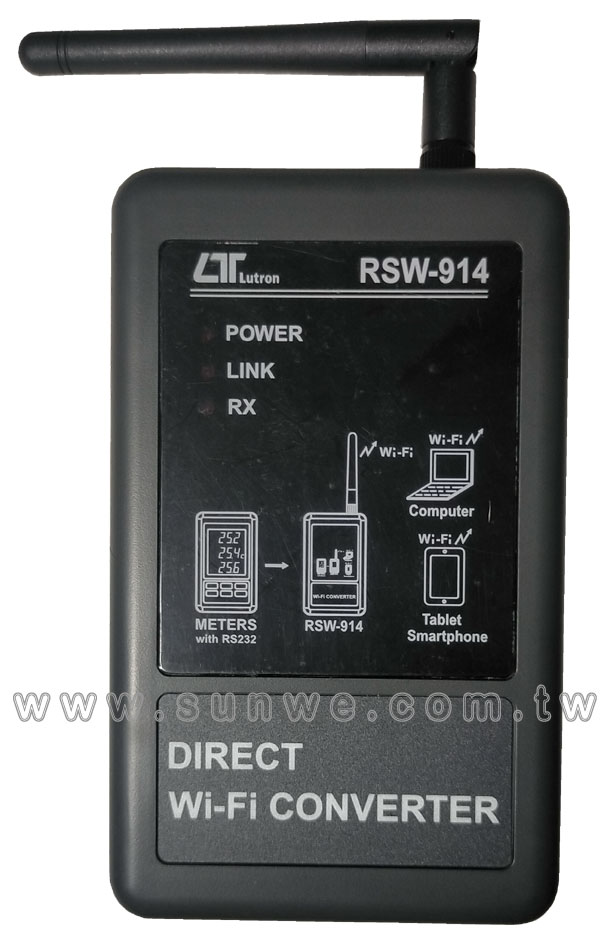

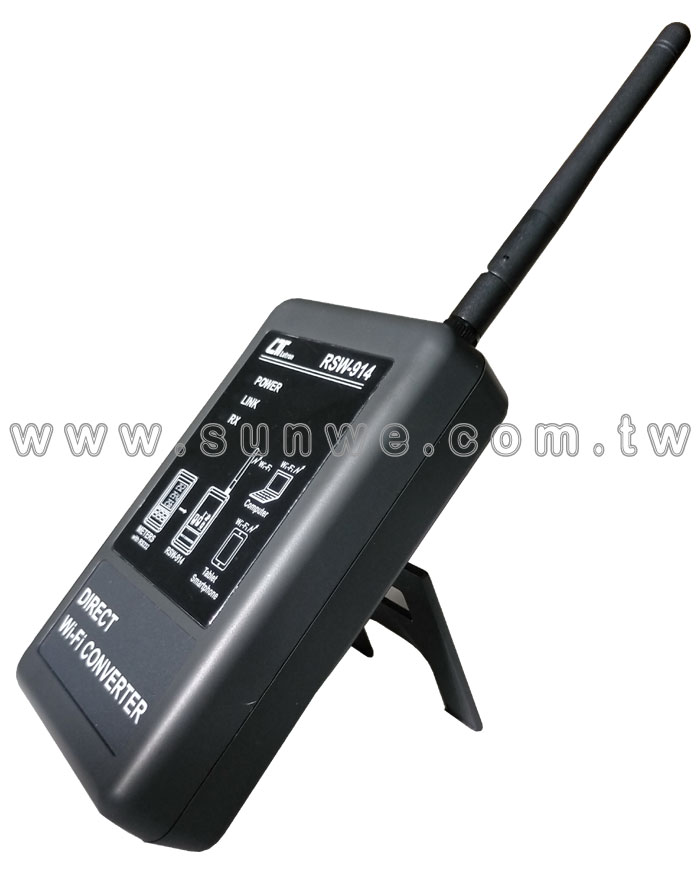

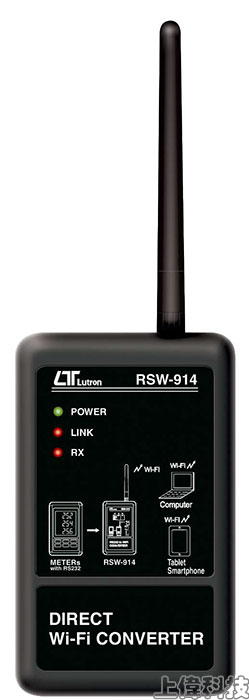

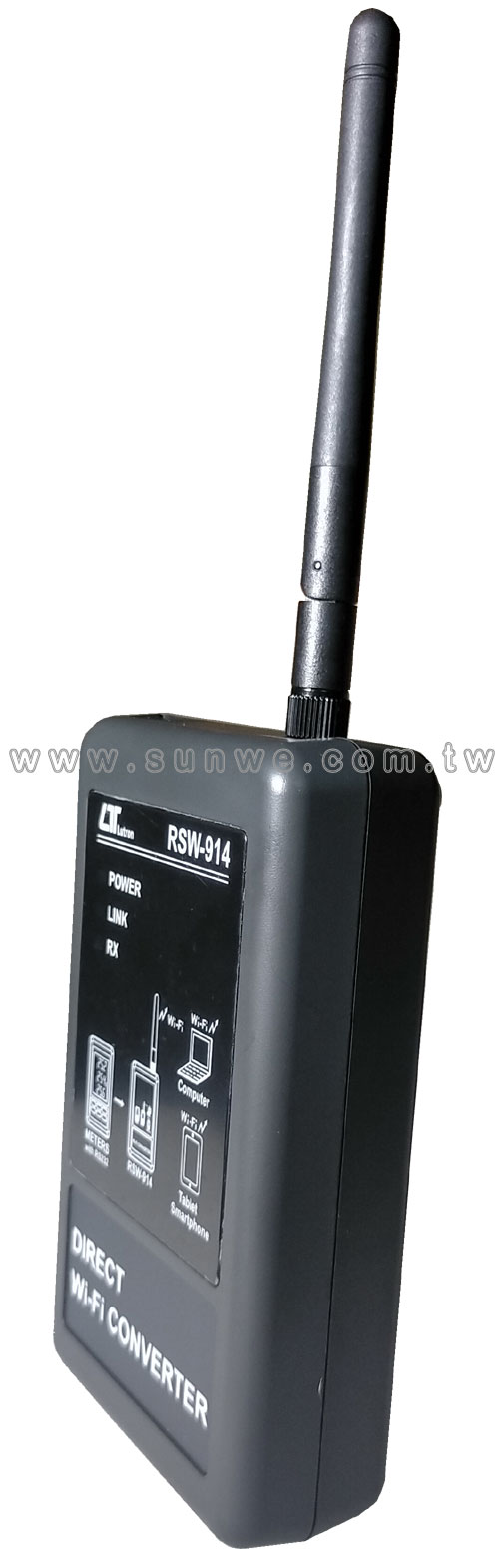

RSW-914
RS232 轉 Wi-Fi 轉換器
簡介
- 適用 LTURON 具有 RS232 輸出介面之儀表
- 即時將儀表 RS-232 訊號轉 Wi-Fi 無線傳輸
- 僅支援 1台儀表，最多 12通道 (顯示值) 傳輸
- 選擇 RSW-914 的無線網絡 SSID，可以監視測量值、
高／低報警、通過短信或電子郵件發送警告信息
- 可搭配 LUTRON 專屬手機
APP程式接收，Android/IOS 皆可使用
- 可用智慧型手機、筆電、平板電腦接收 Wi-Fi 訊息
- Size：134 X 80 X
32mm
FEATURES

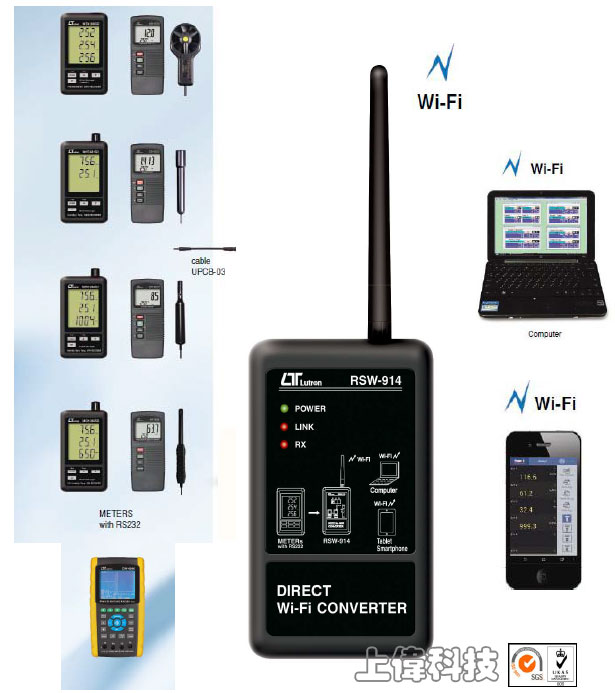

- When LUTRON meter with RS232 interface is connected to RSW-914, the meter can share data via WiFi technology. Therefore, personal devices, like desktop, laptop, smart phone, tablet... with WiFi function can be read the measuring data via WiFi. For example if factory installs Power analyzer DW-6095 along with RSW-914, then operator can monitor the power information ( measuring value ) via WiFi network with safety.
- Allow 1 meter and max. 12 channels ( the total ch. no. ) input.
- Easy operation, no setting requirement in the RSW-914 are required, just connecting the RSW-914 to RS232 meter and power ON only.
- APP ( Android ) and APP ( IOS ) are available.
- After smart phone or tablet install the APP, following to select the WiFi SSID of RSW-914 then user can monitor the measurement value, log, High/Low alarm or send the warning message out via SMS or Email.
- WiFi work mode: Access Point(AP) mode
- I/O terminal:
- 1. DC 9V power input
- 2. DC 9V power output(power supply for the connecting RS232 meter)
- 3. One RS232 input(photo isolate RS232 type)
- Maximum TCP connections to 20
規格
電路 (Circuit)
- Custom single-chip microprocessor LSI circuit
顯示 (Display)
- LCD Size: 3.2 X 2.4" (60 X 44.4 mm)
- Dot Matrix backlit LCD (128 X 64 pixels)
無線 (Wireless)
- * Support IEEE 802.11b / g / n wireless
standards.
- * Support the range of frequency :
2.412 to 2.484 GHz.
- * Support wireless networks: Access Point(AP)
輸入訊號 (Input signal)
- One isolated RS232 signal input
無線設定模式 (Wireless mode setting)
- Access Point (AP) Mode
操作溫度 (Operating Temp.)
- 0 to 50℃ ( 32 to 122℉ ).
操作溼度 (Operating Humidity)
- Less than
80% R.H.
電源供應 (Power Supply)
- AC to DC
adapter 9V.
電源消耗 (Power Consumption)
- DC 200 mA
approximately.
重量 (Weight)
- 170 g/0.375
LB.
體積(Dimension)
- 134 X 80 X
32 ( 5.3 X 3.1 X 1.3 inch ).
- * Dimension
is for the meter without antenna only.
附件 (Accessories Included)
- *
Instruction
manual.................1 PC
- * Data interface cable, UPCB-03..... 1 PC
- * Power interface cable, PWCB-06.... 1 PC
- * Hanging unit ( with sticker )..... 1 PC
- * AC to DC 9V power adapter..........1 PC
選購附件 (Optional
accessories)
- * Full line LUTRON
RS232 meters.
|
