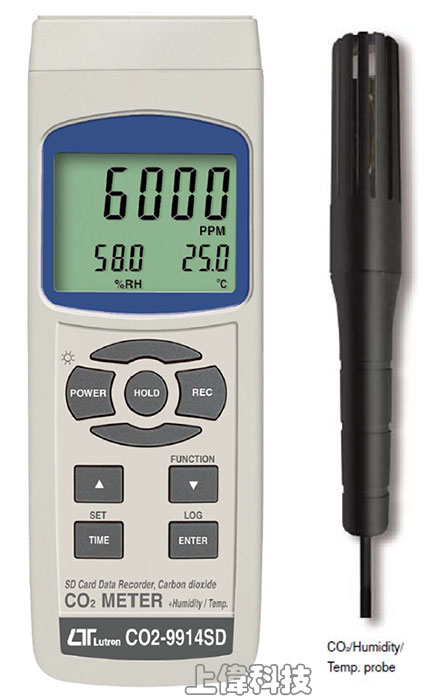

CO2-9914SD
記憶式二氧化碳/溫濕度計

簡介
- 即時測量數據可記錄儲存於SD記憶卡,資料可下載到Excel做圖表分析,SD記憶卡可支援1GB~16GB記憶卡容量.(記憶卡選購)
- 二氧化碳測量範圍: 0~10000ppm
- 溫度範圍: 溫度0~50.0℃
±0.8℃
- 溼度範圍: 5%~95%(RH)
±3 %
- 露點溫度: -25.3~48.9℃
- 可記錄最大值、最小值及讀值鎖定
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 177 x 68 x 45mm
FEATURES
- Real time recorder, save the data into the SD memory card and can be down load to the Excel, extra software is no need. User can make the further data or graphic analysis by themselves. under the Excel software.
- At the same time, the SD memory card can record `1
probe 4 Function data ( CO2/Temp. , %RH/Temp. /Dew /Wet ) two group analog data
with the time information into the one Excel file at the same time.
- Manual datalogger is available, during execute the manual datalogger function, it can set the different location no. ( position 1 to position 99 ).
- Air quality measurement application, multi-function :
CO2 (Carbon dioxide ), Humidity/Dew/Wet , temperature measurement.
- CO2 range : 0 to 10,000 ppm x 1 ppm.
- Humidity range: 10 to 95 %RH.x 0.1 % RH
- Dew point Temp. and Wet bulb Temp. measurement.
- Temp. range : 0 ℃ to 50.0℃
- CO2 sensor : NDIR, long term reliability.
- Humidity sensor : Precision capacitance sensor
- Alarm setting with the beeper sound output.
- Sampling time for data recorder is 2 seconds to 8 hours.
- Complete set with 1 probes :
- CO2/Temp.,Humidity/Temp probe , main meter and the
hard carrying case.
- Separate probe, easy for remote measurement.
- Meter can cooperate with 2 GB to 16 GB SD card, SD card is optional.
- RS232/USB computer interface.
- Patented.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- LCD with green backlight ( ON/OFF ).
測量 (Measurement)
- CO2 (Carbon dioxide )
- Humidity
- Dew point Temp., Wet bulb Temp.
- Temperature
感應器結構 (Sensor Structure)
- CO2: NDIR
- * Nondispersive infrared sensor
- Humidity:Precision capacitance sensor
- Temp.:Precision thermistor
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 2 sec to 8 hour 59 min. 59 sec.
- @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second.
- @ Manual mode, can also select the 1 to 99 position ( Location ) no.
資料錯誤 no. (Data error no.)
- 0.1% of total saved data max.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting) @ main setting
- * SD memory card Format
- * Set clock time
- * Set sampling time
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Decimal point of SD card setting
- * Temp. unit setting
- * Alarm value setting
- * Altitude value setting
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (Power Current)
- CO2 measurement:
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 12.5 mA.
- When SD card save the data and LCD Backlight is
OFF) : Approx. DC 42.5 mA.
- Humidity measurement:
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 10.5 mA.
- When SD card save the data and LCD Backlight is OFF) : Approx. DC 40 mA.
- * If LCD backlight on, the power consumption will increase approx. 12 mA.
操作溫度 (Operating Temp.)
- 0 to 50℃ . ( 32 to 122℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
重量 (Weight)
- 350 g/ 0.77 LB.
體積 (Dimension)
- Meter:177 x 68 x 45 mm
- CO2/Humidity probe:length 175 mm x ∮28.
附件 (Standard Accessory)
- Instruction manual...............1 PC
- Hard carrying case, CA-08........1 PC
- CO2/Humidit probe............... 1 PC
選購附件 (Optional & accessories Temp. Probe)
- SD Card ( 4 GB )
- AC to DC 9V adapter.
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data Acquisition software, SW-U811-WIN.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
CO2 ( Carbon dioxide )
CO2 ( Carbon dioxide ) |
Range |
0 to 10,000 ppm |
Resolution |
1 ppm |
Accuracy |
≦1,000 ppm: ± 40 ppm |
> 1,000 ppm ≦ 3,000 ppm:50 ppm + 3% of reading |
> 3,000 ppm reference only:50 ppm + 5% of reading |
Repeatability |
≦ 3,000 ppm:± 20 ppm |
Temperature |
Range |
0℃ to 50℃ , 32℉ to 122℉ |
Resolution |
0.1 degree |
Accuracy |
℃ : ± 0.8 ℃
℉ : ± 1.5℉ |
Humidity/Temperature
Humidity |
Range |
5 % to 95 % R.H. |
Resolution |
0.1 % R.H. |
Accuracy |
≧ 70% RH : ± (3% reading + 1% RH). |
< 70% RH : ± 3% RH. |
Temperature |
Range |
0℃ to 50℃ , 32℉ to 122℉ |
Resolution |
0.1 degree |
Accuracy |
℃ : ± 0.8 ℃
℉ : ± 1.5℉ |
Dew Point Temp. ( Humidity )
℃ |
Range |
-25.3℃ to 48.9℃ |
Resolution |
0.1℃ |
℉ |
Range |
-13.5℉ to 120.1℉ |
Resolution |
0.1℉ |
Remark :
- * Dew Point display value is calculated from the Humidity/Temp. measurement automatically.
- * The Dew Point accuracy is sum accuracy value of Humidity & Temperature measurement..
Wet bulb Temp. ( Humidity )
℃ |
Range |
-21.6℃ to 50.0℃ |
Resolution |
0.1℃ |
℉ |
Range |
-6.9℉ to 122.0℉ |
Resolution |
0.1℉ |
Remark :
- * Wet bulb display value is calculated from the Humidity/Temp. measurement automatically.
- * The Welt bulb accuracy is sum accuracy value of Humidity & Temperature measurement..
