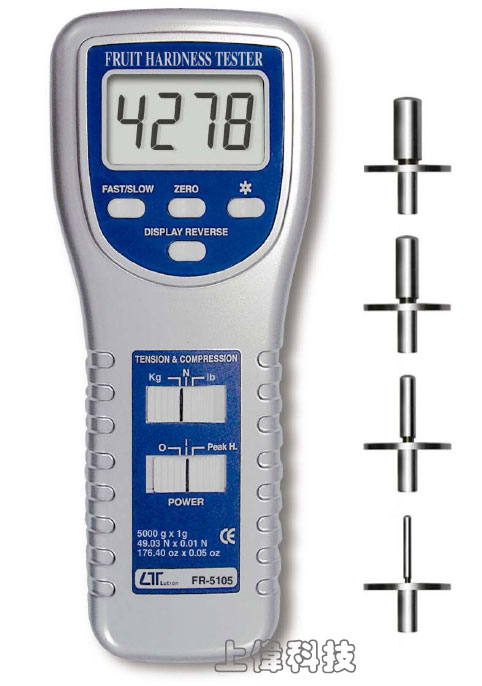

FR-5105
果實硬度計
特色
- 該測試儀用於測量蘋果，梨，草莓，葡萄，大/硬果，小/軟果等大多數種類水果的硬度。
適用於水果科研部門，果品公司，果農場，農業院校，以果實硬度提高果品質量，收穫貯藏，產品運輸......。
有效測試來判斷水果的成熟程度。
- 5位數液晶顯示器,字高16mm.
- 正面或倒轉顯示功能選擇.
- 壓力測量,最大值鎖定.
- 將測量中之最大值固定於顯示器上.
- 歸零按鍵,能將操作測量之顯示值作歸零動作.(最大值鎖定歸零)
- 測量能力：5000公克/176.40盎司/49.03牛頓.
- 解析度：1公克/0.05盎司/0.01牛頓.
- 最小顯示重量：3公克/0.10盎司/0.03牛頓.
-
精確度：±(0.4%+1位數)
-
單位選擇：公克/盎司/牛頓.
-
資料更新時間：快:約0.2秒.／慢:約0.6秒.
-
過載指示：顯示器出現"— — — —"符號.
-
過載保護：最大保護7公斤.
-
歸零能力：最大為滿刻度歸零.
-
獨特的荷重感應器.
-
外觀尺寸：215×90×45mm.(8.5×3.5×1.8inch)
- 重量：650公克.(1.431磅)
- 資料輸出：RS-232電腦連接介面.
- 標準附件：
- 操作說明書…………1本.
- 攜帶盒………………1只.
- 11mm型測頭…………1只.
- 8mm 型測頭…………1只.
- 6mm 型測頭…………1只.
- 3mm 型測頭…………1只.
- 選購附件：
- 測試台型號:FS-1001
- 軟體SW-U801.
- 連接線UPCB-01,USB-01.
FEATURES
- The tester is used to measure the hardness of most kind
fruits such as apple, pear, strawberry, grape, large/hard
fruits, small/soft fruits. It is suitable for the fruit
scientific research department, fruit company, fruit farm,
agriculture colleges and universities to improve the fruit
quality, the harvest storage, the product
transportation...by the fruits' hardness. The useful tester
to judge fruit's mature degree.
- Max. capacity : 5000 gf x 1 gf.
- Unit : g/oz/Newton.
- Use load cell sensor, high precision.
- Digital display with Peak hold function, easy measurement.
- Tension or Compression, Zero.
- Positive/ Reverse display.
- Large LCD display with back light.
- Tip size :
3 mm, 6 mm, 8 mm, 11 mm.
- RS-232/USB computer interface.
-
Complete set with hard carrying case and 4 kind tips ( 3 mm, 6 mm, 8 mm, 11 mm ).
-
Test stand, FS-1001, optional.
-
USB cable ( USB-01) and the data acquisition are optional.
-
Peak hold ( Max. load ) can be held in display during make the measurement.
-
Zero button can operate both for normal measuring & the " peak hold " operation.
-
Full capacity zero (tare) control capability.
-
Fast/Slow response time push button.
- Hand held & stand mounted gauges are available.
- Low power consumption gives long battery life.
- Microprocessor circuit & exclusive load cell transducer.
- Over load protection.
- Built-in DC 9V power adapter input socket.
- Range of 0 to 1 Kg ( Appropriate for fruits such as grapes or cherries.... ), with the 6 mm diameter sensor ( FRTP-6 ).
- Range of 0 to 5 Kg ( Appropriate for fruits such as plums, lemons and other medium hard fruits.... ), with the 6 mm diameter sensor ( FRTP-6 ) or the 8 mm diameter sensor diameter sensor ( FRTP-8 ).
規格
主要 (Principal)
- The hardness of Fruit can express by the unit area ( S ) could undertake the pressure of dynamometer ( N) , their specific value is just as the hardness ( P ).
- P = N / S
- P = Hardness value of fruit ( Kg/cm^2 )
- N = Pressure of dynamometer ( N, Kg, LB )
- S = Area of pressure ( m^2, cm^2 )
顯示 (Display)
- LCD ( Liquid crystal display ).
- 5 digits, 16 mm ( 0.63" ) digit size.
- Back light.
顯示方向 (Display Direction)
- Positive or Reverse direction, select by the push button on the front panel.
功能 (Function)
- Tension & Compression (Push & Pull). Normal force, Peak hold ( Max. load ).
峰值鎖定 (Peak hold)
- Will freeze the display value of the Peak load ( Max. load ).
歸零 (Zero)
- Zero button can be operated both for "normal force" or "peak hold" operation
單位選擇 (Unit select)
- g/oz/Newton
測量容量 (Measurement Capacity)
- 5,000 g/176.40 oz/49.03 Newton.
解析度 (Resolution)
-
1 g/0.05 oz/0.01 Newton.
最小顯示 (Min. Display)
-
3 g/0.10 oz/0.03 Newton.
精確度 (Accuracy)
-
± ( 0.4 % + 1 digit ), within 23± 5
-
* Under the test weight on 3000 g & 5000 g.
更新時間 (Update time)
-
Fast Approx. 0.2 second.
-
Slow Approx. 0.6 second.
過載指示 (Over range Indicator)
-
Display show " - - - - " when in over range status
資料輸出 (Data output)
- RS-232 serial computer interface
過載容量 (Overload Capacity)
- Max. 7 kg.
滿刻度偏移 (Full Scale Deflection)
- Approx. 0.2 mm max.
歸零/容器重量控制 (Zero/tare Control)
- Max. full capacity.
電路 (Circuit)
- Exclusive microprocessor LSI-circuit.
電源供應 (Power Supply)
- 6 x 1.5 V AA (UM-3) size battery or DC 9V adapter (not included).
電源損耗 (Power Consumption)
- Approx. DC 28 mA
轉換器 (Transducer)
- Exclusive load cell.
操作溫度 (Operating Temp.)
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
體積 (Dimension)
- 215 x 90 x 45 mm ( 8.5 x 3.5 x 1.8 inch ).
重量 (Weight)
- 650 g ( 1.43 LB )/with batteries.
掛鉤 (Mounting Holes)
- Main instrument with mounting holes are provided on the back case, easy stand mounting.
附件 (Standard Accessory)
- Operating manual ................. 1 PC.
- 11 mm Penetrometer Tip, FRTP-11... 1 PC.
- 8 mm Penetrometer Tip, FRTP-8......1 PC..
- 6 mm Penetrometer Tip, FRTP-6......1 PC..
- 3 mm Penetrometer Tip, FRTP-3......1 PC.
- Carrying case .....................1 PC.
選購附件 (Optional Accessories)
- * Test stand, Model : FS-1001
- * RS232 cable, Model : UPCB-01
- * USB cable, Model : USB-01.
- * SD card data recorder, DL-9602SD.
- * Software for data logging & data recorder, Model : SW-U801-WIN
|
