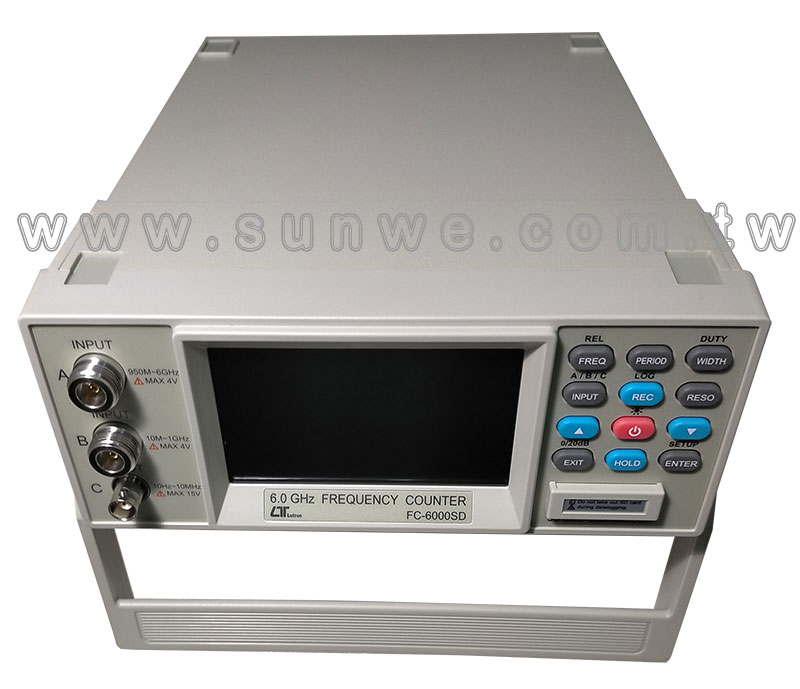

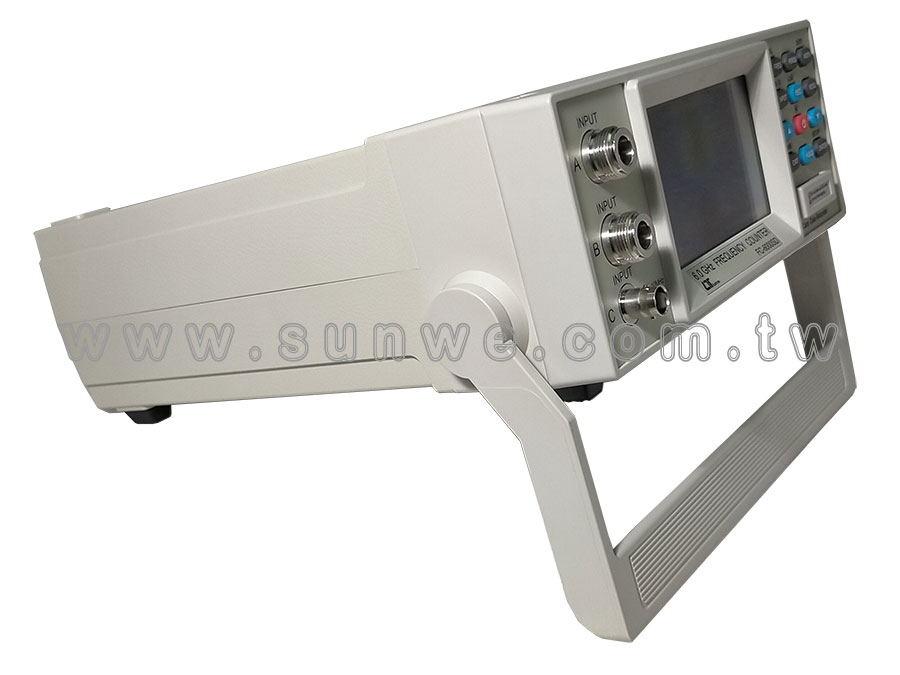

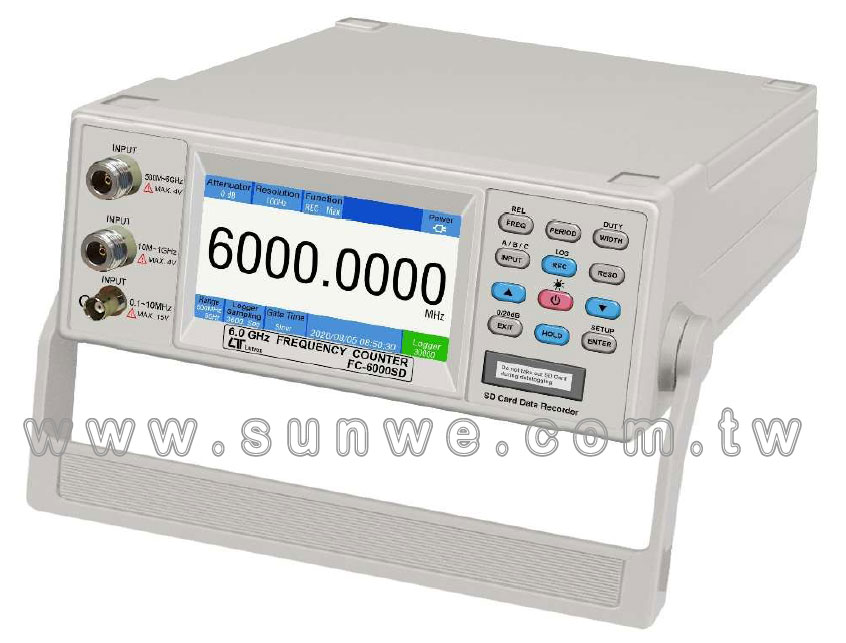

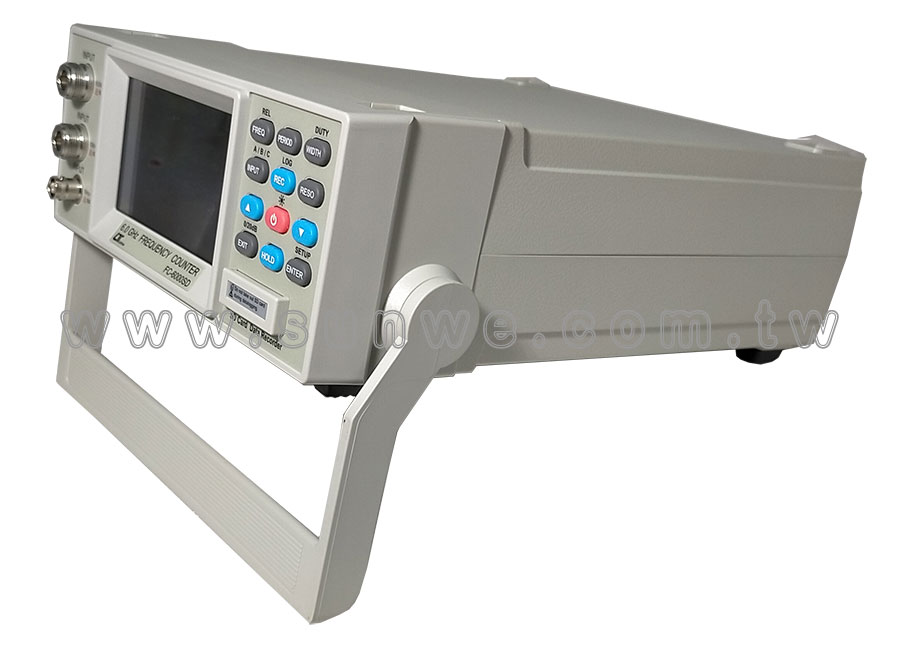

FC-6000SD
桌上型計頻器
(6.0 GHz，時基震盪 TCXO，micro SD 卡數據記錄器，桌上型)
特色
- 時基震盪採用高品質 TCXO（溫度補償晶體振蕩器），穩定性和精度高。
- VHF和UHF頻率測量的高靈敏度，對無線業餘愛好者很有用。
- 測量範圍廣，最高可達 6.0 GHz。
- 使用獨有的微處理器IC提供智慧功能：頻率、週期、多解析度、數據保持、相對測量、
數據記錄（最大值、最小值、平均讀數）。
- 4.3" TFT LCD液晶彩色顯示器。
- 0.1 Hz 解析度（10 MHz）。
- LCD顯示幕，即使在明亮的環境光線條件下也能實現低功耗和清晰的讀數。
- 由 AA (UM-3) DC 1.5 V X 6 電池（鹼性型）或DC 9V轉換器供電。
- 具RS 232電腦傳輸介面。
FEATURES
- TCXO (temperature compensated crystal oscillator) time base, high stability & accuracy.
- High sensitivity for the VHF & UHF frequency measurement, useful for the CB amateur.
- Wide measuring range up to 6.0 GHz.
- Used the exclusive Microprocessor IC offered the intelligent function: Frequency, Period, Multi resolution, Data hold, Relative measurement, Data record ( Max., Min., Average reading ).
- 4.3 " TFT LCD .
- 0.1 Hz resolution for 10 MHz.
- LCD display for low power consumption & clear read-out even in bright ambient light condition.
- Power supply from battery or AC to DC 9V adapter.
- RS 232 PC serial interface.
一般規格
電路 (Circuit)
- 4.3 " TFT LCD
- 480 x 272 Dots.
測量 (Measurement)
- Frequency, Data hold, Relative, Memory ( max., min., average ), Period.
範圍 (Range)
- 6.0 GHz：500 MHz to 6000 MHz (INPUT A)
- 1 GHz：10 MHz to 1 GHz.(INPUT B)
- 10 MHz &
週期(Period)： 10 Hz to 10 MHz(INPUT C)
- Clock width&Duty：10 Hz to 100 KHz(INPUT C)
解析度及取樣時間 (Resolution & Sampling Time)
|
Range |
Gate Time Select |
Resolution |
|
6000 MHz
( 6.0 GHz ) |
0.5 SEC |
1000 Hz |
|
6.5 SEC |
100 Hz |
|
4 SEC |
200 Hz |
|
2 SEC |
500 Hz |
|
1000 MHz
(1 GHz ) |
1 SEC |
100 Hz |
| 8 SEC |
10 Hz |
| 4 SEC |
20 Hz |
| 2 SEC |
50 Hz |
|
10 MHz |
0.5 SEC |
10 Hz |
|
1.5 SEC |
1 Hz |
|
6 SEC |
0.2 Hz |
|
11 SEC |
0.1 Hz |
靈敏度 (Sensitivity) (0 dB Function)
- 6 GHz：≧30 mVrms(500 MHz to 6 GHz).
- 1 GHz：≧30 mVrms(10 MHz to 1 GHz).
- 10 MHz & Period：≧15 mV rms.( 10 Hz to 10 MHz )
信號最大輸入 (Max. functional signal input) (Sensitivity set to -20 dB position)
- 6 GHz：≦300 mVrms(500 MHz to 1.5 GHz)
- ≦4 Vrms(1.6 GHz to 6 GHz)
- 1 GHz：≦4 V rms
- 10 MHz ,Period：≦15 Vrms
- Clock width & Duty(工作週期)：3Vpp ~ 5 Vpp
過載輸入 (Over-input) ( Max. signal will not hurt the circuit )
- 6.0 GHz & 1 GHz range：Max. 4 V rms.
- 10 MHz & Period,Clock Width & Duty Range： Max. 15 V rms.
時基穩定度對應溫度 (Time Base Stability vs. Temp.)
- 1 PPM (- 20 to 70 ℃).
頻率精確度 (Frequency Accuracy)
- ± ( 2 PPM + 1 d ) at 23± 5 ℃
工作週期精確度 (Width/Duty Accuracy)
- ± ( 3 % reading + 20d ) at 23± 5 ℃
時基電路 (Time Base circuit)
- 20 MHz, TCXO (temperature compensated crystal oscillator).

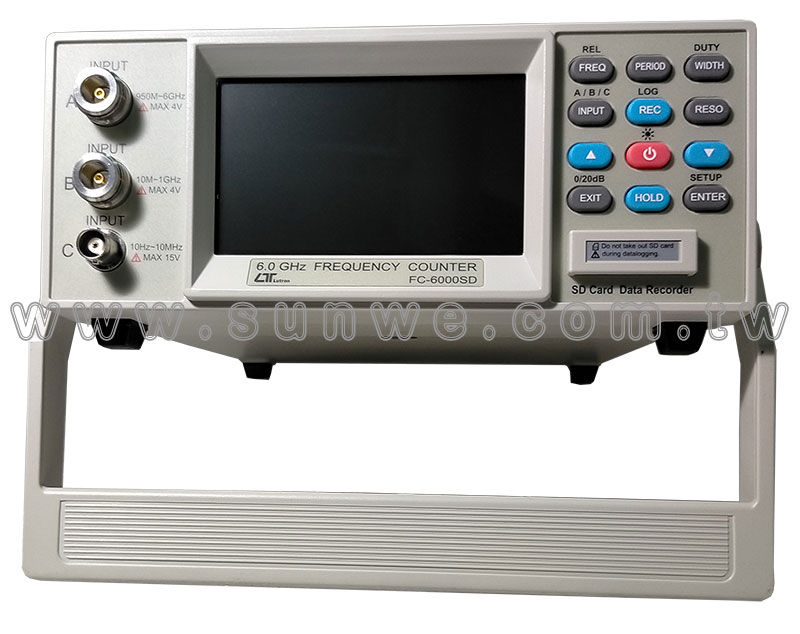

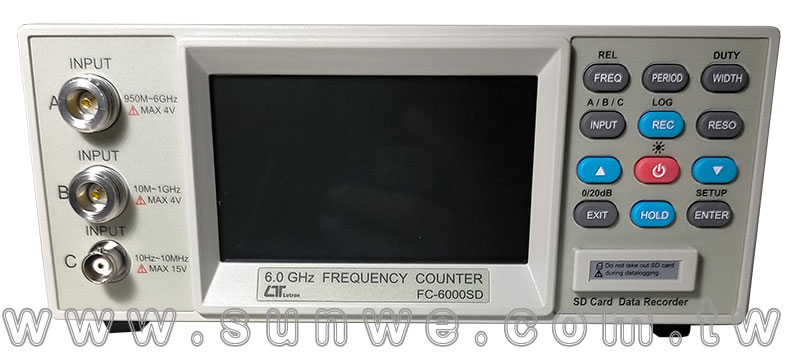

輸入連接器 (Input Connector)
- 6 GHz range : N coaxial connector.
- 1 GHz range : N coaxial connector.
- 10 MHz & Period range : BNC connector.

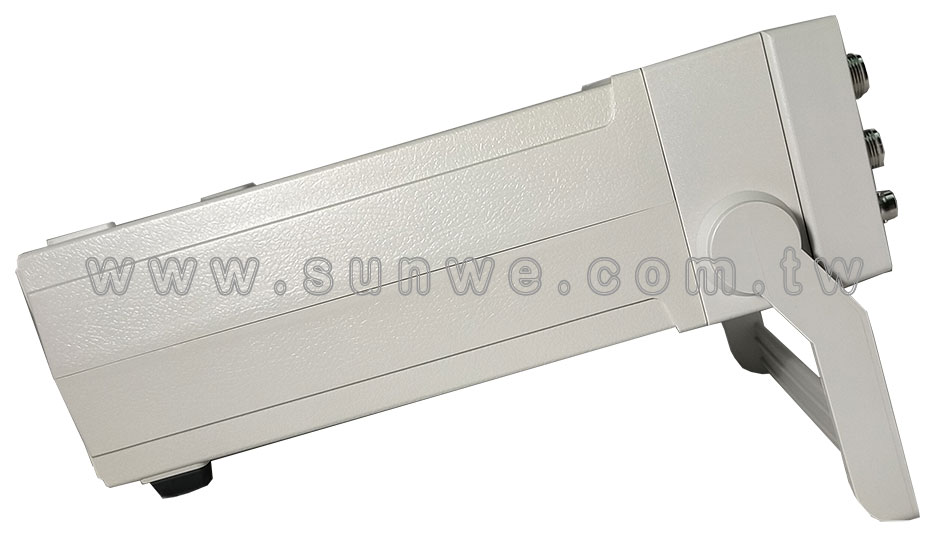

箱體 (Case)
- Durable & strong ABS-plastic housing with handle.
資料集錄器取樣時間 (Data Logger Sampling Time Setting range)
- Auto : 1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.
資料錯誤比 (Data error no.)
- ≦ 0.1 % no. Of total saved data typically.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 256 GB.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Decimal point of SD card setting
- * SD memory card Format
資料鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
顯示之取樣時間 (Sampling Time of display)
- Approx. 1 second.

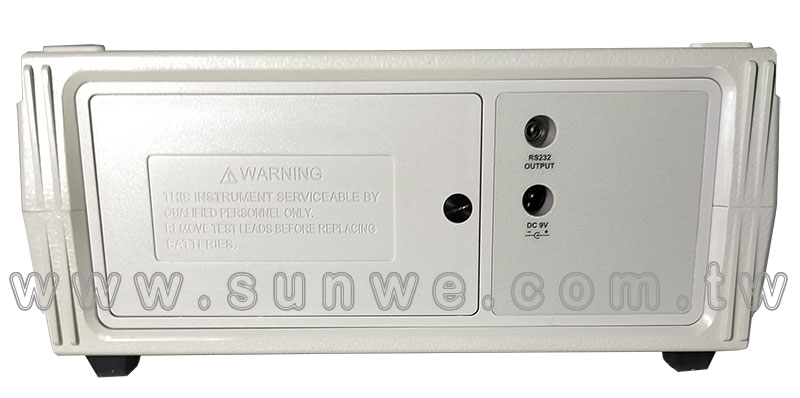

資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp.)
- 0 to 50 ℃ ( 32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80 % R.H.
電源供應 (Power Supply)
- 6 x 1.5 V AA ( UM-3 ) battery or AC to DC 9V Linear power adapter.
消耗電源 (Power Consumption)(-20 dB position )
- 6 GHz : Approx. DC 310 mA
- 1 GHz : Approx.DC 220 mA.
- 10 MHz & Period range : Approx. DC 150 mA.
交流變壓器電源輸入 (AC Adapter Power Input)
- Optional, Linear AC to 9V DC , 800 mA rating, central positive for socket.
體積 (Dimension)
- 295 x 236 x 98 mm ( 11.6 x 9.3 x 3.9 inch ).
重量 (Weight)
- 1465 g/3.23 LB (including battery)
附件 (Standard Accessories)
- Instruction Manual .............. 1 PC.

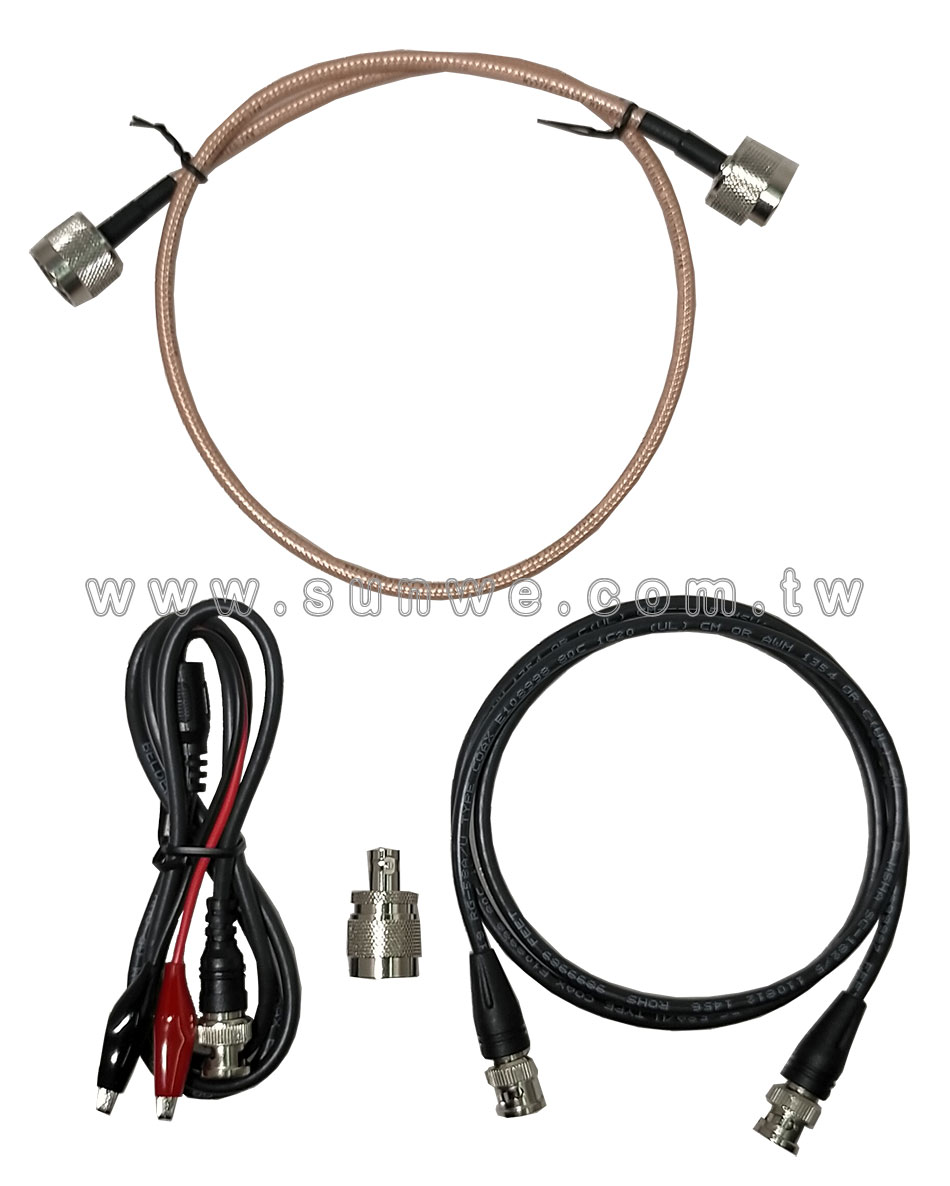

選購附件 (Optional Accessories)

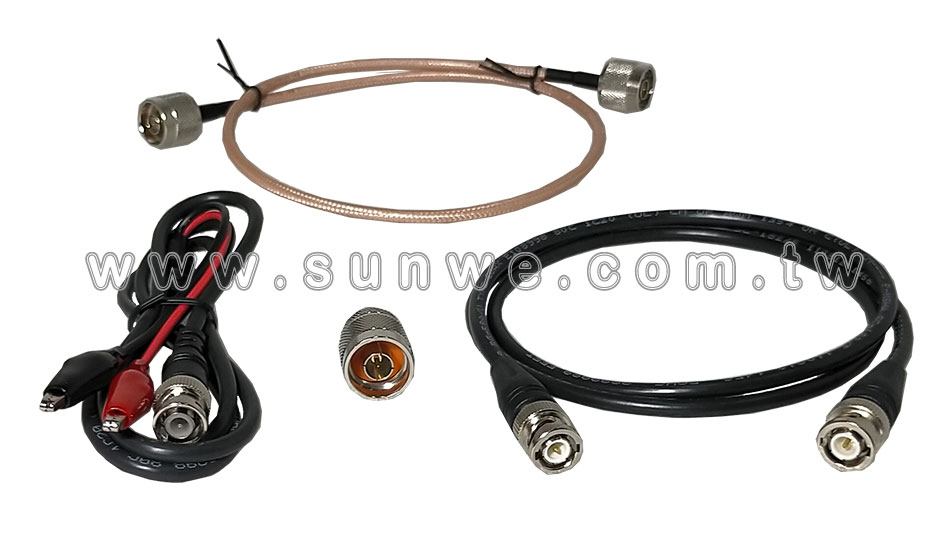

- PB-21 : Direct probe with BNC connector & alligator clip pairs, available for 10 MHz range
- BB-22 : Direct probe with double BNC connector, available for 100 MHz & 10 MHz range.
- NN-23 : Direct probe with double N coaxial connector, available for 1000, 6000 MHz range.
- NB-24 : N coaxial connector to BNC connector adapter.
- UPCB-2 : Isolated RS232 cable.
- AC-AA110V9 : Linear AC to 9V DC , 800 mA rating
- AC-AA220V9 : Linear AC to 9V DC , 800 mA rating
|
