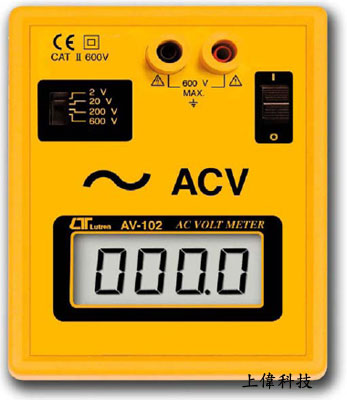

AV-102
交流電壓表
特色
- 數位式檯面用交流電壓表
- 測量範圍：
- 0 ~ 2V（解析度 0.001V）
- 0 ~ 20V（解析度 0.01V）
- 0 ~ 200V（解析度 0.1V）
- 0 ~ 600V（解析度 1V）
- 精確度：± 1%
- 超大型液晶顯示器，容易讀取
- Size：147 X 117 X 47mm
FEATURES
- Digital bench ACV meter, easy operation, professional quality, compact size.
- Large LCD display.
- 4 ranges :
- 2 V x 0.001 V
- 20 V x 0.01 V
- 200 V x 0.1 V
- 600 V x 1 V
- High input impedance.
- Overload protection for each range.
- Frequency Response : 40 Hz-500 Hz, sine wave.
- Over - input indication.
- Meet IEC1010 CATII 600V.006P DC 9V power.
- Safety standard banana input terminals.
- Application : Education, Maintenance, Production line, School, Laboratory, Industrial and Quality control.
規格
顯示 (Display)
- LCD, 18 mm ( 0.7" ) digit height.
測量 (Measurement)
- AC voltage.
範圍/解析度 (Range/ Resolution)
- 2 V x 0.001 V
- 20 V x 0.01 V
- 200 V x 0.1 V
- 600 V x 1 V
精確度 (Accuracy)
- ± ( 1% + 2d ) @ reading
輸入阻抗 (Input Impedance)
- 10M ohm
頻率反應 (Frequency Response)
- 40 Hz-500 Hz, sine wave.
AC/DC 轉換器 (AC/DC converter)
- Average reading calibrated to RMS, sine wave.
歸零調整 (Zero Adjustment)
- Automatic.
過載輸入 (Over - input)
- display shows ' 1 '
安全性 (Safety)
- Meet IEC1010 CATII 600V.
取樣時間 (Sampling Time)
- Approx. 0.4 second.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- 006P DC 9V battery.
電源消耗 (Power Consumption)
- Approx. DC 1.5 mA.
體積 (Dimensions)
- HWD 147 x 117 x 52 mm, ( 5.8 x 2.6 x 4.0 inch ).
重量 (Weight)
- 311 g/0.68 LB ( including battery ).
輸入端子 (Input terminal)
- Standard banana terminals ( Red & Black each ).
附件 (Accessories Included)
- Operation Manual.......................1PC.
選購附件 (Optional Accessories)
- Test alligator clips, one pair, TL-05
- Test leads with pin probe, one pair, TL-25
|
