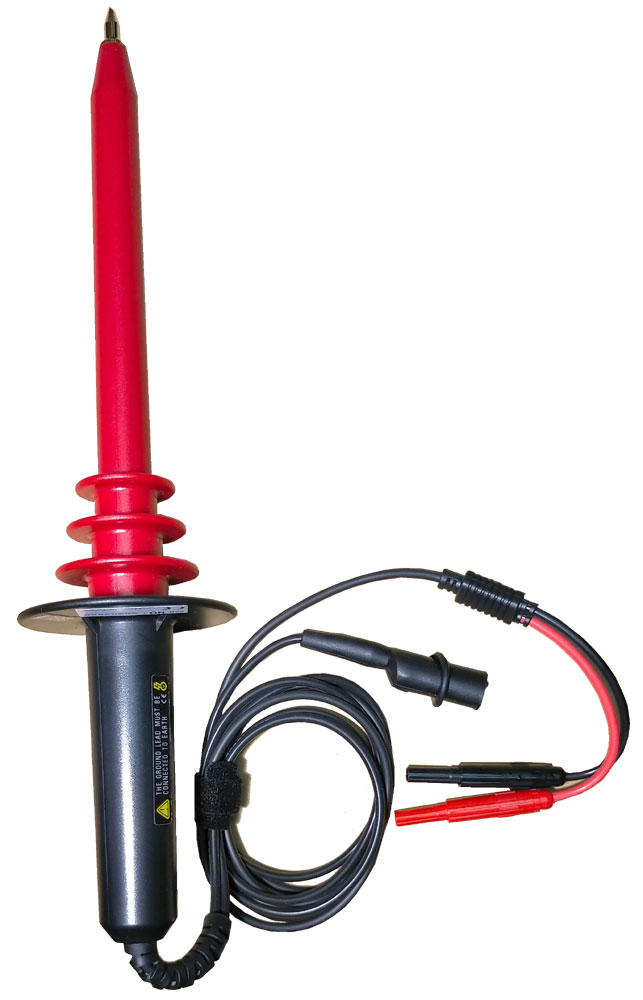

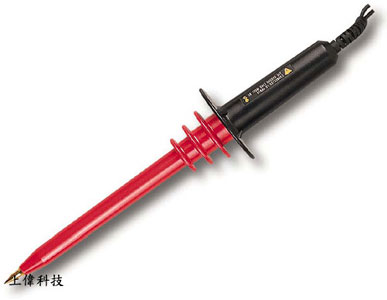

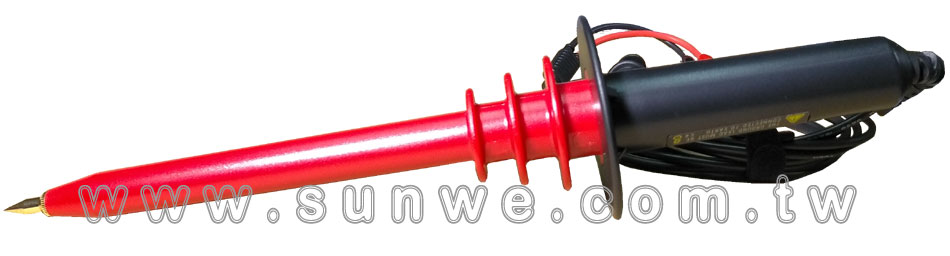

特色
-
衰減比例 : 1000:1
測量範圍 :
DCV(直流)1KV ~ 40KV
ACV(交流)1KV ~ 28KV.(50/60Hz)
精確度 : DCV ±1% . ACV ±5%
輸入阻抗約 1000M
規格
衰減比 (Attenuate Ratio)
- 1 : 1000.
輸入阻抗 (Input Impedance)
- Approx. 1000 M ohm.
輸出 (Output)
- Around 1.1 M ohm. The input impedance of external voltmeter
阻抗 (Impedance)
- should be 10 mega ohm.
安全性 (Safety)
- Meet CAT II 40000 V
最大工作電壓 (Max. Working Voltage)
- DCV : DC 40 KV
- ACV : Peak AC 40 KV or 28 KV rms ( depend which values is larger ).
精確度 (Accuracy)
- DCV : 1 KV to 20 KV - ± 1 %. ; 20 KV to 40 KV - ± 1.5 %.
- ACV : 1 to 28 KV rms, 50/60 Hz - ± 5 %.
溫度係數 (Temp Coefficient)
- Less than 200 ppm/蚓.
操作溫度 (Operating Temp.)
- 0 to 50 ℃ ( 32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80 % R.H.
電纜長度 (Cable Length)
- 1 meter.
操作 (OPERATION)
- Connect the plugs to the volts ( Hi ) & com ( Lo ) input terminals of your voltmeter ( or Multimeter ).
- Select the desired range of voltmeter ( Attention : Do not use auto ranging ).
- Whenever possible, turn the high voltage source off before making any connections. Connect the HV probe common lead ( alligator clip ) to a good earth ground or reliable chassis ground.
安全預防措施和警告 (SAFETY PRECAUTION & WARNING !!!)
- * This high voltage probe must be used by the person who are trained only. Do not work alone when working with high voltage circuits & environment.
- * For your own safety, inspect the probes for cracks & frayed or broken leads before each use. If any defects are noted, do not use the probes.
- * Hands, shoes, floor & work bench must be dry. Avoid making measurements under humid, damp or other environmental conditions that might affect the safety of measurement situation.
- * The ground connection must always be made before the probe tip comes into contact with the high voltage & must not be removed until after the probe tip has been removed from high voltage source.
- * Do not attempt to take measurement from sources where the chassis or return lead is not ground.
- * If possible, always turn the high voltage source off before connecting or disconnecting the probe.
- * Before turning the high voltage on, make sure that no part of your body is in contact with the device under test.
- * The probe body should be kept clean & free of any conductive contamination. Clean only the exterior probe body & cables. Use a soft cotton cloth lightly moistened with a mild solution of detergent & water. Do not allow any portion of the probe to be submerged at any time.
|
