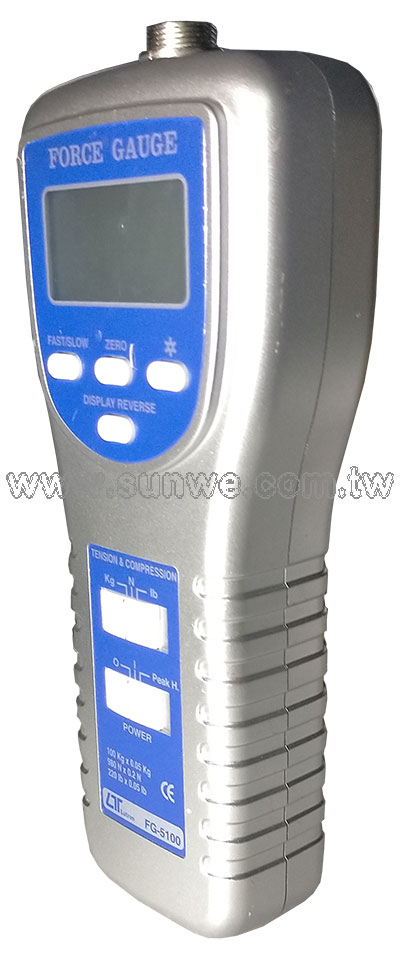

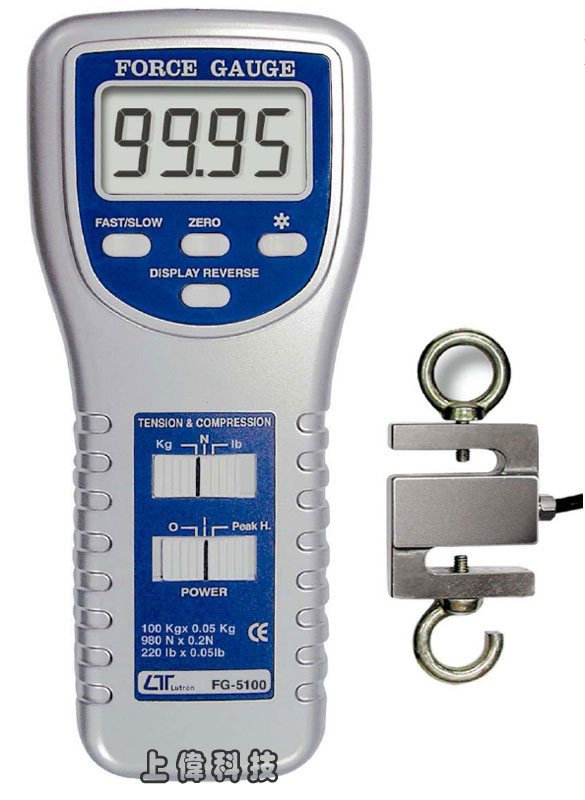

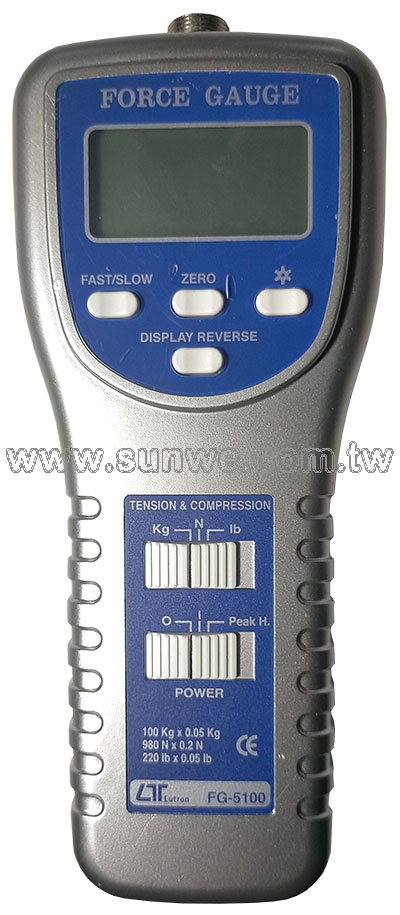

FG-5100
拉壓力計
特色
- 秤量範圍: 0.15 ~ 100公斤 ±0.5%

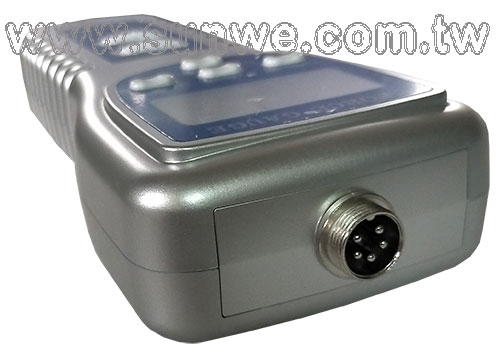

- 採外接式荷重元 , 運用多元化
- 拉力與壓力測量法選擇切換
- 公斤 / 磅 / 牛頓單位選擇切換
- 反應時間選擇 : 快/0.2秒 ' 慢/0.6秒
- 可抓取瞬間最大荷重值
- RS-232 / USB 連接介面(軟體選購)
- 主機 Size : 209 x 88 x 43mm
- 荷重元 Size : 130 x 51 x 18mm
FEATURES
- Large LCD display with back light.
- Tension & compression capability .
- 100 Kg, wide capacity, high resolution, high accuracy, high repeatability.
- 3 kind display unit, Kg/LB/Newton.
- Seperate sensor.
- Peak hold ( Max. load ) can be held in display during make tension or compression measurement.
- Zero button can operate both for normal measuring & the " peak hold " operation.
- Full capacity zero (tare) control capability.
- Fast/Slow response time push button.
- Positive or reverse display direction select.
- Over load protection.
- Hand held & stand mounting available.
- Low power consumption gives long battery life.
- Build in low battery indicator.
- Microprocessor circuit & exclusive load cell transducer.
- RS-232 computer interface .
- Power supply built-in DC 9V adapter input socket.
規格
顯示 (Display)
- LCD ( Liquid crystal display ).
- 5 digits, 16 mm ( 0.63" ) digit size. Back light.
顯示方向 (Display Direction)
- Positive or Reverse direction, select by the push button on the front panel.
功能 (Function)
- Tension & Compression (Push & Pull). Normal force, Peak hold ( Max. load ).
峰值鎖定 (Peak hold)
- Will freeze the display value of the Peak load ( Max. load ).
歸零 (Zero)
- Zero button can be operated both for "normal force" or "peak hold" operation
單位選擇 (Unit select)
- Kg/LB/Newton
測量容量 (Measurement Capacity)
- 100 Kg/220 LB/980 Newton.
解析度 (Resolution)
- 0.05 Kg/0.05 LB/0.2 Newton.
最小顯示 (Min. Display)
- 0.15 Kg/0.35 LB/1.4 Newton.
精確度 (Accuracy)
- ± (0.5 % + 2 digits), within 23± 5℃.
- * Under the test weight on 100 Kg & 10 Kg.
更新時間 (Update time)
- Fast Approx. 0.2 second.
- Slow Approx. 0.6 second.
過載指示 (Over range Indicator)
- Display show " - - - - " when in over range status
過載容量 (Overload Capacity)
- Max. 150 kg.
歸零/容器重量控制 (Zero/tare Control)
- Max. full capacity.
電路 (Circuit)
- Exclusive microprocessor LSI-circuit.
滿刻度偏移 (Full Scale Deflection)
- Approx. 1 mm max.
資料輸出 (Data output)

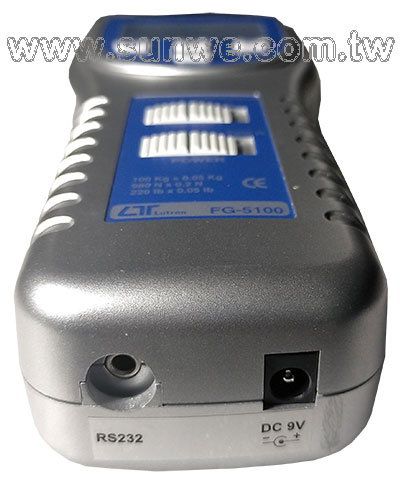

- RS-232 serial computer interface
感應器型式 (Sensor type)
- S type load cell.
電源供應 (Power Supply)
- 6 x 1.5 V AA (UM-3) size battery or DC 9V adapter (not included).
電源損耗 (Power Consumption)
- Approx. DC 28 mA
操作溫度 (Operating Temp.)
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
體積 (Dimension)
- Main instrument :
215 x 90 x 45 mm ( 8.5 x 3.5 x 1.8 inch ).
- Sensors with two hooks : 130 x 51 x 18 mm ( 4.7 x 2.0 x 0.7 inch ).
- Cable length : 2 meters.
重量 (Weight)
- Main instrument :
450 g ( 0.99 LB ).
- Sensors : 380 g ( 0.84 LB ).
掛鉤 (Mounting Holes)
- Mounting holes are provided on the back case, easy stand mounting.
附件 (Standard Accessory)
- Operating manual .............................. 1 PC.

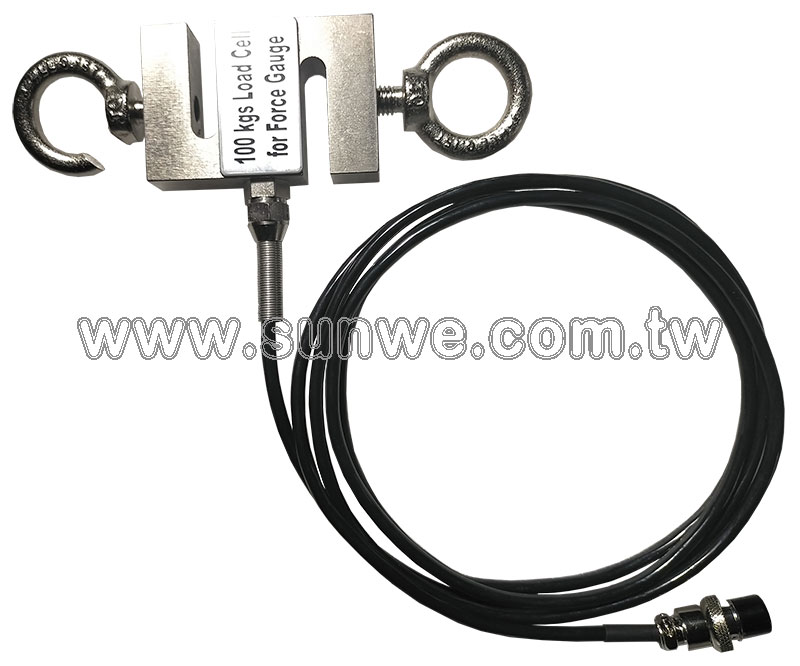

- 100 Kg sensor with 2 hooks and 2 meter cable... 1 PC.
- Hard carrying case .............................1 PC.
選購附件 (Optional Accessories)
- * RS232 cable, Model : UPCB-01
- * USB cable, Model : USB-01
- * Software for data logging & data recorder, Model : SW-U801-WIN
|
