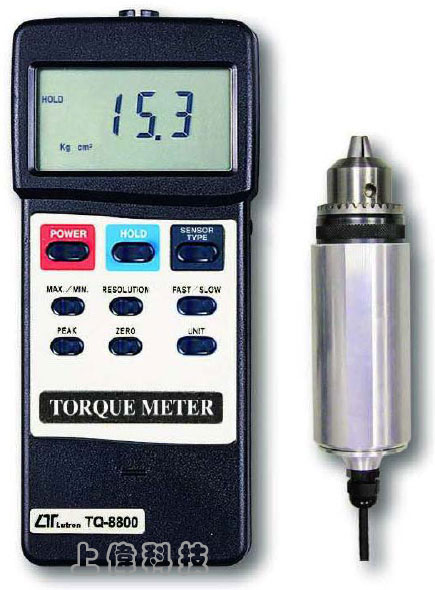

TQ-8800
扭力計
特色
- 測量範圍：0.01 ~ 15.00 Kg-cm
- 三種單位切換，公斤-公分/磅-英吋/牛頓-公分
- 瞬間最大測量值鎖定功能
- 具有取樣時間快/慢選擇
- 讀值鎖定及紀錄測量中之最大/最小值
- RS-232/USB 連接介面 (軟體選購)

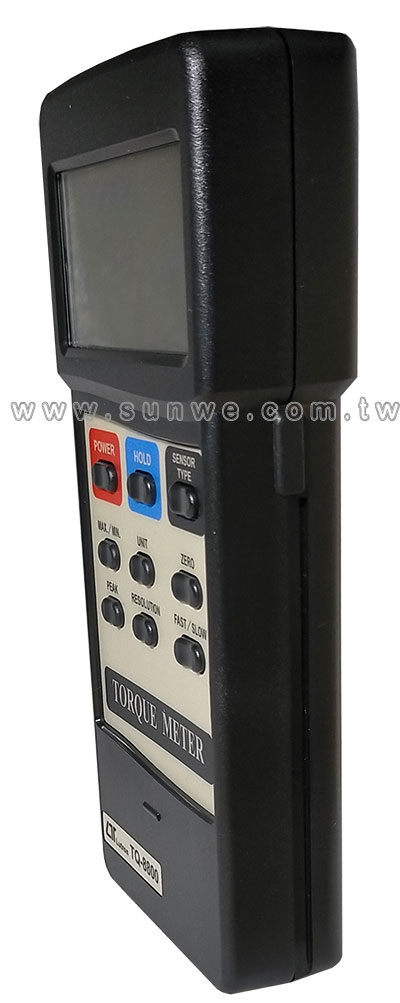

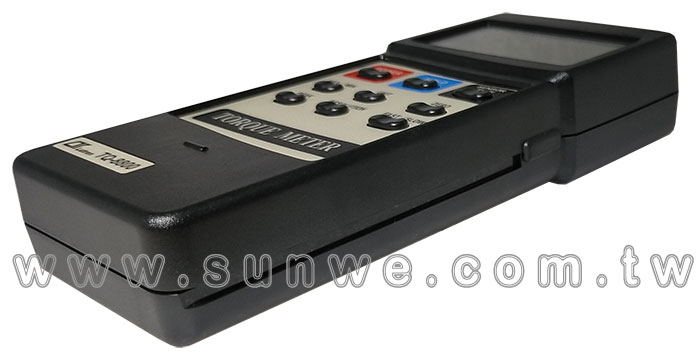

- 主機Size：180 X 72 X 32mm
- 扭力感應器Size：直徑48mm * 160mm
FEATURES

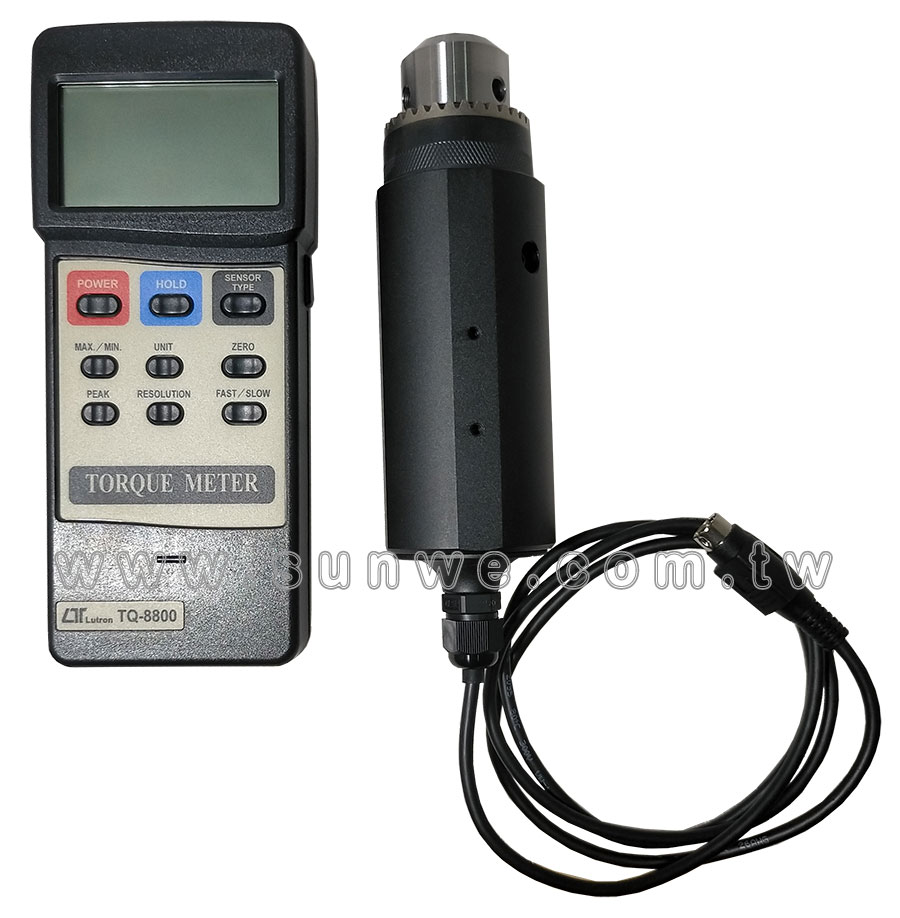

- Professional torque meter with 15 Kg-cm torque probe, full set.
- 3 kind display unit select button of Kg-cm, LB-inch and Newton-cm in the front panel.
- Peak value measurement
- Data hold button to freeze the desired reading.
- Peak hold measurement to hold the peak value.
- High/Low resolution select by push button.
- Fast/Low sampling select by push button.
- Record Maximum and Minimum readings with recall.
- RS 232 computer interface.
- Super large LCD display, easy readout.
- Microcomputer circuit, high performance.
- Separate torque probe, easy operation.
- Auto shut off saves battery life.
- Built-in low battery indicator.
- Heavy duty & compact housing case.
- Complete set with the hard carrying case.
規格
顯示 (Display)
- 61 mm x 34 mm supper large LCD display.
- 15 mm ( 0.6" ) digit size.
測量 (Measurement)
- Torque value, peak hold, data hold, Max. & min. value.
顯示單位 (Display unit)
- Kg-cm/LB-inch/Newton-cm.
感應器 (Sensor)
- Exclusive torque sensor.
電路 (Circuit)
- Exclusive microprocessor LSI-circuit.
資料鎖定 (Data hold)
- Freeze the desired reading.
峰值鎖定 (Data hold)
- To hold the peak value.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
關機 (Power off)
- Auto shut off saves battery life or manual off by push button.
取樣時間 (Sampling Time)
- Fast/Slow select.

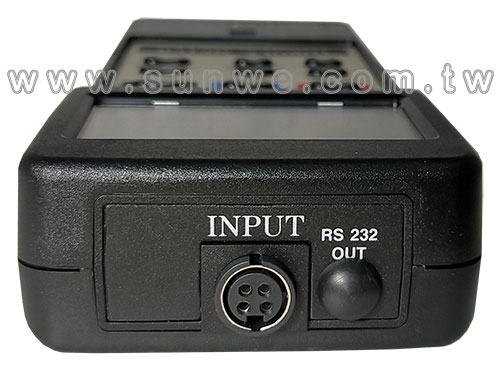

資料輸出 (Data Output)
- RS 232 PC serial interface.
感應器型式按鍵 (Sensor type button)
- To confirm the sensor type exactly
操作溫度 (Operating Temp.)
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.

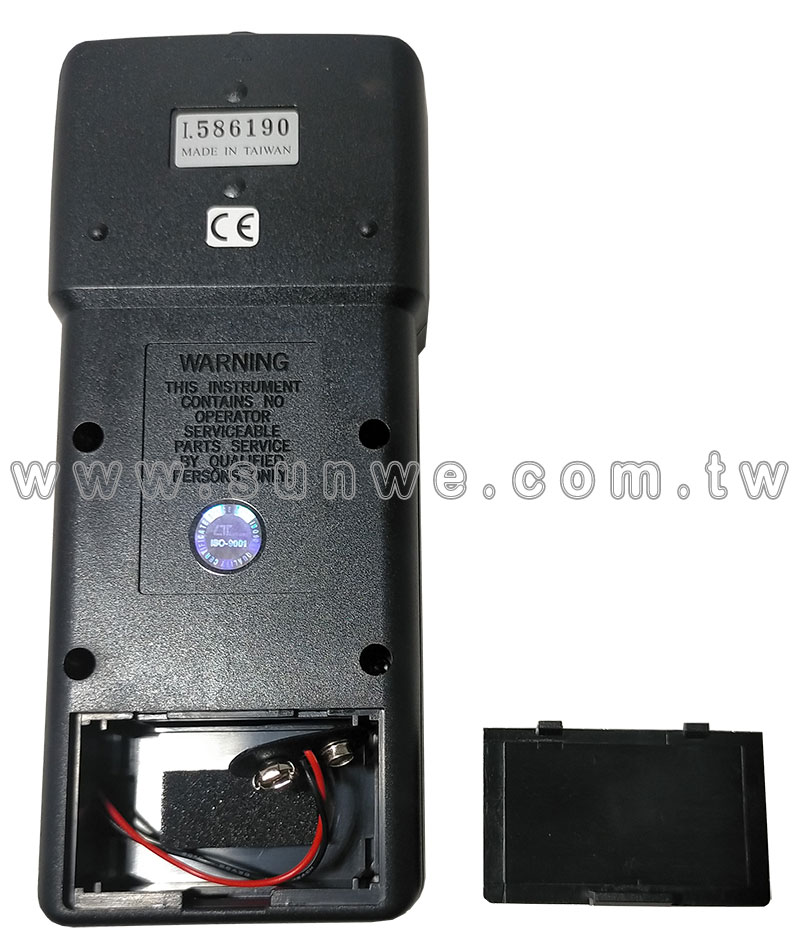

電源供應 (Power Supply)
- Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 20 mA
體積 (Dimension)
- Meter : 180 x 72 x 32 mm ( 7.1 x 2.8 x1.3 inch ).

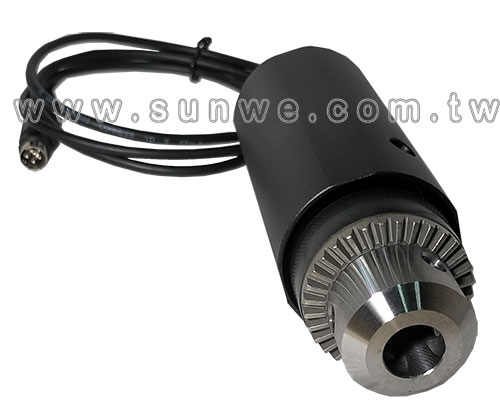

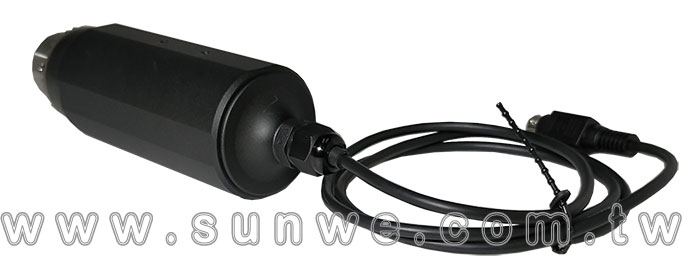

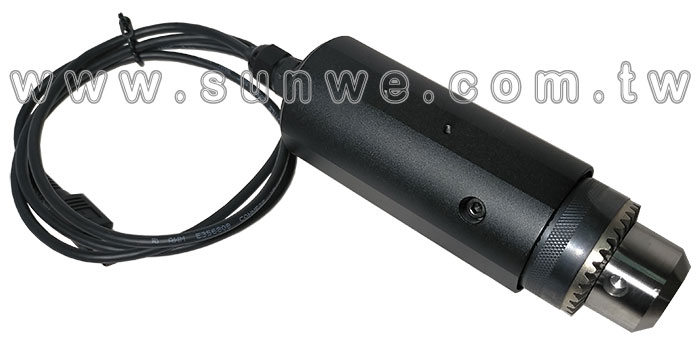

- Torque probe: Round 48 mm Dia. x 160 mm.
固定頭大小 (Chuck head size)
- 1/2 to 20 UNF, 1.5 to 13 mm,
重量 (Weight)
- Meter : 230 g ( 0.50 LB ).
- Probe : 600 g ( 1.32 LB )
附件 (Standard Accessory)
- Instruction manual........... 1 PC.
- 15 Kg torque probe........... 1 PC.
- Carrying Case................ 1 PC.
選購附件 (Optional Accessories)
- * RS232 cable, Model : UPCB-01
- * USB cable, Model : USB-01
- * Software for data logging & data recorder, Model : SW-U801-WIN
顯示單位/解析度
| Unit |
Max. range |
High resolution |
Low resolution |
Over load protection range |
| Kg-cm |
15 Kg-cm |
0.01 kg-cm |
0.1 Kg-cm |
22.5 Kgf-cm max. |
| LB-inch |
12.99 LB-inch |
0.01 LB-inch |
0.1 LB-inch |
19.53 LBf-inch max. |
| Newton-cm |
147.1 Newton-cm |
0.1 Newton-cm |
1 Newton-cm |
220.1 N-cm max. |
|
