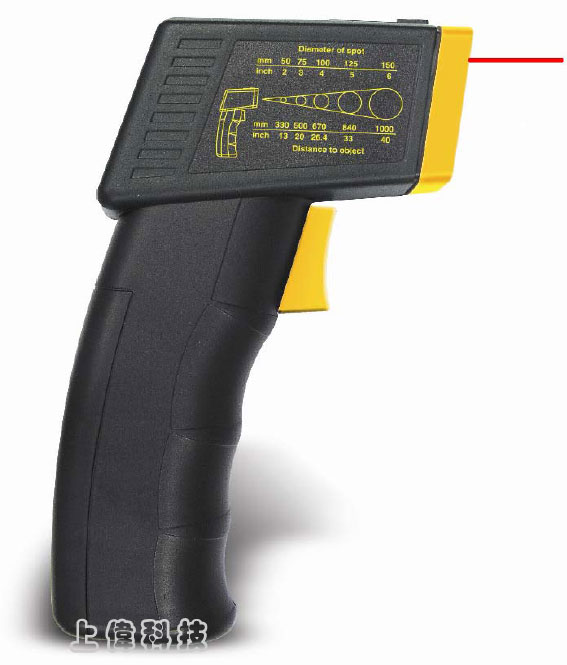

TM-959

紅外線溫度計

特色

測量範圍 : -30 ~ 305°C ± 3%

解析度 : 0.5°C

放射率調整 : 0.20 ~ 1.00

攝氏(°C) / 華氏(°F)單位選擇

距離與量測點比(D:S)=7:1

具 LED 紅光指引

自動背光及自動讀值鎖定功能

Size：160 X 92 X 45mm

FEATURES

Infrared thermometer, non-contact temperature measurement, -30 to 300 ℃ ( -22 to 572 ℉ ), precision for none contact temperature measurement.

Microcomputer circuit with high performance.

Wide temperature measuring range.

Measurement via one operation button, easy to operate.

Build in ℃ & ℉ select switch.

Automatic data hold.

0.95 emissivity value.

Emissivity value can adjust from 0.2 to 1.00.

Back light LCD display.

LCD display both temperature and the emissivity value.

Laser target guide for IR thermometer.

0.5 degree display resolution.

Auto power shut off saves battery life.

Built-in low battery indicator.

Compact housing case with stand.

Operates from 006P DC 9V battery.

一般規格

顯示 (Display)

LCD, 29 mm x 33 mm.

* Main display to show temp. value.

* Lower display to show emissivity value.

* Back Light.

功能 (Functions)

℃, ℉, Auto data hold, Auto power off, Auto LCD back light, Emissivity adjustment.

測量範圍 (Measurement Range)

-30 to 300 ℃ ( -22 to 572 ℉ ),

解析度 (Resolution Circuit)

0.5 ℃/0.5 ℉. Exclusive microcomputer circuit.

電路 (Circuit)

Exclusive microcomputer circuit.

放射率調整 (Emissivity Adjustment)

Adjustment range : 0.20 to 1.00. * 0.95 default emissivity value.

光源 (Target Guide)

* Less than 1 mW.

* Class 2 laser diode. Red. Wave length is 645 nm approximately.

取樣時間 (Sampling Time)

Approx. 0.6 second.

鎖定及電源自動關閉功能 (Hold and Auto Power Off function)

After release the operation switch, display will hold the last measuring value within 5 seconds continuously.

過載指示 (Over Indication)

≧ 305 ℃, display will show 350 ℃ and flashed.

≦-30 ℃, display will show -30 ℃ and flashed.

電源供應 (Power Supply)

DC 9V battery, 006P, MN1604 ( PP3 ) or equivalent, heavy duty or Alkaline.

電源損耗 (Power Consumption)

Approx. DC 14 mA, with laser light out.

Approx. DC 25 mA, w/o laser light out.

操作溫度及溼度 (Operating Temp. and Humidity)

0 to 50 ℃ (32 to 122 ℉).

Less than 80% RH.

重量 (Weight)

140 g/0.3 LB ( without battery ).

體積 (Dimension)

160 x 92 x 45 mm. ( 6.3 x 3.6 x 1.8 inch ).

附件 (Standard Accessory)

Operational manual..... 1 PC.

電氣規格

測量範圍 (Measurement Range)

-30 to 300 ℃ ( -22 to 572 ℉ ),

解析度 (Resolution)

0.5 ℃/0.5 ℉.

精確度 (Accuracy)

± 3 % of reading or ± 3 ℃( 5 ℉), which ever is greater.

* Meter operating temp. within 23± 5 ℃ and the emissivity value of measurement target set to 0.95.

* Spec. tested under the 20 cm dia. black body, the measuring distance from the probe sensing Head is 30 cm.

溫度感應器 (Temp. Sensor)

Thermocouple pie.

放射率設定 (Emissivity Setting)

* By push button. Setting range : 0.20 to 1.00.

The default emissivity value is 0.95, which will cover 90% of a typical application.

測量波長區域 (Measurement Wave length Region)

6 to 12 micro meter.

距離因素 (Distance Factor)

D/S : Approx. 7:1

(D - Distance, S - Spot.)

　
