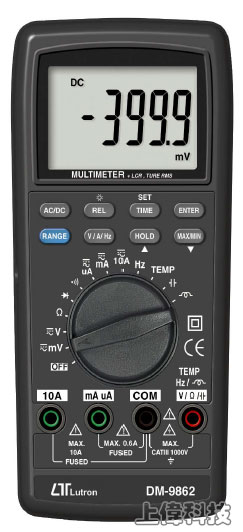

DM-9862
多功能電錶
簡介
- 交直流電壓：0 ~ 1000V (DC ±1% AC ±1.2%)
- 交直流電流：0 ~ 10A ±1.5%
- 電阻：0.1 ~ 60M歐姆 ±1.5%
- 電容：0.1pF ~ 60uF ±2.5%
- 頻率：0.1HZ ~ 20MHZ ±0.5%
- 溫度：-100°C ~ 1000°C ±1%
- 電感：0.1uH ~
100H ±2.5%
- 二極體測試，導通蜂鳴測試
- 讀值鎖定及記錄測量中之最大 / 最小值
- Size：190 X 88 X 40mm
特色
- 符合IEC 1010 CAT III 1000 V安全要求。
- 綠色LCD背光，方便閱讀。
- 6000計數A / D，高解析。
- DCV，ACV，DCA，ACA，電阻，電容，電感，頻率，溫度，二極管，連續性蜂鳴器多功能測量。
- 記錄最大、 最小測量值回叫。
- 讀值鎖定，相對峰值
- 自動量程，手動量程選擇。
- 可測量溫度。
- V/A/Hz按鍵，當執行ACV，ACA時功能也可以測量頻率。
- 為了安全考慮，10 A，mA，uA電流都有保險絲保護。
- 電壓電路為10M歐姆高阻抗。
- 使用9 V（006P，MIN1604）電池。
- 內置過載保護，適用於大多數量程。
- RS232/USB 電腦連接介面。
- 使用耐用，持久的組件，封閉堅固，重量輕的ABS塑料外殼。
- 可選購Lutron全系列：夾具轉換器，轉速表轉換器，壓力轉換器，濕度轉換器，噪音轉換器，風速計轉換器。
FEATURES
- Meet IEC 1010 CAT III 1000 V safety requirement.
- LCD with green light backlight, easy reading.
- 6000 counts A/D, high resolution.
- Multi function measurement. DCV, ACV, DCA, ACA, Resistance, Capacitance, Inductance, Frequency, Temperature, Diode, Continuity beeper.
- Max. & Min. measurement value with recall.
- Relative, Data hold.
- Auto range with manual range selection.
- Temperature measurement possibility.
- VAHz button, when execute the ACV, ACA function also can measure the frequency of signal.
- Both 10 A, mA, uA current are build fuse for safety consideration.
- 10M ohm impedance for voltage circuit.
- Operates from 9 V ( 006P, MIN1604 ) batteries.
- Built-in overload protection for most ranges.
- Photo couple RS 232 computer serial interface.
- Uses durable, long-lasting components, enclosed in strong, light weight ABS-plastic housing.
- Full line optional adapters : Clamp adapter,Tachometer adapter, Pressure adapter, Humidity Adapter, Sound level adapter, Anemometer adapter,
一般規格
顯示 (Display)
- 60 mm x 39.5 mm large LCD display
測量 (Measurement)
- DCV, ACV, DCA, ACA, Resistance, Diode,Continuity beeper, Capacitance, Inductance,Frequency,Temperature.
A/D 計數 (A/D counts no.)
- 6000 counts.
範圍選擇 (Range selection)
- Auto range with
manual range selecting.
特殊功能 (Special function)
- Relative
measurement, Data hold,
讀值鎖定 (Data hold)
- To freeze the
display reading on the LCD display.
電源開關機管理 (Power On/Off
management)
- Auto power of or
manual power off.
記憶重呼 (Memory recall)
- Records Maximum &
Minimum readings with recall.
相對測量 (Relative measurement)
- To offset the
measurement value.
VAHZ按鍵 (VAHz button)
- When execute the
voltage or current function also can measure the
frequency of signal
資料輸出 (Data output)
- RS 232 PC serial
interface, photo couple.
極性 (Polarity)
- Automatic
Switching, " - " indicates negative polarity.
歸零調整 (Zero Adjustment)
- Automatic.
取樣時間 (Sampling Time)
- Approx. 0.5 to 1
second.
操作溫度
(Operating Temp.)
- 0 ℃ to 50 ℃ (32 ℉
to 122 ℉)
操作溼度
(Operating Humidity)
- Max. 80% RH
電源供應 (Power Supply)
- 9 V ( 006P,
MIN1604 )
- DC 9V adapter
input
- * AC/DC Power
adapter is optional.
電源消耗 (Power Consumption)
- Approx. DC 5.5 mA.
體積 (Dimensions)
- 190 x 88 x 40 mm (
7.5 x 3.5 x 1.6 inch ).
重量 (Weight)
- 378 g/0.83 LB (
w/o battery ).
附件 (Accessories Included)
- Red and Black Test Leads (
CAT III 1KV Test Leads )...1 Set
- 0.63 Amp Spare
Fuse.......................1 PC
- Instruction
Manual........................1 PC
選購附件及轉換器
- Full line adapters :
- ACA/DCA current adapter, Pressure adapter,Light adapter, EMF adapter, Sound level adapter, High voltage probe.
- AC to DC 9V
adapter.............AP-9VA
-
Holster.........................HS-03
- Type K Temperature
probe........TP-11
- Soft carrying
case..............CA-05A
- RS232
cable.....................UPCB-06
電器規格 (23±5 ℃)
直流電壓 DC Voltage
- Range：600.0 mV /6 V/60 V/600 V /1000 V
- Resolution：0.1 mV /0.001V /0.01V
/0.1V/1 V
- Accuracy
- 600 mV：± ( 0.5% + 2d )
- 6 V, 60 V, 600 V, 1000 V：± (
0.8% + 1d )
- Input impedance：10
M ohm.
- Over load
protection
- ± 50 DCV, 50
ACV：600 mV range
- ± 1000 DCV,
1000 ACV：other ranges
交流電壓
AC Voltage ( True RMS )
- Range：600.0
mV /6 V/60 V/600 V /1000 V
-
Resolution：0.1 mV
/0.001V /0.01V /0.1V/1 V
-
Accuracy：
-
±
( 1% + 2d )
-
* Spec. are
tested under
50/60 Hz.
-
Input
impedance：10
M ohm.
-
Over
load
protection：
- ± 50 DCV, 50 ACV：600 mV range
- ± 1000 DCV, 1000 ACV：other ranges
交/直流電流 DC Current, AC Current ( True RMS )
- Range：10 A/6 A/600 mA/60 mA/6000 uA/600 uA
- Resolution：0.01 A/0.001 A/0.1 mA/0.01 mA/1 uA/0.1 uA
- Accuracy：
| |
DCA |
ACA |
| 600 uA |
± ( 0.5 % + 2d ) |
± ( 1 % + 7d ) |
| 6000 uA |
± ( 0.5 % + 2d ) |
± ( 1 % + 7d ) |
| 60 mA |
± ( 0.5 % + 2d ) |
± ( 1% + 7d ) |
| 600 mA |
± ( 0.5 % + 2d ) |
± ( 1 % + 7d ) |
| 6 A |
± (1.5 % + 5d) |
± (1.5% + 2d) |
| 10 A |
± (1.5 % + 2d ) |
± (1.5 % + 2d ) |
| * ACA spec. are tested under 50/60 Hz. |
- Over load protection：
- 10A range : 10A fuse.
- uA, mA range : 630 mA fuse.
二極體 Diode Diode ( Forward voltage, VF )
- Range：2.9 V DC.
- Accuracy：± (0.5 % + 2d )
電容 Capacitance
- Auto Range：600 pF/6 nF/60 nF/600 nF/6 uF/60 uF/100 uF/600 uF
- Resolution：0.1 pF/0.001 nF/0.01nF/0.1 nF/0.001 uF/0.01 uF/0.1 uF/1 uF
- Accuracy：
- 600 pF：± ( 2.5% + 5d )
- 6 nF/60 nF/600 nF/6 uF/60 uF：± ( 1.5% + 5d )
- 600 uF /100 uF：± ( 2.5% + 5d )
- Over load protection：± 30 DCV, 30 ACV.
- Test frequency：100Hz /1KHz /10KHz *Auto frequency configuration
- Remark：Discharge capacitor before testing.
電感 Inductance
- Auto Range：600 uH/6 mH/60 mH/600 mH/6 H/60 H/100 H
- Resolution：0.1uH/0.001mH/0.01 mH/0.1 mH/0.001 H/0.01 H/0.1 H
- Test frequency：100Hz /1KHz /10KHz *Auto frequency configuration
- Accuracy:
- 600 uH：± ( 5% + 5d )
- 6 mH/60 mH/600 mH/6 H：± ( 1.5% + 5d )
- 60 H/100 H：± ( 2.5% + 5d )
頻率 Frequency
- Range：600 Hz/6 KHz/60 KHz/600 KHz/6 MHz/20 MHz
- Resolution：0.1 Hz/0.001 KHz/0.01 KHz/0.1 KHz/0.001 MHz/0.01 MHz
- Accuracy：± ( 0.5% + 2d )
- Sensitivity：Min. 1 V rms, Max. 5 V rms.
電阻 OHMS
- Range：600 Ω /6 KΩ /60 KΩ /600 KΩ /6 MΩ /60 MΩ
- Resolution：0.1Ω /0.001 KΩ /0.01 KΩ /0.1 KΩ /0.001 MΩ /0.01 MΩ
- Accuracy：
- 600 ohm : ± ( 1 % + 2d )
- 6K/60K/600K/6 M : ± ( 1.5 % + 2d )
- 60 M : ± ( 3 % + 5d )
- Over load protection：± 350 DCV, 350 ACV.
導通蜂鳴 Continuity Beeper
- Beeper will sound if measured resistance less than 20 ohm.
最大及最小測量 Max. & Min. Measurement
- During the operation can memorize the maximum and the minimum measurement value.
溫度 Temperature
| Auto Range |
Resolution |
Accuracy |
| -100.0 ℃ to 199.9 ℃ |
0.1 ℃ |
± ( 1% + 1 ℃ ) |
| 200 ℃ to 1000 ℃ |
1 ℃ |
| -148 ℉ to 391.9 ℉ |
0.1 ℉ |
± ( 1% + 2 ℉ ) |
| 392 ℉ to 1832 ℉ |
1 ℉ |
| Temp. probe |
The temperature probe ( TP-11 ) is the optional accessory. |
|
|
