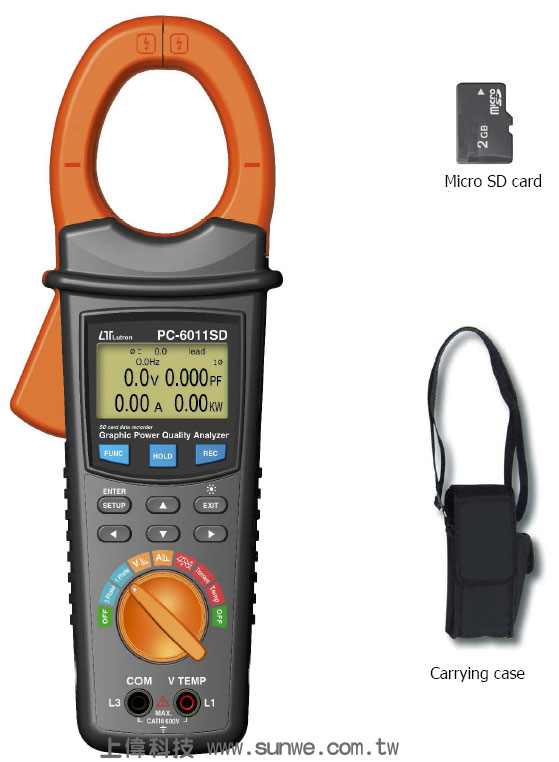

PC-6011SD
記憶鉤式電力分析錶
簡介
- 即時測量數據可記錄儲存於SD記憶卡，資料可下載到Excel做圖表分析 (記憶卡選購)
- 交流電壓：AC10~600V
- 交流電流：AC10~2000A
- 功率因數：PF : 0.01~1.0
- 相位角：-180°~180°
- 瓦特 / 視在 / 虛功率：0~9.999M(W/VA/VAR)
- 瓦特 / 視在 / 虛功率小時：0~9.999M(WH/VAH/VARH)
- 諧波顯示(1 - 50次),顯示與峰值波形
- 鉤部口徑：90mm
- 溫度：-100.0℃~1300℃
- SD記憶卡容量：1~ 4 G的 micro SD卡
- 可記錄最大值、最小值及讀值鎖定
- Size：280*106*47mm.
特色
- PC-6011SD 記憶鉤式電力分析錶適用於單相或平衡式三相電力系統
- 電壓和電流量為 RMS 均方根值
- ACV輸入阻抗為10兆歐姆
- 有效功率（KW，MW，GW）測量
- 視在功率（KVA，MVA，GVA）測量
- 虛功率（KVAR，MVAR，KVAR）測量
- 功率因數（OF），相位角（Φ）測量
- 能源（KWh、KVAh、KVARh、PFh ) 測量
- 電壓測量範圍：10 - 600 ACV
- 電流測量範圍：5 - 2000 ACA
- 圖形相量圖
- 電壓和電流諧波分析（1-50th順序）
- 電壓和電流總諧波失真分析（THD）測量。
- 電壓和電流波形顯示
- 峰對峰值電壓和電流測量
- 捕獲瞬態事件（包括驟降，驟升和斷電），具有可編程的閾值（％）
- K型熱電偶溫度：（-100.0℃至199.9℃/200℃〜1300℃），℃/℉
- 可編程的PT比（1至1000）
- 安全標準：IEC1010，CAT IV600V
- 內置時鐘和日曆，具有SD存儲卡即時記錄數據，設置時間從2〜7200秒為單位。只需將紀錄之SD卡插入電腦，即可下載的所有測量值與時間信息（年，月，數據，時，分，秒）到Excel，然後用戶可以進一步將數據特性加以分析
- 允許將LCD螢幕圖像轉換為BMP圖檔，進一步的分析用的工具
- 支援 Micro SD 卡最大至 32GB 容量
- 電源由 AA（UM-3）DC1.5 VX2電池（鹼性型）或DC 9V變壓器供應
- 數據輸出可選購 USB Cable/USB-01, RS232 cable/UPCB-02 和 SW-U811-WIN 軟體
- 可選購 K型 TP-11 溫度測棒
FEATURES
- Power quality analyzer for single-phase or balanced three-phasesystem.
- Voltage and Current are the True RMS value.
- ACV input impedance is 10 Mega ohms.
- True Power ( KW、MW、GW ) measurement.
- Apparent Power ( KVA、MVA、GVA ) measurement.
- Reactive Power ( KVAR、MVAR、GVAR) measurement.
- Power Factory ( PF )、Phase Angle (Φ ) measurement.
- Energy ( KWh、KVAh、KVARh、PFh ) measurement.
- Voltage measurement range: 10 to 600 ACV.
- Current measurement range: 5 to 2000 ACA.
- Graphic Phasor Diagram.
- Voltage and Current harmonic analysis ( 1-50th order ).
- Voltage and Current Total Harmonic Distortion analysis ( THD ) measurement.
- Voltage and Current waveforms show.
- Peak-to-Peak voltage and current measurement.
- Capture Transient events ( including Dip, Swell and Outage ) with programmable threshold ( % ).
- Thermocouple Temp. sensor:Type K ( -100.0℃ to 199.9℃ /200℃ to 1300℃ ),℃ / ℉.
- Programmable PT ratio ( 1 to 1000 ).
- Safety Standard : IEC 1010, CAT IV 600V.
- Built-in clock and Calendar, real time data record with SD memory card , sampling time set from 2 to 7200 seconds. Just slot in the SD card into the computer, it can down load the all the measured value with the time information ( year, month, data, hour, minute, second ) to the Excel directly, then user can make the further data analysis by themselves.
- Allow save the LCD screen picture to the photo BMP file, it is the useful tool for the user to make the further analysis.
- Micro SD CARD 32 GB maximum supported capacity.
- Powered by AA ( UM-3 ) DC 1.5 V X 2 batteries ( Alkaline type ) or DC 9V adapter ( linear 110V/220V ).
- Computer data output, can cooperate with optional USB Cable/USB-01, RS232 cable/UPCB-02 and Data Acquisition software, SW-U811-WIN.
- Optional type K probe: TP-11.
一般規格
電路 (Circuit)
- Custom single-chip microprocessor LSI circuit
顯示 (Display)
- LCD Size: 3.2 X 2.4" (60 X 44.4 mm)
- Dot Matrix backlit LCD (128 X 64 pixels)
測量 (Measurement)
- ACV
- ACA
- KW / KVA/ KVAR/ PF
- KWH/KVAH/KVARH/PFH
- Power factor
- Phase angle
- Frequency
- Harmonics display
- Temperature
線配置 (Wire configurations)
- 1 Phase, 3 Phase
電壓範圍 (Voltage ranges)
- 10 ACV to 600 ACV (Auto Range)
電流範圍 (Current ranges)
- 5 ACA to 2000 ACA (Auto Range)
安全認證 (Safety standard)
- IEC1010 CAT IV 600 V
ACV 輸入阻抗 (ACV input impedance)
- 10M ohms
鉗頻率響應 (Clamp frequency response)
- 40Hz to 1KHz
測試夾具 (Tested clamp)
- 45 to 65 Hz
過載保護 (Over-load protection)
- ACV：720 ACV RMS
- ACA：2100 ACA with clamp probe
超量程 (Over-range)
- * LCD display show " OL ".
- * The data save into the SD card will show " 9999 " or " 999 " (overleap the decimal point).
讀值鎖定 (Data Hold)
- Freezes displayed reading
資料集錄器 (Datalogger)
- * Real time data logger, saved the data into SD memory card and down load the all the measured value with the time information ( year/month/data/hour/minute/second ) down load to the Excel.
- * Sampling time for data logger : 2 seconds to 7200 seconds, the during of setting step are 2 seconds
- *Data error no. : ≦0.1% no. of total saved data typically.
數據記錄 (Data Recording)
- Micro SD memory card
取樣時間 (Sampling Time)
- Approx. 1 second
數據輸出 USB/RS232 (Data Output USB/RS232)
- * Computer interface
- * Connect the optional USB cable USB-01 will get the USB plug.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
操作溫度 (Operating Temperature)
- 0 to 50 ℃. ( 32 to 122℉ ).
操作溼度 (Operating Humidity)
- 80% Relative Humidity max.
電源供應 (Power Supply)
- * DC 1.5V, AA ( UM-3 ) Battery X 2 PCs (Alkaline or heavy-duty battery).
- * AC to DC 9V power adapter ( LINEAR 110/220V )
消耗功率 (Power Consumption)
- 60 mA DC
最大導體尺寸
- Clamp can accommodate up to 2.2" (57 mm) diameter
體積 (Dimension)
- 11.0 X 4.2 X 1.9" (280 X 106 X 47mm)
- Clamp Jaw: 3.5" (90 mm)
附件 (Accessories Included)
- Instruction manual........................ 1 PC
- 8 GB micro SD card........................ 1 PC
- Test Leads.................................1 set
- Alligator clips............................1 set
- AC to DC 9V adapter ( linear 110V/220V )...1 PC
- Carrying case..............................1 PC
電器規格 (23±5 ℃)
ACV
| Range |
Resolution |
Accuracy |
| 10 to 600 V(RMS) |
0.1 V |
± (0.5%+3d) |
| Peak to Peak |
± (5%+30d) |
ACA
| Range |
Resolution |
Accuracy |
| 10.00A to 2000A |
0.01A * < 100A 0.1A * 100A and < 1000A 1A * 1000A |
± (1%+0.5A)≦ 200A |
| ± (5%+5A)> 200A |
| Peak to Peak |
± (5%+30d) |
Power factor
| Range |
Resolution |
Accuracy |
| 0.00 to 1.00 |
0.01 |
± 0.04 |
Φ (Phase angle)
| Range |
Resolution |
Accuracy |
| -180° to 180° |
0.1° |
± 1° *ACOS(PF) |
Frequency
| Range |
Resolution |
Accuracy |
| 45 to 65 Hz |
0.1 Hz |
± 0.1 Hz |
Active/Apparent/Reactive POWER
| Range |
Resolution |
Accuracy |
| 0.0 to 1.8M (W/VA/VAR) |
0.001K-0.001M(W/VA/VAR) |
± (1.5%+20d) |
Active/Apparent/Reactive POWER Hour:(WH/SH/QH)
| Range |
Resolution |
Accuracy |
| 0.000K to 9.9999M (WH/VAH/VARH) |
0.001K to 0.001M (W/VA/VARH) |
± (1.5%+20d) |
Harmonics Magnitude (Harmonic Level > 5% , Freq:50/60 Hz)
| |
Range |
Resolution |
Accuracy |
| ACV |
1 to 20th |
0.1V |
± (2%+5d) |
| 21 to 50th |
± (4%+5d) |
| ACA |
1 to 20th |
0.1A to 1A |
± (2%+5d) |
| 21 to 50th |
± (4%+5d) |
Harmonics Percentage (Harmonic Level > 5%, Freq:50/60 Hz)
| |
Range |
Resolution |
Accuracy |
| ACV |
1 to 20th |
0.1 % |
± (2%+10d) |
| 21 to 50th |
± (4%+20d) |
| ACA |
1 to 20th |
0.1 % |
± (2%+10d) |
| 21 to 50th |
± (4%+20d) |
Total Harmonic Distortion
| Range |
Resolution |
Accuracy |
| 0 to 20 % |
0.1 % |
± (2%+5d) |
| 1 to 100% |
± (6%+10d) |
Type K Temperature
| Range |
Resolution |
Accuracy |
| -100.0℃ to 199.9℃ |
0.1℃ |
± (1%+1℃ ) |
| 200℃ to 1300℃ |
1℃ |
± (1%+2℃) |
|
