TP_S系列
大功率直流電源供應器
產品描述
-
TP-S系列大功率直流電源供應器輸出功率從100W到5kW不等。
TP-S系列的輸出規格，可在功率範圍內根據使用者需求進行定制，最大輸出電壓為400V，最大輸出電流為150A。
設有OVP、OCP、OTP和OTP保護電路，可以更好的保護電源供應器機器負載。
使用者可以選配外部電壓控制、外部電流控制以及電壓回授功能。
功能特點
-
最大輸出功率從100W到5000W
-
最大輸出電壓可達400V，最大輸出電流可達150A
-
採用PWM控制技術
-
體積小，重量輕（約5-11kg）
-
定電壓及定電流操作，CV/CC自動切換
-

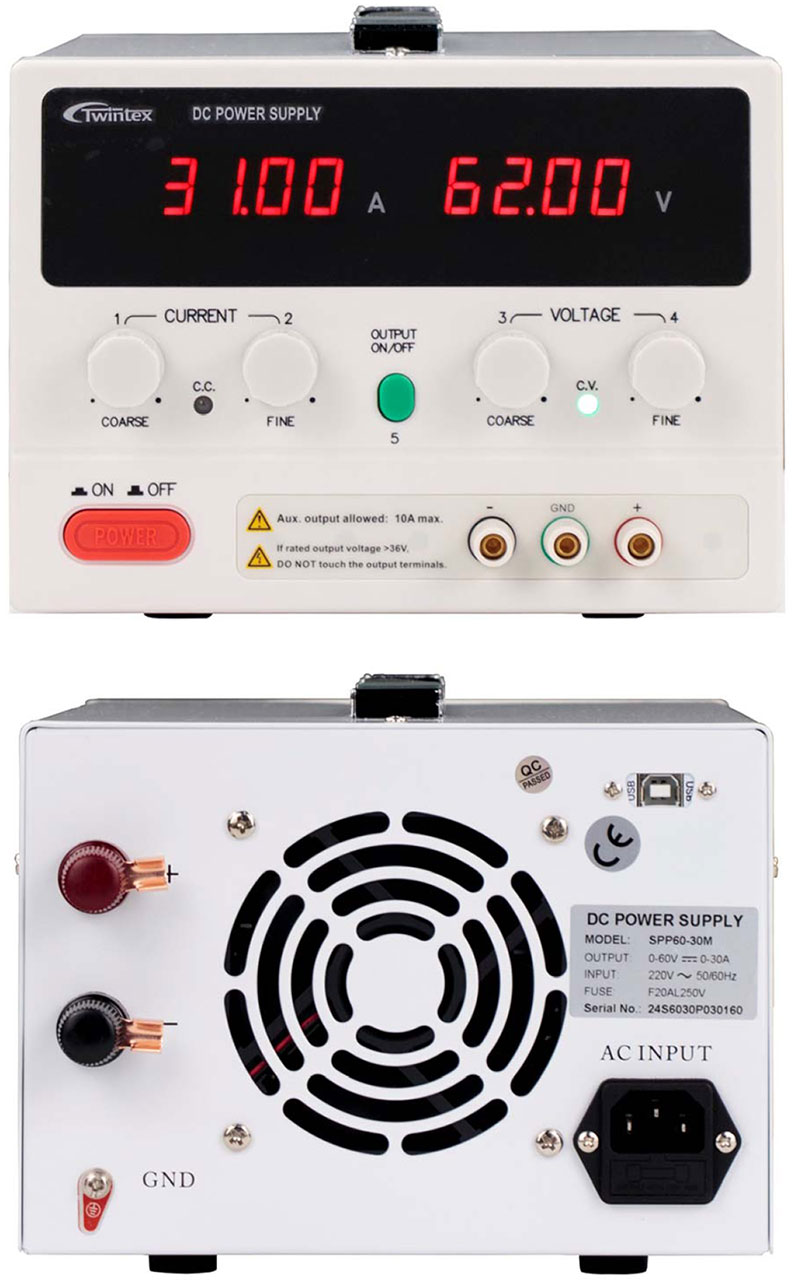

具有電壓、電流粗調和細調旋鈕
-
具有多重保護功能：OVP、OCP、OTP、OPP
-
智慧風扇控制
-
可選配10-0V外部電壓控制和0-10V外部電流控制
-
可選配遠端電壓回授功能
-
接受訂制
規格說明
輸出容量
(Output
capacity)：100W~5kW
工作模式 (Working
mode)：PWM
輸出 Output
- 輸出電壓 (OUTPUT VOLTAGE)：DC
0~100% full range adjustable
- 輸出電流 (OUTPUT CURRENT)：DC
0~100% full range adjustable
-
限壓保護 (OVP
range)：DC
0~100% of rated output
-
限流保護 (OCP
range)：DC
0~100% of rated output
- 線性調整率 (Line Regulation)：CV≤0.2%
+ 2d，CC≤0.5%
+ 2d
- 負載調整率 (Load Regulation)：≤
0.５% + ２d
- 漣波及雜訊 (Ripple & Noise)：≤1%
RMS
顯示
Display
-
顯示錶
(Meter)：3
1/2 digits LED display
-
電壓解析度 (Voltage
resolution)：100mV
-
電流解析度
(Current
resolution)：10mA
- 精確度 (Accuracy)：±1%
±1d
附加功能
Optional functions
- 遠端 ON/OFF 控制
(Remote
ON/OFF control)：Short
circuit to control OFF, Open circuit to control ON
- 顯示錶
(Display
meter)：4 1/2 digits LED display
一般
General
-
保護 (Protections)：Over
Voltage Protection (OVP), Over Current Protection (OCP), Over
Temperature, Protection (OTP), Over Power Protection (OPP)
-
輸入電源 (POWER SOURCE)：AC110V
or 220V±10%, 50/60Hz
-
輸入模式 (Input
module)：Power socket or terminal block
-
操作環境
(Operating
environment)：0℃~40℃,
<80%RH
-
儲存環境
(Storage
environment)：-10℃~70℃, <80%RH
-
體積大小 (DIMENSIONS)：260 x 160
x 380 mm
訂購資訊
|
High Power DC Power Supply Selection
Guide |
|
Model |
Output Voltage |
Output Current |
Output Capacity |
Input Module |
Weight (kg) |
|
TP15-30S |
0~15V |
0~30A |
450W |
Power socket |
5.6 |
|
TP15-50S |
0~15V |
0~50A |
750W |
Power socket |
5.6 |
|
TP15-60S |
0~15V |
0~60A |
900W |
Power socket |
5.6 |
|
TP15-80S |
0~15V |
0~80A |
1200W |
Power socket |
5.6 |
|
TP15-1HS |
0~15V |
0~100A |
1500W |
Power socket |
5.6 |
|
TP15-120S |
0~15V |
0~120A |
1800W |
Power socket |
5.6 |
|
TP15-150S |
0~15V |
0~150A |
2250W |
Terminal block |
11 |
|
TP30-30S |
0~30V |
0~30A |
900W |
Power socket |
5.6 |
|
TP30-50S |
0~30V |
0~50A |
1500W |
Power socket |
5.6 |
|
TP30-60S |
0~30V |
0~60A |
1800W |
Power socket |
5.6 |
|
TP30-80S |
0~30V |
0~80A |
2400W |
Terminal block |
11 |
|
TP30-1HS |
0~30V |
0~100A |
3000W |
Terminal block |
11 |
|
TP30-150S |
0~30V |
0~150A |
4500W |
Terminal block |
11 |
|
TP50-10S |
0~50V |
0~10A |
500W |
Power socket |
5.6 |
|
TP50-30S |
0~50V |
0~30A |
1500W |
Power socket |
5.6 |
|
TP50-50S |
0~50V |
0~50A |
2500W |
Terminal block |
11 |
|
TP50-60S |
0~50V |
0~60A |
3000W |
Terminal block |
11 |
|
TP50-80S |
0~50V |
0~80A |
4800W |
Terminal block |
11 |
|
TP50-1HS |
0~50V |
0~100A |
5000W |
Terminal block |
11 |
|
TP60-20S |
0~60V |
0~20A |
1200W |
Power socket |
5.6 |
|
TP60-30S |
0~60V |
0~30A |
1800W |
Power socket |
5.6 |
|
TP60-50S |
0~60V |
0~50A |
3000W |
Terminal block |
11 |
|
TP60-60S |
0~60V |
0~60A |
3600W |
Terminal block |
11 |
|
TP60-80S |
0~60V |
0~80A |
4800W |
Terminal block |
11 |
|
TP1H-1S |
0~100V |
0~1A |
100W |
Power socket |
5.6 |
|
TP1H-3S |
0~100V |
0~3A |
300W |
Power socket |
5.6 |
|
TP1H-5S |
0~100V |
0~5A |
500W |
Power socket |
5.6 |
|
TP1H-10S |
0~100V |
0~10A |
1000W |
Power socket |
5.6 |
|
TP1H-20S |
0~100V |
0~20A |
2000W |
Power socket |
5.6 |
|
TP1H-30S |
0~100V |
0~30A |
3000W |
Terminal block |
11 |
|
TP1H-50S |
0~100V |
0~50A |
5000W |
Terminal block |
11 |
|
TP150-10S |
0~150V |
0~10A |
1500W |
Power socket |
5.6 |
|
TP150-20S |
0~150V |
0~20A |
3000W |
Terminal block |
11 |
|
TP150-30S |
0~150V |
0~30A |
4500W |
Terminal block |
11 |
|
TP2H-1S |
0~200V |
0~1A |
200W |
Power socket |
5.6 |
|
TP2H-3S |
0~200V |
0~3A |
600W |
Power socket |
5.6 |
|
TP2H-5S |
0~200V |
0~5A |
1000W |
Power socket |
5.6 |
|
TP2H-10S |
0~200V |
0~10A |
2000W |
Power socket |
5.6 |
|
TP2H-20S |
0~200V |
0~20A |
4000W |
Terminal block |
11 |
|
TP3H-1S |
0~300V |
0~1A |
300W |
Power socket |
5.6 |
|
TP3H-3S |
0~300V |
0~3A |
900W |
Power socket |
5.6 |
|
TP3H-5S |
0~300V |
0~5A |
1500W |
Power socket |
5.6 |
|
TP3H-10S |
0~300V |
0~10A |
3000W |
Terminal block |
11 |
|
