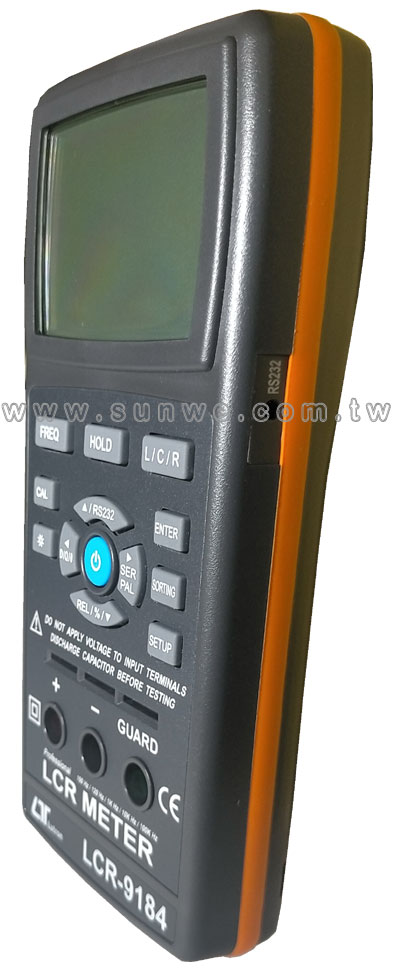

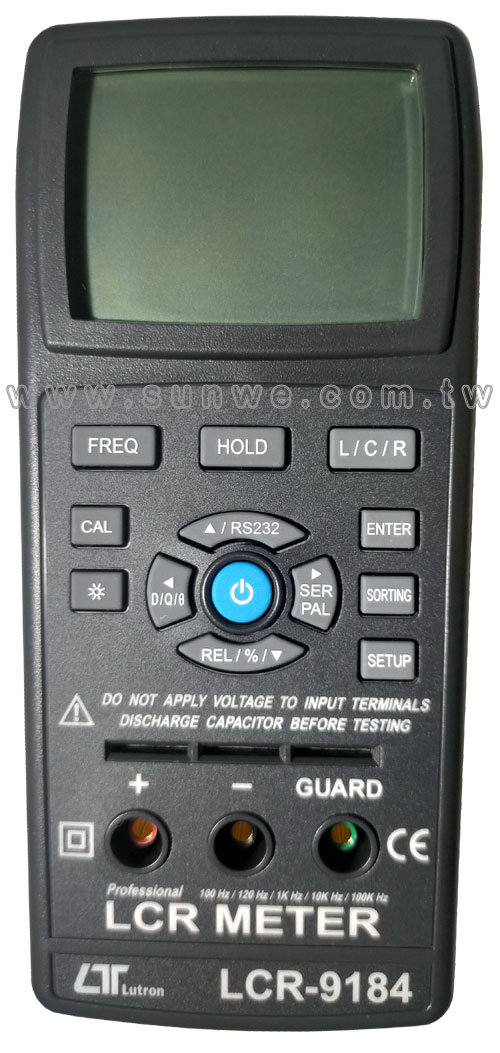

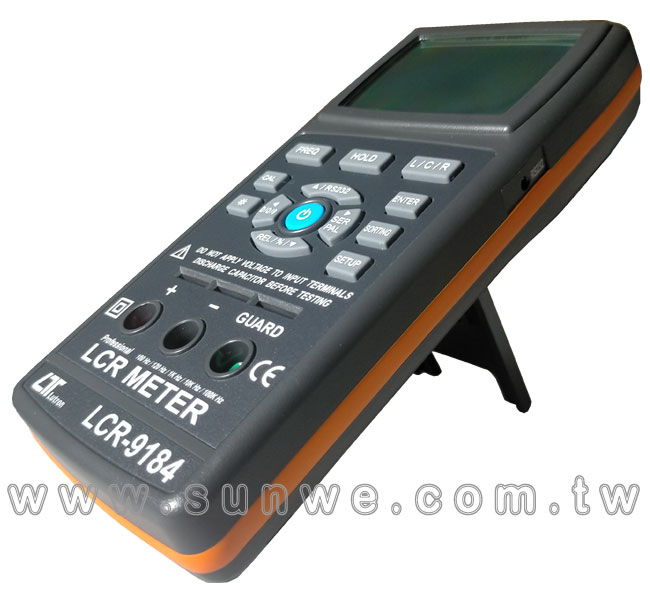

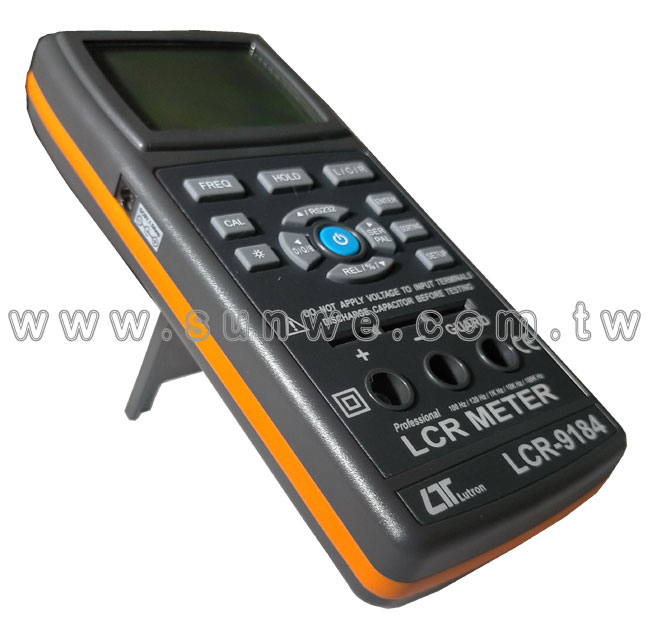

LCR-9184

專業型 LCR 錶

LCR-9184 專業型LCR錶-19,999/1999 計數 LCD 雙顯示'自動 LCR 智能檢查和測量'串/並聯模式可選 LS/ LP / CS / CP具 D / Q / θ / ESR 參數'支援 DCR 模式 1.00Ω至200.0MΩ'五種不同的測試頻率可供選擇：100 Hz/120 Hz/1 KHz/10 KHz/100 KHz.'AC測試信號電平：0.6 Vrms'測試範圍：( ex. F = 1 KHz )'L : 200.00 uH to 2000.0 H'C : 2000.0 pF to 2.000 mF'R : 20.000Ω to 200.0 MΩ'多層級電池檢測器'LCD具綠色背光燈，方便閱讀'RS232/USB 電腦連接介面'具自動關機功能,由上偉科技專業銷售'工程安裝'維修服務,洽詢電話02-22267567(代表號)由專人服務

特色

19,999/1999 計數 LCD 雙顯示

自動 LCR 智能檢查和測量

串/並聯模式可選

LS/ LP / CS / CP具 D / Q / θ / ESR 參數

支援 DCR 模式 1.00Ω至200.0MΩ

五種不同的測試頻率可供選擇：100 Hz/120 Hz/1 KHz/10 KHz/100 KHz.

AC測試信號電平：0.6 Vrms

測試範圍：( ex. F = 1 KHz )

L : 200.00 uH to 2000.0 H

C : 2000.0 pF to 2.000 mF

R : 20.000Ω to 200.0 MΩ

多層級電池檢測器

LCD具綠色背光燈，方便閱讀

RS232/USB 電腦連接介面

具自動關機功能

FEATURES

19,999/1,999 counts dual LCD display.

AutoLCR smart check and measurement.

Serial/Parallel modes are selectable.

Ls/Lp/Cs/Cp with D/Q/θ /ESR parameters.

Support DCR mode 1.00 Ω to 200.0 MΩ .

Five different test frequency are available : 100 Hz/120 Hz/1 KHz/10 KHz/100 KHz.

Test AC signal level : 0.6 V rms typically.

Test range : ( ex. F = 1 KHz )

L : 200.00 uH to 2000.0 H

C : 2000.0 pF to 2.000 mF

R : 20.000Ω to 200.0 MΩ

Multi-level battery detector.

LCD with green light backlight，easy reading.

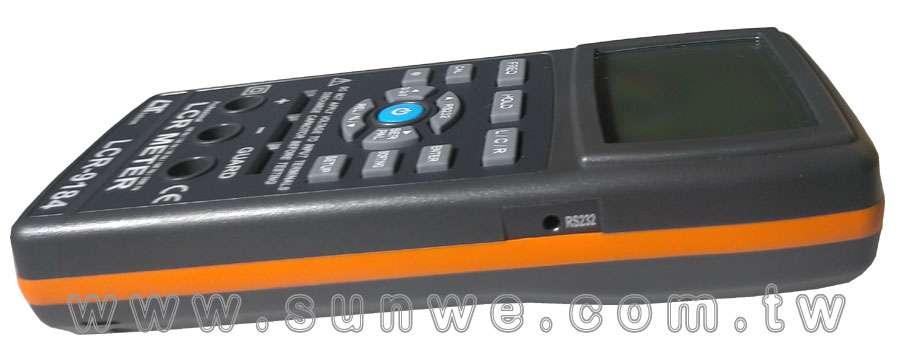

RS232/USB PC Computer interface.

Can default auto power off.

一般規格

顯示 (Display)

LCD size：56.4 X 52.9 mm，LCD with green backlight ( ON /OFF )

測試頻率 (Test frequency)

100 Hz/120 Hz/1 KHz/10 KHz/100 KHz

功能 (Function)

L/C/R Function selector

Frequency selector

D/Q/θ selector

Sorting mode selector

Backlight

耗散因數 (Dissipation factor)

0.000 to 999

品質因數 (Quality factor)

0.000 to 999

θ測量 (θ measurement)

± 90°

排序公差模式 (Sorting tolerance modet)

± 0.25%, ± 0.5%, ± 1%, ± 2%, ± 5%, ± 10%, ± 20%, +80% -20%

校準 (Calibration)

Open/Short calibration

讀值鎖定 (Data Hold)

Freeze the display reading

資料輸出 (Data output)

RS232/USB PC computer interface

關機 (Power off)

Auto shut off saves battery life or manual off by push button

操作溫度 (Operating Temp.)

0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ).

操作溼度 (Operating Humidity)

Less than 85% RH.

電源供應 (Power Supply)

006P DC 9V battery. heavy duty battery.

DC 9V adapter input * AC/DC power adapter is optional.

電源消耗 (Power Consumption)

DC 16 mA approximately * Under LCD backlight off.

體積 (Dimensions)

193 x 88 x 41mm

重量 (Weight)

420 g * meter only

附件 (Accessories Included)

Instruction Manual ................. 1 PC.

Alligator clips ( red and black).....1 Pair

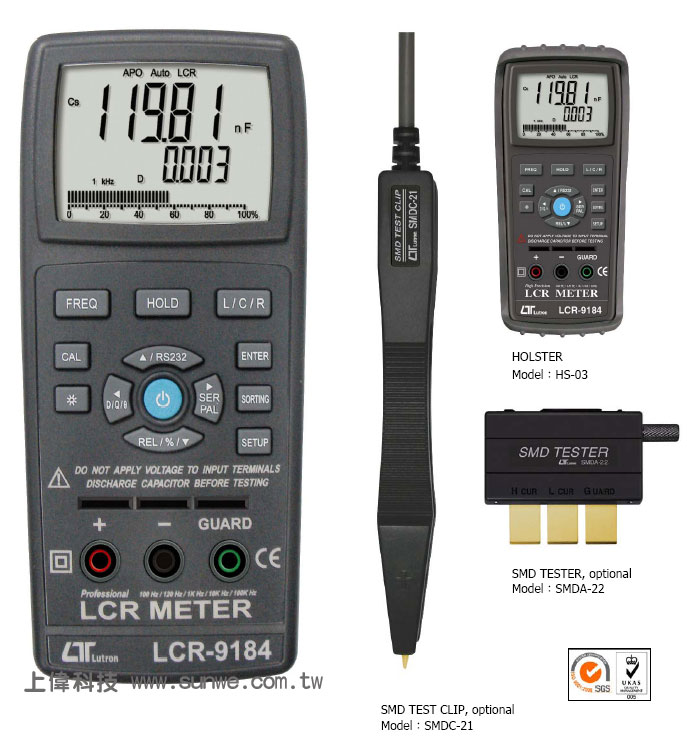

選購附件 (Optional Accessories)

SMD tester, SMDA-22

SMD test clip, SMDC-21

Holster, HS-03

AC to DC 9V adapter

Hard carrying case, CA-06

Soft carrying case, CA-05A

USB cable, USB-01

Excel data acquisition software, SW-E803

電器規格 (23±5 ℃)

電阻 Resistance ( DCR )

Range	Accuracy	Remark
20 Ω	± ( 0.5% + 5d )	After Short CAL.
200 Ω	± ( 0.5% + 5d )
2 KΩ	± ( 0.5% + 5d )
20 KΩ	± ( 0.5% + 5d )
200 KΩ	± ( 0.5% + 5d )
2 MΩ	± ( 0.5% + 5d )	After Open CAL.
20 MΩ	± ( 1% + 5d )	After Open CAL.
200 MΩ	± ( 2% + 5d )	After Open CAL.

電阻 Resistance(Z) ( Rp/Rs )

Range	Accuracy 100 Hz/120 Hz	Accuracy 1000 Hz	Accuracy 10 KHz	Accuracy 100 KHz	Remark
20 Ω	± ( 1% + 5d )	± ( 1% + 5d )	± ( 1% + 5d )	± ( 2% + 5d )	After Short CAL.
200 Ω	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )
2 KΩ	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )
20 KΩ	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )
200 KΩ	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )
2 MΩ	± ( 1% + 5d )	± ( 1% + 5d )	± ( 1% + 5d )	± ( 2% + 5d )	After Open CAL.
20 MΩ	± ( 1% + 5d )	± ( 2% + 5d )	± ( 2% + 5d )	--------	After Open CAL.
200 MΩ	± ( 2% + 5d )	± ( 5% + 5d )	--------	--------	After Open CAL.

電容 Capacitance ( Cp/Cs ) : D ≦ 0.1

Range	Accuracy 100 Hz/120 Hz	Accuracy 1000 Hz	Accuracy 10 KHz	Accuracy 100 KHz	Remark
20 pF	± ( 2% + 5d )	± ( 1% + 5d )	± ( 1% + 5d )	± ( 1% + 5d )	After Open CAL.
200 pF	± ( 1% + 5d )	± ( 1% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )	After Open CAL.
2000 pF	± ( 0.8% + 5d )	± ( 0.8% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )	After Open CAL.
20 nF	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )
200 nF	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )
2000 nF	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )
20 uF	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.8% + 5d )	± ( 0.8% + 5d )
200 uF	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 1% + 5d )	--------	After Short CAL.
2000 uF	± ( 1% + 5d )	± ( 1% + 5d )	--------	--------	After Short CAL.
20 mF	± ( 2% + 5d )	--------	--------	--------	After Short CAL.

電感 Inductance ( Lp/Ls ) : D ≦ 0.1

Range	Accuracy 100 Hz/120 Hz	Accuracy 1000 Hz	Accuracy 10 KHz	Accuracy 100 KHz	Remark
20 uH	± ( 1% + 5d )	± ( 1% + 5d )	± ( 1% + 5d )	± ( 1% + 5d )	After Short CAL.
200 uH	± ( 1% + 5d )	± ( 1% + 5d )	± ( 0.8% + 5d )	± ( 0.8% + 5d )	After Short CAL.
2000 uH	± ( 0.8% + 5d )	± ( 0.8% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )
20 mH	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )
200 mH	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )	--------
2000 mH	± ( 0.5% + 5d )	± ( 0.5% + 5d )	± ( 0.5% + 5d )	--------
20 H	± ( 0.5% + 5d )	± ( 0.5% + 5d )	--------	--------
200 H	± ( 0.5% + 5d )	± ( 0.8% + 5d )	--------	--------
2000 H	± ( 1% + 5d )	--------	--------	--------	After Open CAL.

　

　

　

　

　

　

　

　
