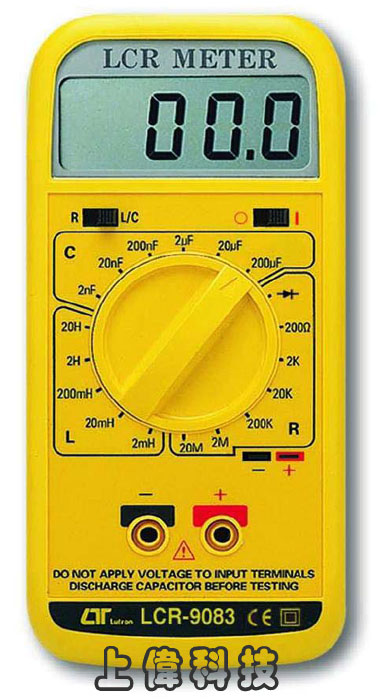

LCR-9083
專業型 LCR
錶
簡介
-
3½
大型液晶顯示器，最大顯示值1999
-
可測電感’電容’電阻及二極體測試
-
電感：1uH ~ 20H，分為5檔
-
電容：1pF ~ 200uF，分為6檔
-
電阻：0 ~ 20M歐姆，分為6檔
-
Size：185
X 87 X 39mm
一般規格
顯示 (Display)
- 18 mm ( 0.7" ) LCD, Max. reading
1999.
測量 (Measurement)
- Indctance : 2mH to 20H , 5
ranges.
- Capacitance : 2nF to 200uF , 6
ranges
- Resiatnce : 200ohm to 20M Ohm , 6
ranges.
- Diode test
過載輸入顯示
(Over-input indicator)
- " 1 " mark indication.
取樣時間 (Sampling
Time)
- Approx. 0.4 second.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ).
操作溼度 (Operating
Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- 006P DC 9V battery. heavy duty
battery.
體積 (Dimensions)
- 185 x 87 x 39 mm( 7.3 x 3.4 x 1.5
inch )
重量 (Weight)
- 280 g / 0.62 LB.
電源消耗 (Power Consumption)
- R measurement : Approx. 9 mA max.
- L & C measurement : Approx. 13 mA
max.
附件 (Accessories
Included)
- Test alligator clips
.................. 1 pair
- Instruction Manual
................. 1 PC.
電器規格 (23±5 ℃)
電感 (Inductance)
|
Range |
In-range Display |
Resolution |
Test Frequency |
Accuracy |
|
* 2 mH |
10 uH-2 mH |
1 uH |
250 Hz |
±
(3 % + 3 d) |
|
20 mH |
2 mH-20 mH |
10 uH |
250 Hz |
|
200 mH |
20 mH-200 mH |
100 uH |
250 Hz |
|
2 H |
0.2 H-2 H |
1 mH |
250 Hz |
±
(5 % + 5 d) |
|
20 H |
2 H-20 H |
10 mH |
250 Hz |
- uH = micro Henry (10^-6 H).
- mH = mili Henry (10^-3 H).
- Zero stray inductance of 2 mH
range (short ckt.) : 0 to -30 uH.
電容 (Capacitance)
|
Range |
In-range Display |
Resolution |
Test Frequency |
Accuracy |
|
* 2 nF |
10 pF-2 nF |
1 pF |
250 Hz |
±
(3 % + 3 d) |
|
20 nF |
200 pF-20 nF |
10 pF |
250 Hz |
|
200 nF |
2 nF - 200 nF |
100 pF |
250 Hz |
|
2 uF |
.02 uF - 2 uF |
1 nF |
250 Hz |
|
20 uF |
0.2 uF - 20 uF |
10 nF |
250 Hz |
|
200 uF |
2 uF - 200 uf |
100 nF |
250 Hz |
- pF= pico Farad (10^-12 F)
nF= nano Farad (10^-9 F)
- uF= micro Farad (10^-6 F)
- * Zero stray capacitance of 2 nF
range (open ckt.) : 30 pF
電阻 (Resistance)
|
Range |
Resolution |
Open Circuit
Voltage |
Accuracy |
|
200 ohm |
0.1 ohm |
Approx.DC 3 V |
±
( 2 % + 3 d ) |
|
2 k |
1 ohm |
|
20 k |
10 ohm |
|
200 k |
100 ohm |
|
2000 k |
1 k |
|
20 M |
10 k |
Approx DC 1.5 V |
二極體 (Diode)
- * Short/non conductance,
good/defect test
- * Approx. diode forward voltage (
VF ) measurement.
- * Open circuit voltage is DC 3 V.
|
