DI-6400 絕緣阻抗測試器(高阻計)-上偉科技www.sunwe.com.tw

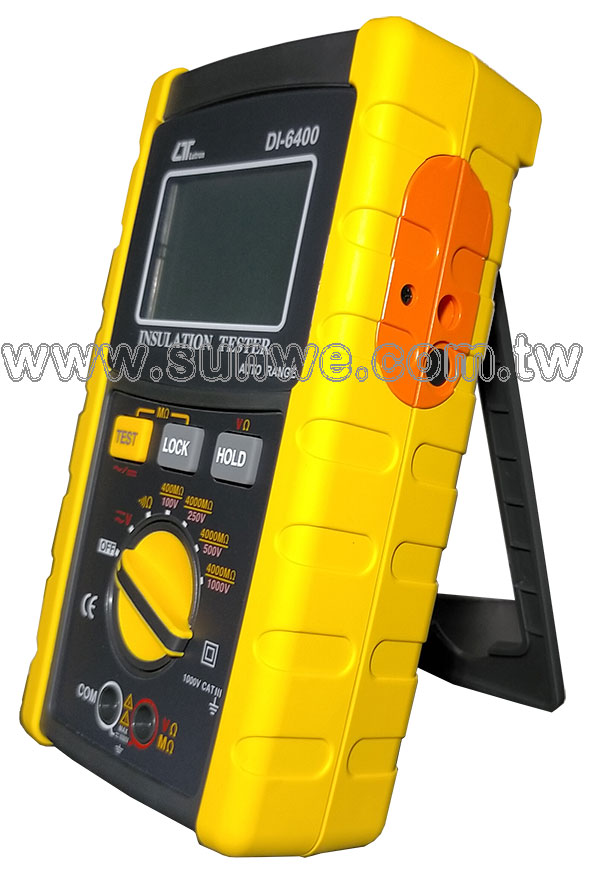

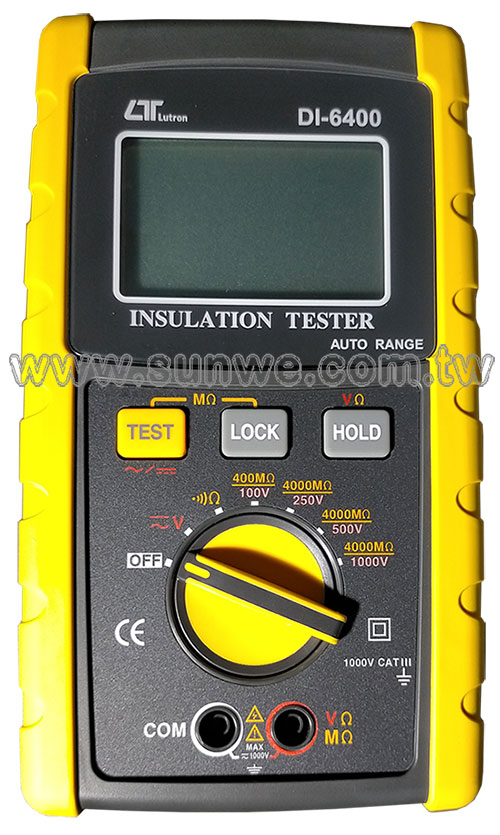

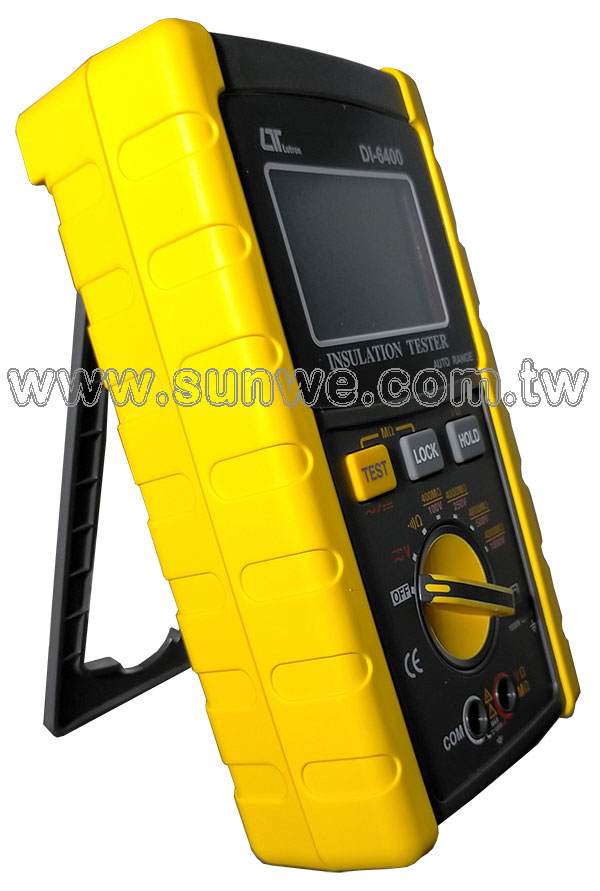

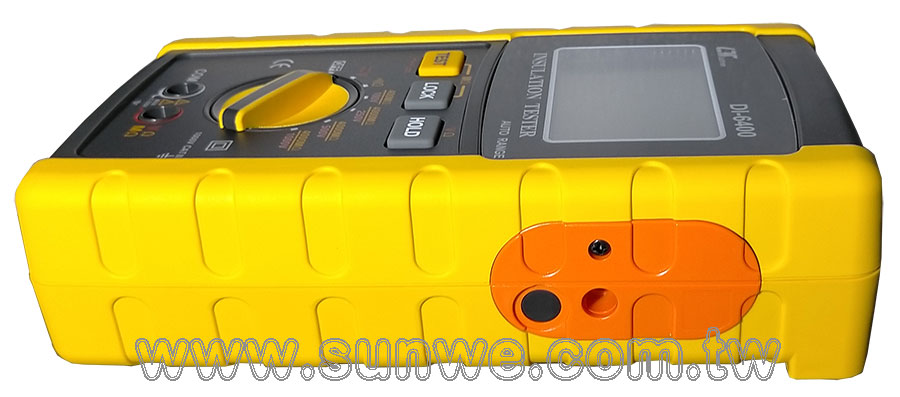

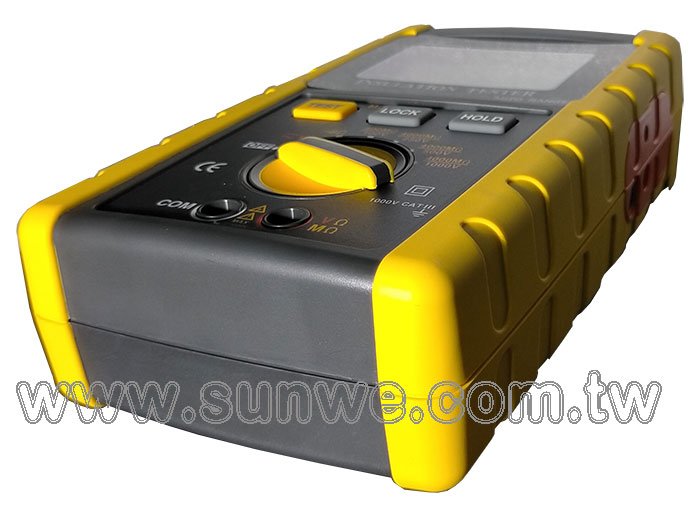

DI-6400

絕緣阻抗測試器

(高阻計)

DI-6400絕緣阻抗測試器 (高阻計)-測量範圍：4MΩ / 40MΩ / 400MΩ / 4000MΩ(100V / 250V / 500V / 1000V) CAT Ш 1000V'電阻：0 ~ 400Ω /4000Ω . 自動換檔'導通蜂鳴測量'交流電壓：0 ~ 600.0V'採用大型液晶顯示器，容易讀取'自動放電迴路設計'內建過載保護裝置及電力不足指示功能'RS-232 / USB 連接介面,由上偉科技專業銷售'工程安裝'維修服務,洽詢電話02-22267567(代表號)由專人服務

特色

測量範圍：

4MΩ / 40MΩ / 400MΩ / 4000MΩ

(100V / 250V / 500V / 1000V)

CAT Ш 1000V

電阻：0 ~ 400Ω /4000Ω .

自動換檔.導通蜂鳴測量

交流電壓：0 ~ 600.0V

採用大型液晶顯示器，容易讀取

自動放電迴路設計

內建過載保護裝置及電力不足指示功能

RS-232 / USB 連接介面 (軟體選購)

Size：160 X 120 X 85mm

FEATURES

Digital display, easy and correct read-out.

Auto-range and multi-function for insulation measurement of 4/40/400/4000 MΩ ( 100 V, 250 V, 500 V, 1000 V ).

Insulation measurement with auto discharge function, safety.

Build in the ACV & DCV & OHMS measurement function.

Precision 400 ohm & 4000 ohm auto-range easy for measuring low resistance such as motor windings, relay coils etc.

A continuity beeper is equipped in OHM range.

Data hold function to lock the current reading.

Lock & Test functions offer worker's safety and easy operation.

77 X 49 mm (1.06" height) large LCD display.

Battery operating easily to carry with user.

LCD display allows clear read-out even at bright place.

LSI-circuit provides high reliability and durability.

Built-in over-input and low battery indication.

Overload protection for each range.

Automatic zero adjust & automatic circuit discharge.

Durable & portable housing case with the front protective cover.

RS-232 computer interface.

一般規格

顯示 (Display)

27 mm (1.06") LCD (Liquid Crystal Display),

Max. indication : 6100 ( V ), 4200 ( MΩ ), 4200 ( Ω ).

測量 (Measurement)

Insulation :

4/40/400 MΩ /100 V

4/40/400/4000 MΩ /250 V

4/40/400/4000 MΩ /500 V

4/40/400/4000 MΩ /1000 V

DCV : 600.0 V

ACV : 600.0 ACV

OHMS : 400.0/4000 Ω

取樣時間 (Sampling Time)

0.4 second.

四百萬歐姆反應時間 (4Mega ohm Respond Time)

Max. approx. 4.0 second.

歸零調整 (Zero Adjustment)

Automatic adjustment.

過載輸入顯示 (Over-input)

Indication of "- - - -" .

操作溫度 (Operating Temp.)

0 ℃ to 50℃ ( 32 ℉ to 122 ℉ ).

操作溼度 (Operating Humidity)

Less than 80 % R.H.

電源供應 (Power Supply)

1.5V AA ( UM-3 ) battery x 8 PCs, alkaline or heavy duty battery).

電源損耗 (Power Consumption)

Approx. 112 mA (100M ohm/1000V range).

Approx. 70 mA (100 M ohm/500V range).

Approx. 58 mA (100 M ohm/250V range).

Approx. 53 mA (100 M ohm/100V range).

Approx. 18 mA ( ACV range).

Approx. 18 mA ( DCV range).

Approx. 65 mA (0 ohm/OHM range).

體積 (Dimension)

225 x 125 x 64 mm (8.86 x 4.92 x 2.52 inch)

重量 (Weight)

819 g / 1.80 LB (includes 8 PCs batteries).

附件 (Standard Accessories)

Instruction Manual .................1 PC.

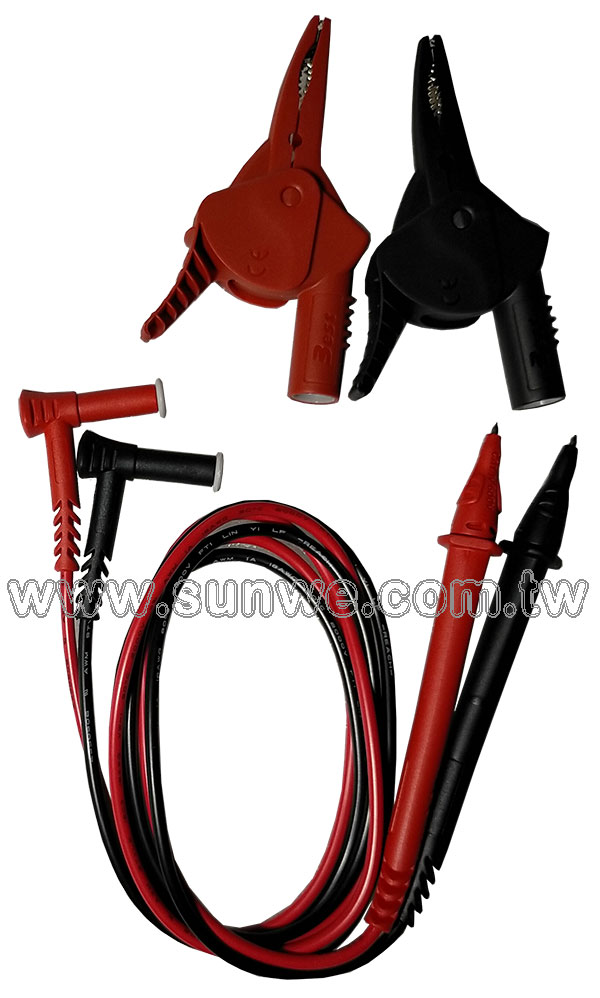

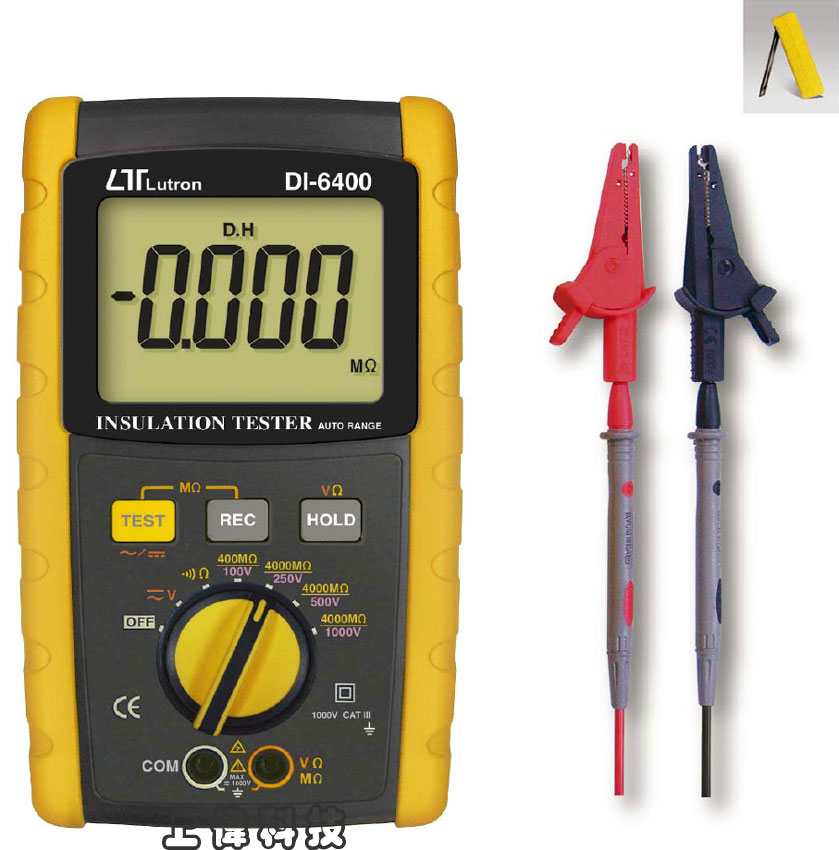

Test leads ( TL-88 )............... 1 set

Heavy duty alligators ( AL-05 ).....1 pair

選購附件 (Optional Accessories)

RS232 cable, UPCB-02

USB cable, USB-01

Data Acquisition software, SW-U801-WIN

電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃

百萬歐姆 (Mega ohm)

Range

Accuracy

Resolution

4/40/400/4000 M ohm

(100V/250V/500V/1KV)

± ( 3% + 5d)

< 2000 M ohm

1 K/10 K/0.1 M/1 M ohm

± ( 5% + 5d)

≧ 2000 M ohm

< 4000 M ohm

歐姆 (ohm)

Range	Accuracy	Resolution	Open Circuit voltage
400/4000 ohm	± ( 1% + 2d)	0.1/1 ohm	Approx. 4.7 V

* Overload Circuit Protection AC/DC 500V (within 20 sec)

直流電壓 (DC VOLTAGE)

Range	Accuracy	Resolution	Input Impedance
600 DCV	± ( 1.5% + 2d)	0.1 DCV	10 M ohm

* Overload Circuit Protection AC/DC 600V

交流電壓 (AC VOLTAGE)

Range	Accuracy	Resolution	Input Impedance
600 ACV	± (1% + 2d)	0.1 ACV	10 Megohm

* Overload Circuit Protection AC/DC 600V

　

　

　

　

　

　

　

　

　
