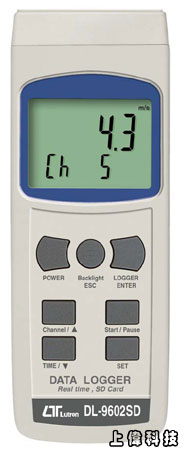

DL-9602SD
資料集錄器
特色
- 適用 Lutron 所生產具有RS-232輸出介面之儀錶
- 即時將儀表輸出數據紀錄儲存於SD記憶卡 , 資料可下載到Excel,座圖表分析 (記憶卡選購)
- 內建時間功能,時間顯示及時間記錄功能
- 自動記錄取樣時間:2秒~8時59分59秒
- 手動記錄,即時紀錄數據,可設定99組數據文件
- 紀錄比數:可達數百萬數據資料
- Size:178 x 68 x 44mm
FEATURES
- Real time SD memory card Datalogger, it can cooperate with most LUTRON instruments if it build in the computer interface.
- Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 8 hours 59 minutes 59 seconds.
- Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different place ( location ) No. ( place 1 to place 99 ).
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in
- the SD card into the computer, it can down load the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
- SD card capacity :
1 GB to 16 GB.
- Can set the numerical decimal point character to " . " or " , " with default, then Datalogger data that saved into the SD card can be used in different country.
- Can set max. 9 channels data input with default.
- DC 1.5V battery ( UM-3 , AA ) x 6 or DC 9V adapter in.
- LCD with green light backlight, easy reading.
- RS232 signal output, can connect the external computer.
|
|
