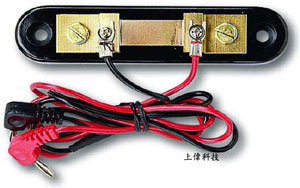

ST-50
50A/50mV 比流器
特色
- 範圍:交直流電流 (ACA/DCA) 0~ 50A
- 交流(AC)輸出:1ACmV=1ACA
- 直流(DC)輸出:1DCmV=1DCA
- Size : 135 x 30 x 30mm
規格
| Range |
0-50 DCA, 0-50 ACA. |
| Output |
ACA : 1 AC mV per 1 ACA.
DCA : 1 DC mV per 1 DCA. |
| Accuracy |
± (0.8% + 0.2 mV). |
| Operating Temperature |
0 to 50℃ ( 32 to 12℉2 ). |
| Operating Humidity |
Less than 90% RH. |
| Dimension |
135x35x30 mm (5.3x1.4x1.2 inch). |
| Weight |
53g/0. 12 LB. |
| Accessory Included |
Instruction manual ...........1 PC. |
| Application |
Math DMM to extend the current measuring range into 50 Amp. both of DCA & ACA. |
| Overload Protection |
100 Amp. 1 min. |
|
|
