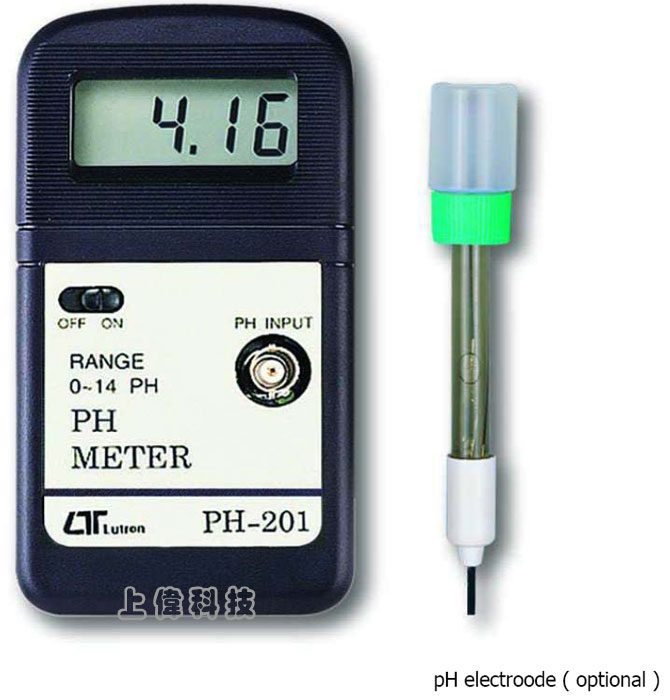

PH-201

迷你型酸鹼計

特色

測量範圍 : 0 ~ 14.00 PH

精確度 : ±0.1PH

體積小'攜帶方便

校正調整 :

PH4 (斜率調整)

PH7 (零點調整)

Size : 131 x 70 x 25mm

一般規格

特性 (Features)

* Economical cost digital PH meter

* General purpose applications.

* Easy operation.

* Compact size, light weight.

顯示 (Display)

LCD size : 45 mm x 29 mm.

測量 (Measurement)

pH

範圍/解析度 (Range/Resolution)

0 to 14 pH x 0.01 pH

精確度 (Accuracy)

± 0.07 pH ( pH 5 - pH 9 )

± 0.1 pH ( pH 4 - pH 10 )

± 0.2 pH ( pH 1 - pH 3.9, pH 10.1 - pH 13 )

* Main instrument only.

輸入阻抗 (Input Impedance)

10^12 ohms

溫度補償 (PH range Temperature Compensation)

Not necessary to make adjustment.

取樣時間 (Sampling Time)

Approx. 0.4 sec

校正VR (Calibration VR)

External pH 4 ( slope adj. ) & pH 7 ( Cal. adj. ) calibration adjustment VR.

操作溫度 (Operating Temp. )

0 to 50 ℃.  (32 to 122 ℉ ).

操作溼度 (Operating Humidity)

Less than 80% R.H.

電源供應 (Power Supply)

006P DC 9V battery.

電源電流 (Power Current)

 Approx. DC 2.0 mA

重量 (Weight)

153 g/0.34 LB (including battery).

體積 (Dimension)

131 x 70 x 25 mm,(5.3 x 2.4 x 1.3 inch).

選購 PH電極 (pH electrode) Optional

Any pH electrode with BNC plug.

附件 (Standard Accessory)

Instruction Manual................... 1 PC

選購附件 (Optional accessories)

pH electrode, pH 4, pH 7 buffer solution, Accessories Carrying case, Case holder.

選購附件說明

PH ELECTRODE PE-03

General purpose pH electrode with BNC connector.

Range : 1 to 13 pH ( typical 0 to 14 pH ).

Epoxy body, Body size : 12 mm dia. x 160 mm. Cable length : 1 meter.

PH ELECTRODE PE-11

General purpose & high quality pH electrode with BNC connector.

Range : 1 to 13 pH ( typical 0 to 14 pH ).

Epoxy body, Body size : 9.5 mm dia. x 120 mm.Cable length : 1 meter.

PH ELECTRODE PE-01

High quality, Professional, Laboratory & field usage.

Range : 0 to 14 pH.

Epoxy body, Body size : 9.5 mm dia. x 120 mm.Cable length : 0.75 meter.

SPEAR TIP PH ELECTRODE PE-04HD

Ideal for penetration pH measurements into meats, cheese, soil and other types of measurements requiring sample penetration.

Range : 0 to 14 pH.

SPEAR TIP PH ELECTRODE PE-06HD

Ideal for penetration pH measurements into meats, cheese, soil and other types of measurements requiring sample penetration.

Range : 1 to 13 pH.

BUFFER SOLUTION, PH-07

pH 7.00 standard buffer solution.

BUFFER SOLUTION, PH-04

pH 4.00 standard buffer solution.

CARRYING CASE, CA-52A

Vinyl soft case for PH-201.

CARRYING CASE, CA-06

Hard carrying case for PH-201.

應用 (APPLICATIONS)

* AQUARIUMS

* PLATING INDUSTRY

* LABORATORY

* BEVERAGE

* QUALITY CONTROL

* SCHOOLS & COLLEGES

* FISH HATCHERIES

* FOOD PROCESSING

* SWIMMING POOLS

* PAPER INDUSTRY

* PHOTOGRAPHY

* WATER CONDITIONING

　
