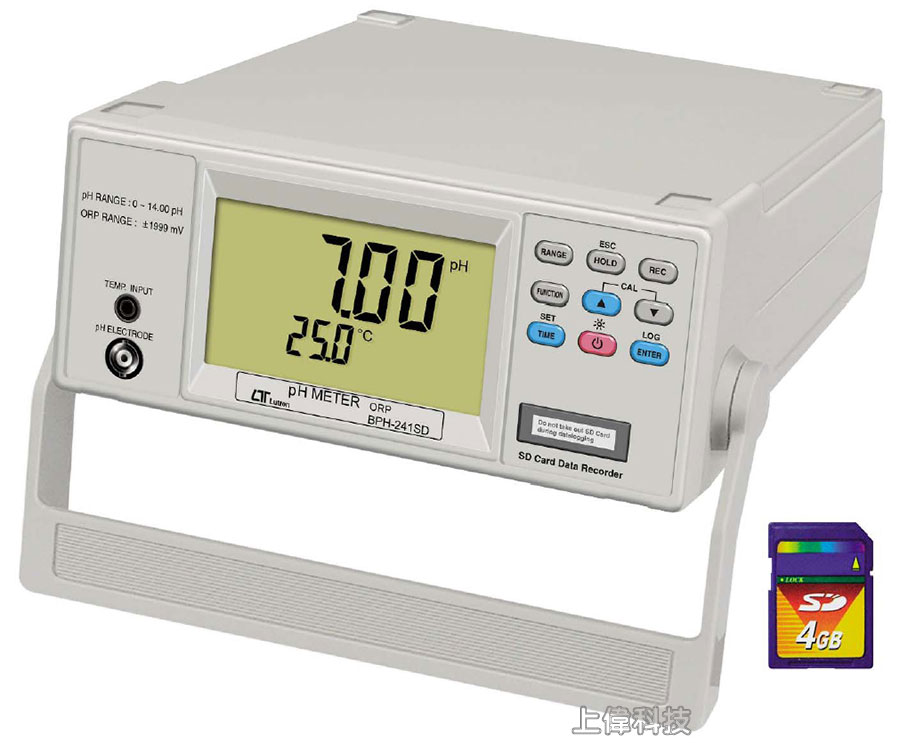

BPH-241SD

記憶式桌上型酸鹼計

特色

即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)

測量範圍 :

PH: 0 ~ 14.00 PH ±0.02PH

溫度: 0 ~ 65°C ±0.8°C

mV: -1999mV ~ +1999mV ±0.5%

PH4，PH7，PH10 (三點式校正調整)

雙視窗同時顯示PH值及溫度

可記錄最大值,最小值及讀值鎖定.

RS-232 / USB 輸出介面 (軟體選購)

Size : 290 x 220 x 90mm

FEATURES

Bench type pH/ORP METER.

Multi-function : pH measurement, ORP ( mV ) measurement.

pH : 0 to 14.00 pH.

ORP ( mV ) : -1,999 mV to 1999 mV.

pH measurement can make the auto calibration for pH 7, pH 4 and pH 10 or other value.

Separate probe, easy for operation of different measurement environment.

Wide applications: water conditioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water

Real time SD memory card Data logger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 sec to 8 hour 59 min. 59 sec.

Innovation and easy operation, computer is not need to setup extra software, after execute data logger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.

LCD with green light backlight, easy reading.

Can default auto power off or manual power off.

Microcomputer circuit, high accuracy.

ATC ( automatic temperature compensation ).

Data hold, Record ( Max., Min. ).

RS232/USB computer interface.

SD card capacity : 1 GB to 16 GB.

Power by DC 1.5 V ( AA/UM-3 alkaline type ) battery x 6 PCs or DC 9V adapter in.

Optional pH electrodes.

一般規格

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

顯示 (Display)

LCD size : 56 mm x 97 mm

LCD with green backlight ( ON/OFF ).

測量功能 (Measurement Function)

pH measurement, ORP ( mV ) measurement.

資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)

Auto :  1 sec to 8 hour 59 min. 59 sec @ Sampling time can set to 1 second, but memory data may loss.

Manual : Push the data logger button once will save data one time.

@ Set the sampling time to 0 second. @ Manual mode, can also select the 1 to 99 position ( Location ) no.

記憶卡 (Memory Card)

SD memory card. 1 GB to 16 GB.

優越的設定 (Advanced setting)

* SD memory card Format

* Set clock time ( Year/Month/Date, Hour/Minute/ Second )

* Set sampling time

* Auto power OFF management

* Set beep Sound ON/OFF

* Decimal point of SD card setting

* Set temperature unit to ℃ or ℉

* Set pH manual Temp. compensation value

資料鎖定 (Data hold)

Freeze the display reading.

記憶回叫 (Memory Recall)

Maximum & Minimum value.

取樣時間 (Sampling Time)

Approx. 1 sec

資料輸出 (Data Output)

RS 232/USB PC computer interface.

* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.

* Connect the optional USB cable USB-01 will get the USB plug.

操作溫度 (Operating Temp. )

0 ℃ to 50 ℃(32 ℉ to 122 ℉).

操作溼度 (Operating Humidity)

Less than 85% R.H.

電源供應 (Power Supply)

Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.

DC 9V adapter input.

* AC/DC power adapter is optional.

電源電流 (Power Current)

Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 14 mA

When SD card save the data but and LCD Backlight is OFF) : Approx. DC 34 mA.

* If LCD backlight on, the power consumption will increase approx. 5 mA.

重量 (Weight)

1400 g/3.08 LB.

體積 (Dimension)

290 x 220 x 90 mm ( 11.5 x 8.7x 3.6 inch ) * Meter only

附件 (Standard Accessory)

Instruction Manual.................1 PC

選購附件 (Optional accessories)

pH electrodes :

* PE-03, PE-11, PE-01, PE-06HD, PE-06HDA, PE-04HD, PE-03K7, PE-02, PE-08, PE-21.

* ATC probe for pH ( Automatic Temperature Probe )...... TP-07.

* pH 7 buffer solution............PH-07, PH-07A.

* pH 4 buffer solution............PH-04, PH-04A.

* ORP Electrode.............ORP-14, ORP-15

* AC to DC 9V adapter.

* USB cable, USB-01.

* RS232 cable, UPCB-02.

* Data Acquisition software, SW-U801-WIN.

S* SD memory card ( 4G ).

電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)

PH 電極 (pH Electrode)

Optional,Any pH electrode with BNC connector.

ORP 電極 (ORP Electrode)

Optional,ORP-14, ORP-15.

測量 (Measurement)

PH：0 to 14 pH

mV ( ORP )：-1999 mV to 1999 mV

輸入阻抗 (Input Impedance)

10^12 ohms

溫度補償 (Temperature Compensation for pH measurement)

Manual : 0 ℃ to 100℃ be adjusted by push button on front panel.

Automatic ( ATC ) : with the optional temp. probe ( TP-07 ), 0 to 65 ℃.

PH 校正 (PH Calibration)

pH 7, pH 4, and pH 10, 3 points calibration ensure the best linearity and accuracy.

選購測棒及附件 (Optional probe and accessories)

pH electrodes：PE-03, PE-11, PE-01, PE-02, PE-08, PE-21, PE-06HDA, PE-04HD, PE-03K7.

ATC ( automatic temperature probe )..................................TP-07

pH 7 buffer solution............PH-07, PH-07A

pH 4 buffer solution............PH-04, PH-04A

ORP electrode........................ORP-14,ORP-15

Measurement	Measuring Range	Resolution	Accuracy
pH	0 to 14 pH	0.01 pH	± (0.02 pH + 2 d) * Meter only
mV	0 to ± 1999 mV	1 mV	± (0.5% + 2 d) * Meter only

* Above accuracy is based on calibrated meter only.

ATC Temperature ( w/ optional probe , TP-07 @ 23± 5 ℃

Functiont	Measuring Range	Resolution	Accuracy
℃	0 ℃ to 60 ℃	0.1 ℃	± 0.8 ℃
℉	32 ℉ to 140 ℉	0.1 ℉	± 1.5 ℉

　
