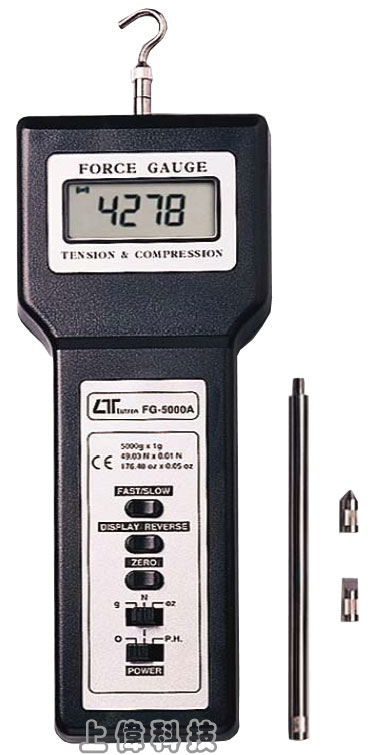

FG-5000A/FG-5000A-RS
拉壓力計
特色
- 秤量範圍 : 3 ~ 5000公克±0.4%
- FG-5000A-RS有RS-232連接介面
- 拉力與壓力測量法選擇切換
- 公克 / 盎司 / 牛頓單位切換
- 反應時間選擇 : 快/0.2秒 ' 慢/0.6秒
- 可抓取瞬間最大荷重值
- 手動歸零裝置,提高準確度
- Size : 227 x 83 x 39mm
FEATURES
- Wide capacity, high resolution, high accuracy, high repeatability.
- 3 kind display unit.
- Tension & compression capability
- Peak hold ( Max. load ) can be held in display during make tension or compression measurement.
- Zero button can operate both for normal measuring & the " peak hold " operation.
- Full capacity zero (tare) control capability.
- Fast/Slow response time push button.
- Positive or reverse display direction select.
- Full line accessories ( adapters ) are included.
- Hand held & stand mounting available.
- Low power consumption gives long battery life.
- Build in low battery indicator.
- Microprocessor circuit & exclusive load cell transducer.
- Over load protection.
- RS-232 computer interface ( FG-5000A-RS ).
- Professional test stand ( optional ).
規格
顯示 (Display)
- LCD ( Liquid crystal display ).
- 5 digits, 10 mm ( 0.4" ) digit size.
顯示方向 (Display Direction)
- Positive or Reverse direction, select by the push button on the front panel.
功能 (Function)
- Tension & Compression (Push & Pull). Normal force, Peak hold ( Max. load ).
峰值鎖定 (Peak hold)
- Will freeze the display value of the Peak load ( Max. load ).
歸零 (Zero)
- Zero button can be operated both for "normal force" or "peak hold" operation
測量容量 (Measurement Capacity)
- 5000 g/176.40 oz/49.03 Newton.
解析度 (Resolution)
- 1 g/0.05 oz/0.01 Newton.
最小顯示 (Min. Display)
- 3 g/0.10 oz/0.03 Newton.
精確度 (Accuracy)
- ± (0.4 % + 1 d), within 23± 5℃.
單位選擇 (Unit select)
- g/oz/Newton
更新時間 (Update time)
- Fast Approx. 0.2 second.
- Slow Approx. 0.6 second.
過載指示 (Over range Indicator)
- Display show " - - - - " when in over range status
過載容量 (Overload Capacity)
- Max. 30 kg.
歸零/容器重量控制 (Zero/tare Control)
- Max. full capacity.
電路 (Circuit)
- Exclusive microprocessor LSI-circuit.
滿刻度偏移 (Full Scale Deflection)
- Approx. 0.4 mm max.
電源供應 (Power Supply)
- 6 x 1.5 V AA (UM-3) size battery or DC 9V adapter (not included).
電源損耗 (Power Consumption)
- Approx. DC 24 mA
轉換器 (Transducer)
- Exclusive load cell.
操作溫度 (Operating Temp.)
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
體積 (Dimension)
- 227 x 83 x 39 mm ( 8.9 x 3.3 x 1.5 inch ).
重量 (Weight)
- 551 g ( 1.2 LB )/with batteries.
掛鉤 (Mounting Holes)
- Mounting holes are provided on the back case, easy stand mounting.
資料輸出 (Data output) * For FG-5000A-RS
- RS-232 serial computer interface
附件 (Standard Accessory)
- Operating manual ..................... 1 PC.
- Flat-head adapter......................1 PC.
- Hook adapter ..........................1 PC.
- Cone head adapter .....................1 PC.
- Chisel head adapter ...................1 PC.
- 120 mm extension rod...................1 PC.
- Carrying case .........................1 PC.
選購附件 (Optional Accessories)
- * Test stand, Model : FS-1001
- * Wedge grip, Model : WG-01
- * Software for data logging & data recorder, Model : SW-U801-WIN
- * RS232 cable available for force gauge. Model : UPCB-04.
|
