特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 秤量範圍 : 0.02 ~ 20.00公斤 ±0.5%
- 拉力與壓力測量法選擇切換
- 公斤 / 磅 / 牛頓單位切換
- 反應時間選擇 : 快/0.2秒 ' 慢/0.6秒
- 可抓取瞬間最大荷重值
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 215 x 90 x 45mm
FEATURES
- Data record mode : Normal model or Peak hold mode.
- Normal record mode : Set sampling time from 1 second to 8 hours.
- Peak hold record mode : Set sampling time from 10 ms to 500 ms.
- Memory capacity of normal record mode : 1 GB to 16 GB.
- Memory capacity of peak hold record mode : 1000 data no. ( max. )
- Under Peak hold record mode, if execute the " Data record " function, the memory circuit will store 1000 data no. ( max. ) measuring data into the SD card per fast speed sampling time ( 10 ms to 500 ms ).
- Under Normal record mode, if execute the " Data record " function, will save the measuring data along the real time value ( Year/Month/ Date/Hour/Minute/Second ) into the SD card per normal sampling time ( 1 second to 8 hours ).
- After save the data into the SD memory card, it can be down load the data to the Excel directly, extra software is no need. User can make the further data analysis ( graphic analysis ) by themselves.
- Large LCD display with back light.
- 20 Kg, wide capacity, high resolution, high accuracy, high repeatability.
- 3 kind display unit : Kg, lb, Newton.
- Tension & compression capability .
- Peak hold ( Max. load ) can be held in display during make tension or compression measurement.
- Zero button can operate both for normal measuring & the " peak hold " operation.
- Full capacity zero (tare) control capability.
- Fast/Slow response time push button.
- Positive or reverse display direction select.
-
Full line accessories ( adapters ) are included.
- Hand held & stand mounted gauges are available.
- Low power consumption gives long battery life.
- Build in low battery indicator.
- Microprocessor circuit & exclusive load cell transducer.
- Over load protection.
- RS-232 computer interface

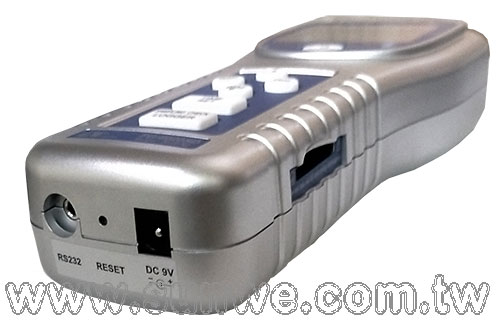

- Built-in DC 9V power adapter input socket.
- Professional test stand ( optional ).
規格
顯示 (Display)

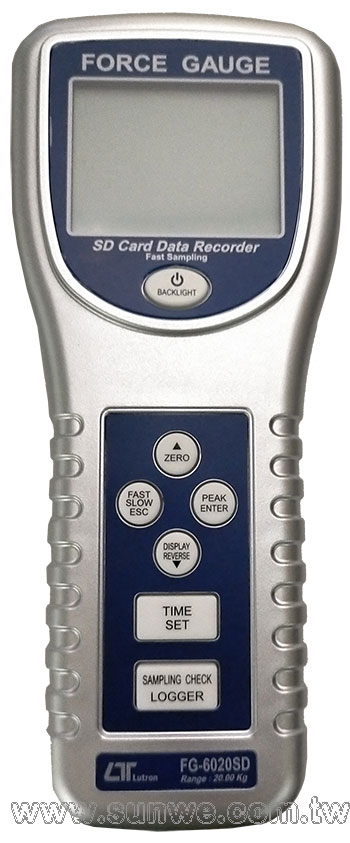

- LCD ( Liquid crystal display ).
- 5 digits, 16 mm ( 0.63" ) digit size. Back light.
顯示方向 (Display Direction)
- Positive or Reverse direction, select by the push button on the front panel.
功能 (Function)
- Tension & Compression (Push & Pull). Normal force, Peak hold ( Max. load ).
峰值鎖定 (Peak hold)
- Will freeze the display value of the Peak load ( Max. load ).
歸零 (Zero)
- Zero button can be operated both for "normal force" or "peak hold" operation
單位選擇 (Unit select)
- Kg, lb, Newton.
測量容量 (Measurement Capacity)
- 20.00 Kg/44.10 lb/196.12 Newton.
解析度 (Resolution)
- 0.01 Kg/0.01 lb/0.02 Newton.
最小顯示 (Min. Display)
- 0.02 Kg/0.07 lb/0.3 Newton
精確度 (Accuracy)
- ± (0.5 % + 2 digits),within 23± 5 .
- * Under the test weight on 10 Kg & 20 Kg.
更新時間 (Update time)
- Fast Approx. 0.2 second.
- Slow Approx. 0.6 second.
過載指示 (Over range Indicator)
- Display show " - - - - " when in over range status
資料輸出 (Data output)
- RS 232/USB PC computer interface. * USB cable, Model : USB-01
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 sec to 8 hour 59 min. 59 sec @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second.
- @ Manual mode, can also select the 1 to 99 position ( Location ) no.
峰值鎖定資料記錄模式下設定取樣時間範圍 (Peak hold data record mode Sampling Time Setting range)
- 10 mS to 500 mS.
- * Each setting step is 10 mS.
- * Auto data logger
- * The memory circuit will store 1000 data no. ( max. ) measuring data.

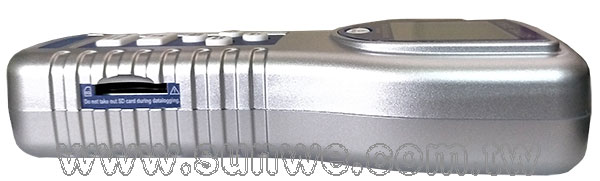

記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * SD memory card Format
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time ( normal data record mode )
- * Set sampling time ( peak hold data record mode)
- * Auto power OFF management
- * Unit setting
- * Set beep Sound ON/OF
- * Decimal point of SD card setting
過載容量 (Overload Capacity)
- Max. 30 kg.
滿刻度偏移 (Full Scale Deflection)
- Approx. 0.4 mm max.
歸零/容器重量控制 (Zero/tare Control)
- Max. full capacity.
轉換器
- Exclusive load cell.
電路 (Circuit)
- Exclusive microprocessor LSI-circuit.
電源供應 (Power Supply)
- * A Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- * A DC 9V adapter input.
- ( AC/DC power adapter is optional ).
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 7 mA.
- When SD card save the data and LCD Backlight is OFF) : Approx. DC 38 mA.
- If LCD backlight on, the power consumption will increase approx. 3 mA.
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
體積 (Dimension)
- 215 x 90 x 45 mm ( 8.5 x 3.5 x 1.8 inch ).
重量 (Weight)
- 650 g ( 1.43 LB )/with batteries.
掛鉤 (Mounting Holes)
- Main instrument with mounting holes are provided on the back case, easy stand mounting.

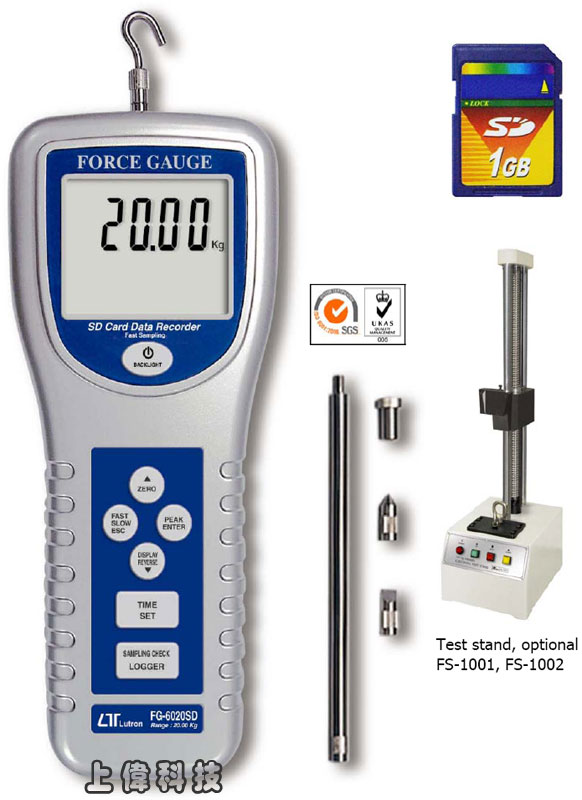

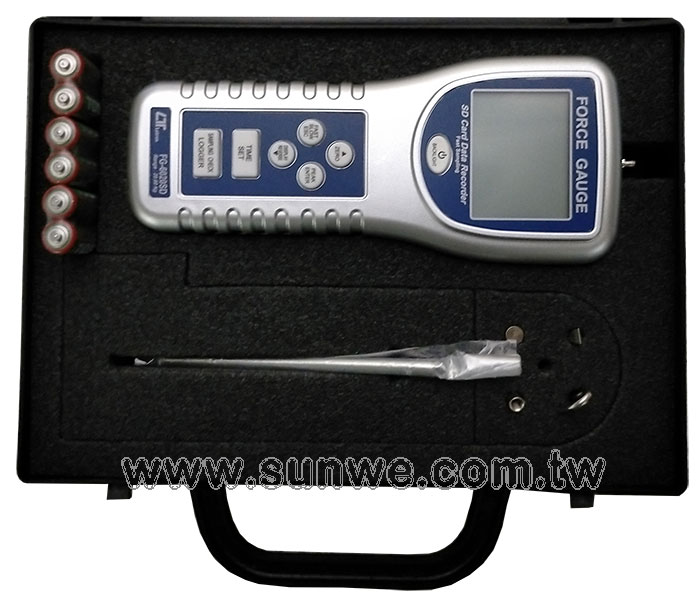

附件 (Standard Accessory)
- Operating manual ......................1 PC.
- Flat-head adapter..................... 1 PC.
- Hook adapter ......................... 1 PC.
- Cone head adapter .................... 1 PC.
- Chisel head adapter .................. 1 PC.
- 120 mm extension rod.................. 1 PC.
- Carrying case ........................ 1 PC.
選購附件 (Optional Accessories)
- * SD memory card ( 2 GB )
- * Test stand, Model : FS-1001
- * Electrical test stand, Model: FS-1002
- * Wedge grip, Model : WG-01
- * RS232 cable, Model : UPCB-02
- * USB cable, Model : USB-01
- * Software for data logging & data recorder. Model : SW-U801-WIN.
|
