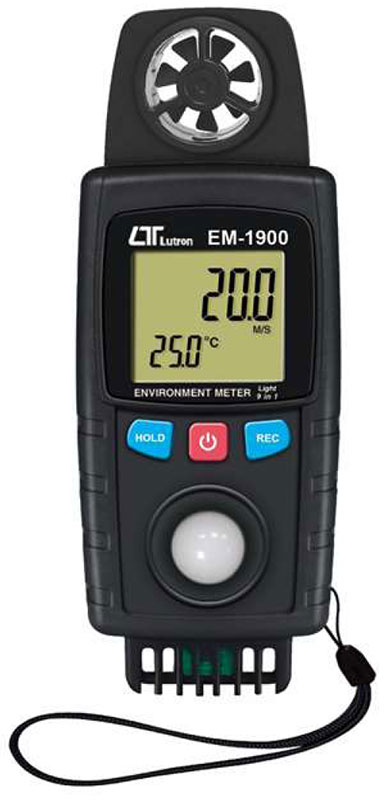

EM-1900
環境測量儀
(風速、溫度、濕度、照度、風量、露點、濕球溫度、風寒和熱指數)

- * 9 合 1 專業環境儀器: 1. 風速/溫度, 2. 濕度/溫度, 3. 照度計, 4.風量,5.露點,6.濕球,7.風寒,8。熱指數,9。Type K 溫度(可選探頭)
- * 輕巧細長型,重量輕,外殼尺寸小,適合單手作。
- * 腕帶設計為儀器提供額外的保護,特別是對於使用者的單手
操作。
- * 低摩擦滾珠軸承安裝輪設計在高低風速下提供高精度。
- * 高精度濕度感測器,反應時間快。
- * 內置氣壓感測器,可精確測量原子球值和高度。
- * 內置微處理器電路,確保出色的性能和精度。
- * 簡潔緊湊的按鈕排列,
操作簡單。
- *
記憶回叫最大值和最小值。
-
* 透過按下前面板上的按鈕進行°C/°F 檢測。
-
* 按住Hold可凍結當前讀數值。
特色
- EM-1900 環境計可準確可靠地測量風速、溫度、濕度、照度、風量、露點、濕球溫度、風寒和熱指數,是各種工業、環境和暖通空調應用的重要工具。
- 9 合 1 多功能能力:測量風速、溫度、濕度、照度、氣流、露點溫度、濕球溫度、風寒和熱指數,滿足不同的測量需求。
- 高精度和高解析度:所有參數均具有高精度和高解析度,確保測量精確且可重複。
- 使用者友善設計:配備大型 LCD 顯示屏,方便閱讀,堅固輕巧的設計,可單手操作,腕帶可提供額外保護。
- 反應時間快:配備高精度感測器,可快速測量所有參數。
- 耐用且便攜:採用堅固、輕質的 ABS 塑膠外殼,易於攜帶且經久耐用。
FEATURES
- * 9 in 1 professional environment instruments: 1. Air velocty/Temp., 2. Humidity/Temp., 3. Light meter 4. Air flow, 5. Dew point, 6. Wet bulb, 7. Wind chill, 8. Heat index, 9. Type K Temp.(optional probe)
- * Tiny bone shape with light weight and small size case design are suitable for handling with one hand.
- * Wristlet design provides extra protection to the instrument especially for user one hand operation.
- * Low-friction ball bearing mounted wheel design provides high accuracy at high and low air velocity.
- * High precision humidity sensor with fast response time.
- * Build in baro sensor for the atomsphere value and altitude measurement precisely.
- * Built- in microprocessor circuit assures excellent performance and accuracy.
- * Concise and compact buttons arrangement, easy operation.
- * Memorize the maximum and minimum value with recall.
- * ℃/℉ detection by pressing button on the front panel.
- * Hold function to freeze the current reading value.
規格
顯示
- 8 mm液晶顯示
測量功能
風速
- 範圍:
- 英尺/分鐘:80 至 3937 英尺/分鐘 解析度:1 英尺/分鐘
- 米/秒:0.4 至 20.0 公尺/秒 解析度:0.1米/秒
- 公里/小時:1.4 至 72.0 公里/小時 解析度:0.1 公里/小時
- 英哩/小時:0.9 至 44.7 英哩/小時 解析度:0.1英里/小時
- 節:0.8 至 38.8 節0.1 節
- 精準度:±(3% FS ≦ 20 公尺/秒,最大 25 公尺/秒)
溫度
- 範圍:℃:0至50℃
- ℉:32 至 122℉
- 解析度:0.1℃
- 精準度:±0.8℃,±1.5℉
濕度
- 範圍:10 至 95% RH
- 解析度:0.1%RH
- 準確度:±(4% 讀數 + 1.2% RH)(≥70% RH),±4% RH(<70% RH)
露點溫度
- 範圍:
- ℃:-25.3至48.9℃
℉:-13.5至120.1℉
- 解析度:0.1℃
- 準確度:根據濕度/溫度測量計算
濕球溫度
- 範圍:
- ℃:-21.6至50.0℃
℉:-6.9 至 122.0℉
- 解析度:0.1℃
- 準確度:根據濕度/溫度測量計算
照度
- 範圍:
- Lux:0至20,000 Lux 解析度:
Lux:1 Lux
- ft-cd:0 至 1,860 ft-cd解析度:
ft-cd:0.1 ft-cd
- 準確度:±(5% 讀數 ± 8 位數)
風量
- 範圍:
- CMM (m³/min):0 to 54,000 CMM 解析度:CMM: 0.001 to 1 CMM
- CFM (ft³/min):0 to 1,907,000 CFM 解析度:0.001 to 100 CFM
- 測量區域:
- CMM:0.001 to 30.000 m²
- CFM:0.01 to 322.93 ft²
工作濕度
- 最大 80% 相對濕度。
工作溫度
- 0 至 50 ℃ ( 32 至 122 ℉ )
過量輸入顯示
- 「- - - - 」指示
電源
- UM4-AAA X 3(DC 4.5 V 電池)
耗電量
- 大約直流5毫安培
重量
- 160公克(含電池)
尺寸
- 高、寬、深 120 x 45 x 20 毫米(4.7 x 1.8 x 1.2 英吋)。
標準配件
- 使用說明書
選購配件
- K型溫度探頭:TP-01、TP-02A、TP-03、TP-04
