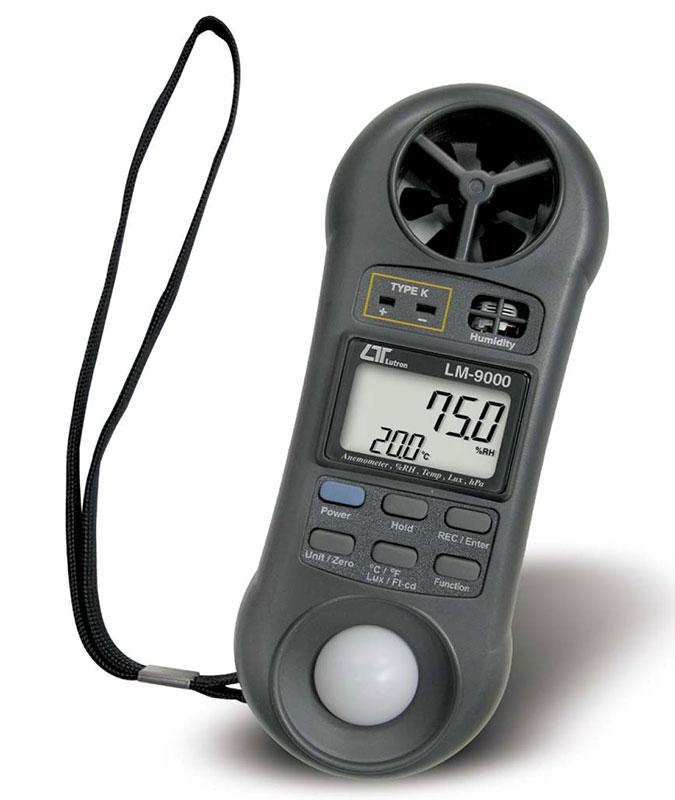

LM-9000
7合1環境測量計
(風速、風量、濕度、溫度、露點、照度、氣壓)

- 7 合 1 : 風速計、風量、濕度/溫度計、露點、照度計、氣壓計。K 型溫度計
- 外殼設計輕巧細長,重量輕,適合單手作。
- 腕帶設計為儀器提供額外的保護,特別是對於使用者的單手作。
- 低摩擦滾珠軸承安裝輪設計在高低風速下提供高精度。
- 獨家光電二極體和色彩校正濾光片光感測器,光譜符合 C.I.E. 明視。
- 高精度濕度感測器,回應時間快。
- 標準 K 型 (NiCr-NiAl) 熱電偶輸入插孔適用於各種 K 型探頭。
- 氣壓計:10 至 1100 hPa、mmHg、inHg。
- 內置微處理器電路,確保出色的性能和精度。
- 簡潔緊湊的按鈕排列,作簡單。
- 記憶回叫最大值和最小值。
- °C/°F可按下前面板上的按鈕進行改變。
- 通過按下前面板上的按鈕選擇Lux/Fc。
- 通過按下前面板上的按鈕選擇風速測量單位,有5種單位。
- 多通道顯示相對濕度和溫度測量值或同時顯示風速和溫度測量值。
- 零按鈕設計使照度計校準。
- 鎖定功能可凍結當前讀數值。
特色
- LM-9000 7 合 1 環境計可準確可靠地測量風速、風量、濕度、溫度、露點、照度和氣壓,使其成為各種工業、環境和 HVAC 應用的重要工具。
- 7 合 1 多功能:測量風速、風量、濕度、溫度、露點、照度和氣壓,提供全面的環境分析。
- 高精度和高解析度:所有功能均具有高精度和高解析度,確保測量精確且可重複。
- 響應時間快:配備內建探頭,可快速測量濕度,提供快速且準確的讀數。
- 使用者友善設計:小巧輕巧,口袋大小的設計,易於操作。配備雙重功能的 LCD
顯示屏,可輕鬆讀取,並配備數據保持功能,可凍結顯示屏上的所需值。
- 先進的連接性:包括用於資料輸出的RS-232
PC串行接口,增強資料管理和與其他系統的整合。
FEATURES
- 7 in 1 : Anemometer, Air flow, Humidity/Temp. meter Dew point, Light Meter, Barometer. Type K thermometer
- Tiny bone shape with lightweight and small size case design
are suitable for handling with one hand.
- Wristlet design provides extra protection to the instrument
especially for user one hand operation.
- Low-friction ball bearing mounted wheel design provides
high accuracy at high and low air velocity.
- Exclusive photo diode and color correction filter light sensor,
spectrum meets C.I.E. photopic.
- High precision humidity sensor with fast response time.
- Standard type K (NiCr-NiAl) thermocouple input jack
suitable for all kinds of type K probe.
- Barometer : 10 to 1100 hPa, mmHg, inHg.
- Built- in microprocessor circuit assures excellent
performance and accuracy.
- Concise and compact buttons arrangement, easy operation.
- Memorize the maximum and minimum value with recall.
- ℃/℉detection by pressing button on the front panel.
- Lux/Feet-candle selection by pressing button on the front
panel.
- Air velocity measuring units selection by pressing button on
the front panel for five kinds of units.
- Multi channel display for relative humidity and temperature
measured values or air velocity and temperature measured
values at the same time.
- Zero button design makes light meter calibration.
- Hold function to freeze the current reading value.
- Tiny bone shape with light weight and small size
規格
顯示
- 類型:具有雙功能顯示器的 LCD
- 尺寸:8毫米
測量功能
- 風速範圍:
- 米/秒:0.4 至 30.0 公尺/秒
解析度:0.1米/秒
- 公里/小時:1.4至108.0公里/小時
解析度:0.1公里/小時
- 英尺/分鐘:80 至 5910 英尺/分鐘
解析度:1 英尺/分鐘
- 節:0.8 至 58.3 節 0.1 節
- 英哩/小時:0.9 至 67.0 英哩/小時 0.1 英哩/小時
- 準確性:
≤20公尺/秒:±3%滿量程
>20公尺/秒:±4%滿量程
- 風量
- CMM:0.001 至 30.000 公尺²
- CFM:0.01 至 322.92 平方英尺
- 濕度範圍
- 10 至 95%RH
解析度:0.1%RH
精確度:±(3% 讀數 + 1 %RH)(≥70 %RH),±3 %RH(<70 %RH)
- 溫度範圍 0至50℃,32至122℉
解析度:0.1℃
精準度:±0.8℃,±1.5℉
- 露點範圍 -25.3至48.9℃
解析度:0.1℃
準確度:根據濕度和溫度測量計算
- 照度範圍 0至20,000Lux
解析度:1Lux(0至2,200Lux),10Lux(1,800至20,000Lux)
精確度:讀數的±5%±8位數
- 氣壓計範圍
- 百帕:10.0至1100.0百帕
解析度:0.1 hPa(10.0 至 999.9 hPa),1 hPa(1000 至 1100 hPa)
準確性:±1.5百帕(10.0至999.9百帕),±2百帕(1000至1100百帕)
- 毫米汞柱:7.5 至 825.0 毫米汞柱
解析度:0.1 毫米汞柱
準確性:±1.2毫米汞柱
- 英吋汞柱:0.29 至 32.48 英吋汞柱
解析度:0.01英吋汞柱
準確性:±0.05英吋汞柱
反應時間
- 5至30秒(達到讀數的85%)
採樣時間
- 大約 0.8秒
資料鎖定
- 凍結顯示讀數
記憶回叫
- 儲存最大和最小讀數
關機
- 自動關閉以節省電池壽命或透過按鈕手動關閉
輸入過量顯示
- 表示“- - - - ”
電源
- DC 9V電池(006P)或DC 9V變壓器
消耗電流
- 約直流6.2毫安培
操作環境
-
溫度:0至50℃
-
濕度:小於80%RH
尺寸
- 156 x 60 x 33 毫米(6.14 x 2.36 x 1.29 英吋)
重量
-
160公克(含電池)
標準配件
-
說明書:1本
選購配件
-
RS-232 電纜(UPCB-02)
-
USB電纜(USB-01)
-
數據採集軟體(SW-801-WIN)
-
壁掛式支架 (WH-08)
-
電源變壓器(ACV至DC 9V)
