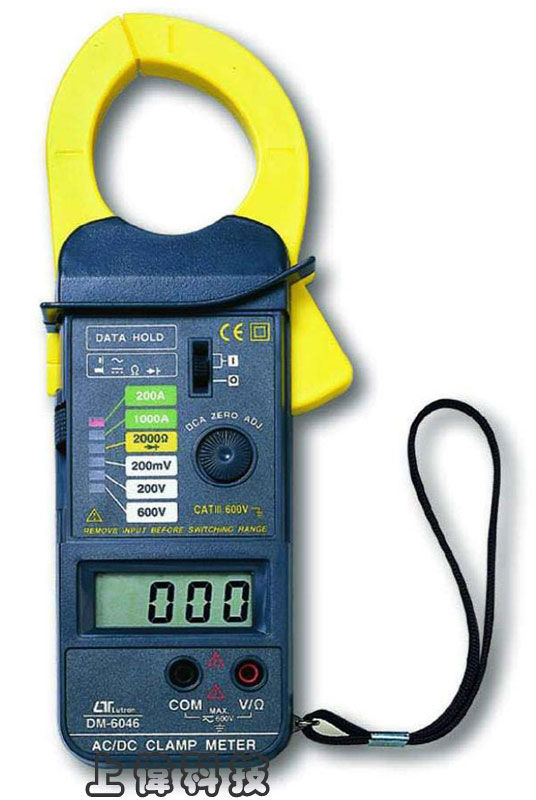

DM-6046
交直流鉤錶
簡介
- 交直流電壓：0.1mV ~ 600V ±1%
- 交直流電流：0.1A ~ 1000A ±1.5%
- 電阻：0 ~ 2000歐姆 ±1%
- 讀值鎖定功能
- 鉤部口徑 32mm
- Size：230 X 70 X 36mm
FEATURES
- Measure max. 1000 A DCA or ACA by the inductive conductor, contactless.
- Economical cost with professional quality.
- Design meet IEC 1010 safety requirement.
- ACA , DCA , ACV , DCV , ohms , Diode. Built-in Data Hold function.
- LCD display, easy & clear readout.
- High internal impedance, assures min. measuring error.
- LSI-circuit provides high reliability and durability.
- Built-in low battery indicator.
- Overload protection circuit is provided for all range.
- Compact & heavy duty ABS housing plastic case.
一般規格
顯示 (Display)
- 13 mm ( 0.5" ) LCD , 3 1/2 digits. Max. indication 1999.
測量範圍 (Measurement Range)
- ACA , DCA , ACV , DCV , Ohms , Data hold.
極性 (Polarity)
- Automatic Switching, ' － ' indicates negative polarity.
電流感應器 (Current Sensor)
- Hall effect sensors.
歸零調整 (Zero Adjustment)
- DCA : External knob, for DCA zero adjustment.
- Other : Automatic adjustment.
輸入過載指示 (Over-input indicator)
- Indication of ' 1 ' or ' -1 '.
取樣時間 (Sampling Time)
- Approx. 0.4 second.
電池 (Battery)
- DC 9V battery, heavy duty or Alkaline type, 006P, MN1604 ( PP3) or equivalent.
電源消耗 (Power Consumption)
- Approx. DC 10.8 mA.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃ ( 32 ℉ to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% RH.
重量 (Weight)
- 400 g/0.90 LB ( including battery ).
體積 (Dimensions)
- HWD 230 x 70 x 36 mm( 9.1 x 2.8 x 1.4 inch )
鉤部口徑 (Conductor Jaw Size)
- 78.5 mm ( 3.1 inch ) - outside
附件 (Accessories Included)
- Red and Black Test Leads ..... 1 pair.
- Instruction Manual ........... 1 PC.
選購附件及轉換器 (Optional Carrying case & Adapters)
- Carrying case, CA-05A
- Pressure adapter, PS-403
- Current shunt, ST-50.
- Sound adapter, SL-406 .
- Light adapter, LX-02
- Humidity adapter, HA-702
- Anemometer adapter, AM-402
- Tachometer adapter, TA-601
- Alligator test lead, TL-02AS
- EMF adapter, EMF-824
- High voltage probe, HV-40
- Heavy duty alligators, AL-04
電器規格 (23±5 ℃)
| Function |
Range |
Resolution |
Accuracy |
Overload Protection |
Remark |
| DC Voltage |
200 mV |
0.1 mV |
± ( 1 % + 1 d ) |
AC/DC 400 V. |
|
| 200 V |
0.1 V |
AC/DC 600 V. |
Input impedance 10 Mega ohm |
| 600 V |
1 V |
|
AC Voltage |
200 V |
0.1 V |
± ( 1 % + 2 d ) |
AC/DC 600 V. |
Input impedance 10 Mega ohm |
| 600 V |
1 V |
| Resistance |
2000 ohm |
1 ohm |
± ( 1 % + 1 d ) |
AC/DC 400 V |
|
| AC/DC Current |
200 A |
0.1 A |
± ( 1.5 % + 15 d ) |
AC/DC 1000 A |
ACA Spec. test on 60 Hz/50 Hz. |
| 1000 A |
1 A |
± ( 2 % + 5 d ) |
| Diode Check |
Short/non conductance, good/defect test. Approx. diode VF ( forward voltage ). |
| Data Hold |
Available for all functions to keep the data hold on the display . |
Remark |
- * Input impedance for ACV & DCV range is 10 Mega ohm.
- * ACA, ACV frequency response is from 40 to 400 Hz.
- * ACA, ACV specification be tested on sine wave 50/60 Hz.
|
|
