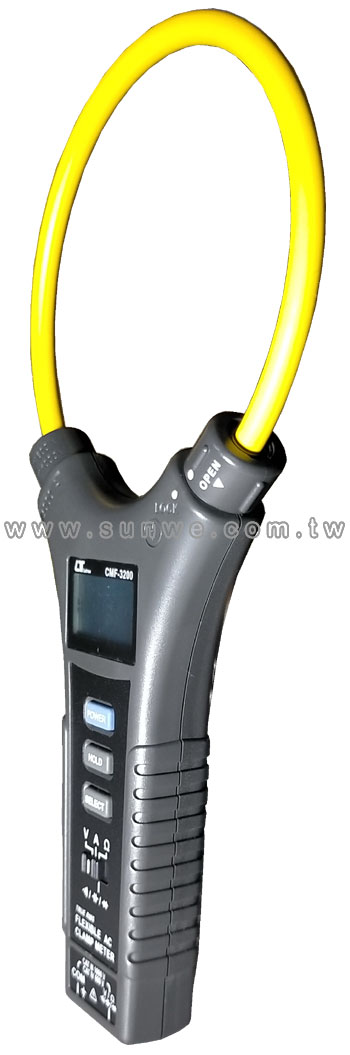

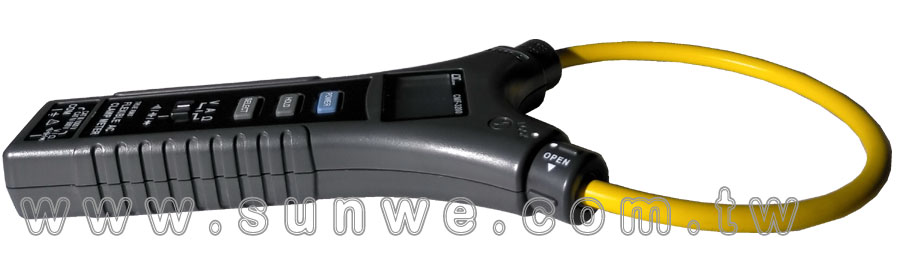

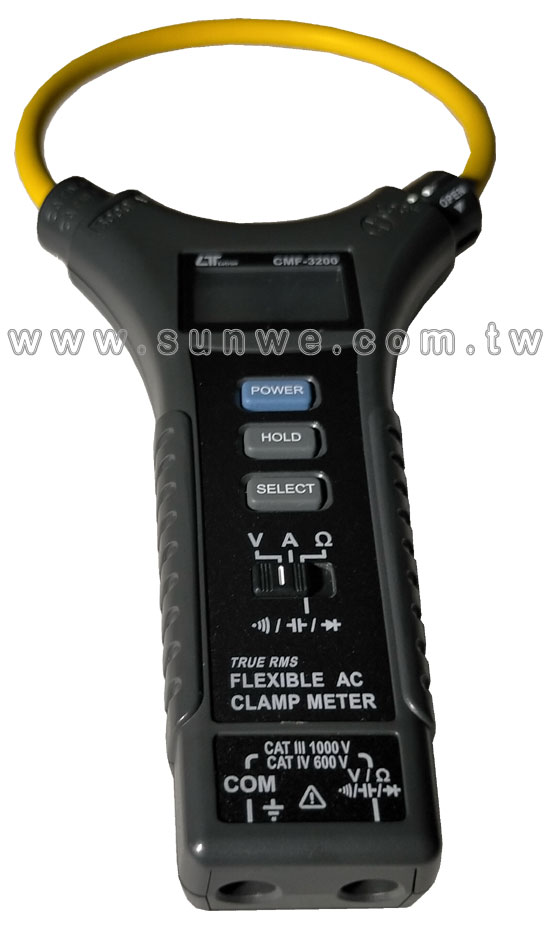

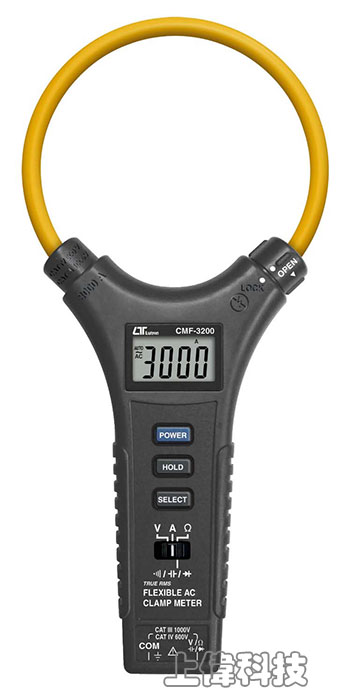

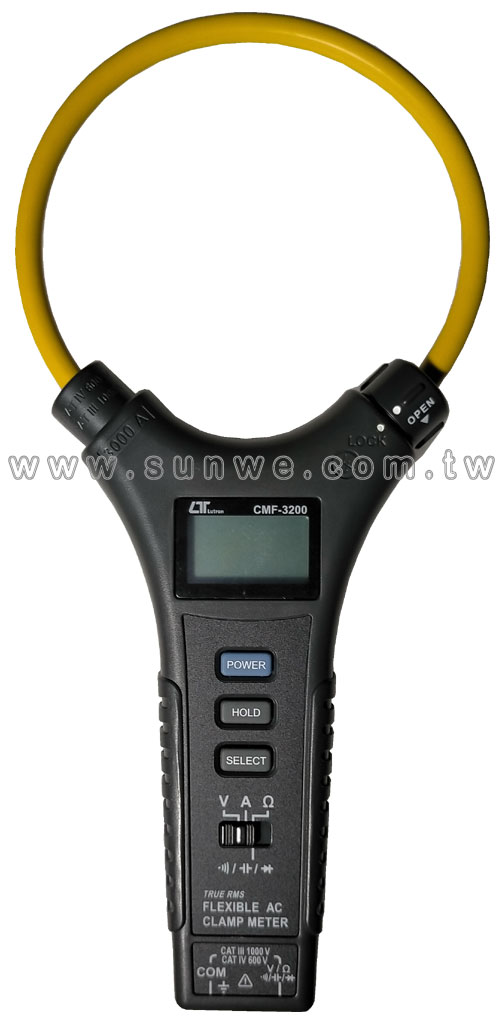

CMF-3200
可繞式鉤錶
簡介
- 交直流電壓：0.001V ~ 1000V ±1%
- 交直流電流：0.1A ~ 3000A ±1%
- 電阻：0.1 ~ 60M歐姆 ±1.5%
- 電容：0.001nF ~ 600uF ±3%
- 導通蜂鳴測試及讀值鎖定功能
- 真均方根值測量 ( True RMS )
- 鉤部口徑 300mm，線徑 8mm
- Size：290 X 135 X 27.8mm
FEATURES
- Meet IEC 1010, CAT III 1000 V
safety requirement.
- 6000 counts A/D, high resolution.
- True RMS
- Double insulation coil.
- ACA, DCV, ACV, ohms, continuity.
Capacitance, Diode.
- Smart function, Auto range.
- Smart operation, Build in 3
intelligent function : " V ", " Ω "," A ".
- " V " function can select DCV, ACV
automatically with auto range.
- " Ω " function can select the
Resistance , Diode, Continuity beeper, Capacitance automatically
with auto range.
- " ACA " 600A " & " 3000A "
automatically.
- Data hold .
- Auto shut off is available to save
battery life.
- 10 M ohm impedance for voltage
circuit.
- Built-in overload protection for
most ranges.
- LSI circuit provides high
reliability and durability.
- Uses durable, long-lasting
components, enclosed in strong, light weight ABS-plastic
housing.
一般規格
顯示 (Display)
- 33.5 mm x18.7
mm, LCD display.
A/D 計數 (A/D counts no.)
- 6000 counts.
智能功能 (Smart function)
- * " V "
function can select ACV, DCV automatically with auto range.
- * " Ω "
function can select the Resistance,Diode,Continuity
beeper,Capacitance automatically with auto range.
- * ACA " 600A
", " 3000A " automatically with auto range.
讀值鎖定 (Data hold)
- To freeze
the display reading on the LCD display.
電源開關管理 (Power On/Off management)
- Auto power
of or manual power off.
選擇
(Selection)
- Smart
function or auto function .
極性 (Polarity)
- Automatic
Switching, " - " indicates negative polarity.
取樣時間 (Sampling Time)
- Approx. 0.5
to 1 second.
操作溫度 (Operating Temp.)
- 0 ℃ to 50 ℃
(32 ℉ to 122 ℉)
操作溼度 (Operating Humidity)
- Max. 80% RH.
電源供應 (Power Supply)
- DC 1.5 V
battery ( UM-4, AAA ) x 2.
電源消耗 (Power Consumption)
- Approx. DC
16.1 mA.
軟電纜長度 (Flexible
cable length)
- 300 mm.
軟電纜直徑 (Flexible
cable Diameter)
- 8 mm
體積 (Dimensions)
- 290 x138.3 x 26.5 mm ( 11.4x 5.4 x
1.0 inch ).
重量 (Weight)
- 197 g/0.435 LB ( w.o battery ).
附件 (Accessories Included)
- Operation manual.................
1 PC
- Test leads ( CATIII 1000 V ).....
1 pair
選購附件 (Optional
accessory)
- Soft carrying case
電器規格 (23±5 ℃)
交流電流 (AC
Current) * true rms
- Range：600 A/3000 A
- Resolution：0.1A /1 A
- Accuracy：
- 600 A Range：± ( 1% +8d ).
- 3000 A Range：± ( 1% +10d ).
- Linearity：± 0.2% of
reading value from 10% to 100% of range value.
- Conductor position
sensitivity：± 2% of reading value * The measured
conductor distance from center＞ 25 mm (1" ) .
- External field influence：Increase
± 1.5% of range value max.
- * Recommend the distance
between different " Flexibel current probe " should ＞ 200
mm.
- Remark
- * Accuracy is specified that
the measured conductor's position is on the center of "
Flexible current probe ".
- * ACA specification be tested
on sine wave 50/60 Hz.
- * Measurement range︰0.1 A to
3000 A
直流電壓 (DC
Voltage)
- Range：6 V/60 V/600 V
/1000 V
- Resolution：0.001V /0.01V
/0.1V/1 V
- Accuracy：± ( 0.8% + 5d )
- Input impedance：10 M
ohm.
- Over load protection：±
1000 DCV, 1000 ACV
交流電壓 (AC
Voltage) * true rms
- Range：6 V/60 V/600
V/1000 V
- Resolution：0.001 V /0.01
V /0.1 V/1 V
- Accuracy：± ( 1% + 8d ) *
Spec. are tested under 50/60 Hz.
- Input impedance：10 M
ohm.
- Over load protection：±
1000 DCV, 1000 ACV
- Smart function test：It
must be > 300 mV AC.
二極體 (Diode)
- Short/non conductance,
good/defect test
電容 (Capacitance)
- Range：6 nF/60 nF/600 nF/6
uF/60 uF/600 uF
- Resolution：0.001nF/0.01nF/0.1
nF/0.001uF/0.01uF/0.1uF
- Accuracy：± ( 3 % + 10d )
- Over load protection：±
30 DCV, 30 ACV.
- Remark
- * Discharge capacitor before
testing.
- * Smart function must be > 0.4
nF.
歐姆 (OHMS)
- Range：600 Ω /6 KΩ /60 KΩ
/600 KΩ /6 MΩ /60 MΩ
- Resolution：0.1 Ω /0.001
KΩ /0.01 KΩ /0.1 KΩ /0.001 MΩ/0.01 MΩ
- Accuracy：
- 600 ohm : ± ( 1 % + 5d )
- 6K/60K/600K/6M/60M : ± ( 1.5 %
+ 5d )
- Over load protection：± 350 DCV,
350 ACV.
- Remark：60MΩ measurements
must be operated in the automatic shift mode
導通蜂鳴器 (Continuity Beeper)
- Beeper will sound if measured
resistance less than 20 ohm.
|
