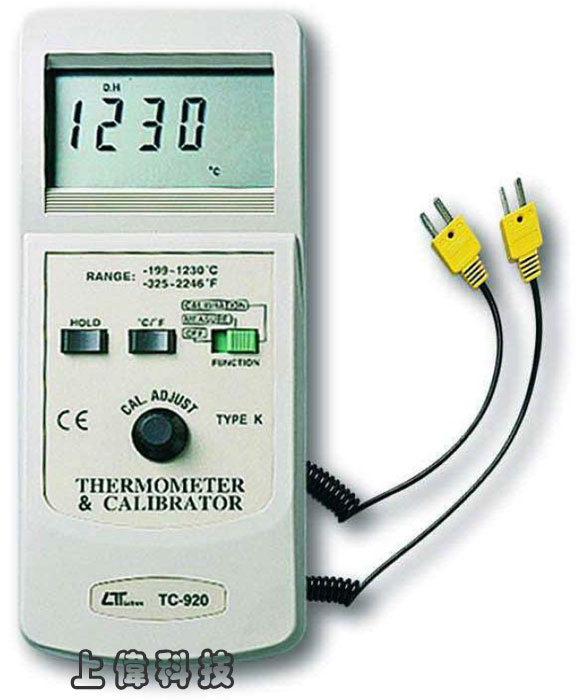

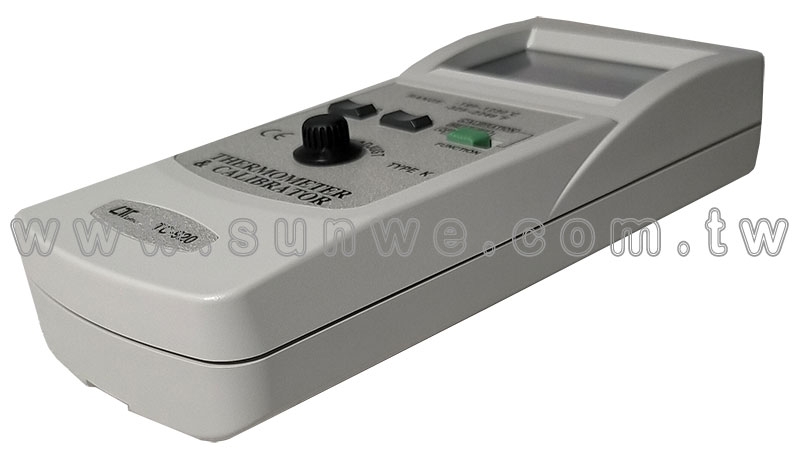

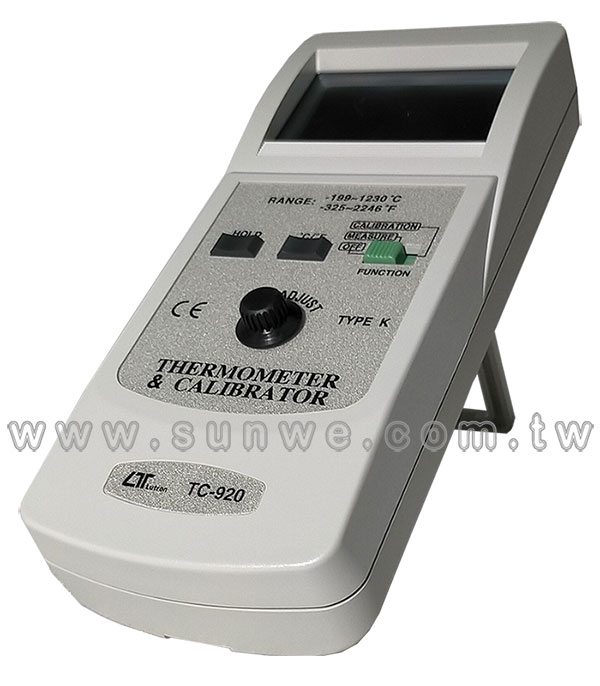

TC-920
溫度校正器
特色
- 二合一功能,可校正及測量溫度功能
- 校正範圍 : -199 ~ 1230°C (Type K)
- 測量範圍 : 199 ~ 1230°C (Type K)
- 精確度 : ±1%
- 攝氏(°C)/華氏(°F)單位切換
- RS-232 / USB 連接介面(軟體選購)
- Size：185 X 78 X 38mm
FEATURES
- 2 in 1, one meter included " type k thermometer " & " type k thermocouple calibrator ".
- Precision calibrator for type k thermometer, calibrating process devices and measuring process signals.
- Wide range : -199℃ to 1230℃ ( -325℉ to 2246℉ ).
- Microprocessor circuit assures high accuracy and provides special functions and features.
- Build in temperature linearity compensation circuit, high precision.
- ℃ & ℉ select & data hold function for the temperature measurement.
- ℃ & ℉ select by the front button for the temperature calibrator.
- Thermocouple sensor for Temp. measurement, fast response time.
- RS 232 PC serial computer interface.
- Temp. measuring input to meet any standard type K ( NiCr-NiAl ) probe.

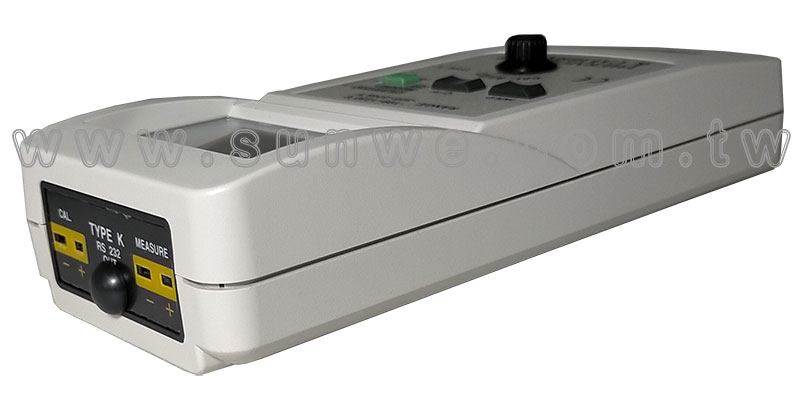

- Fitted with standard type K input measuring socket.
- Super large LCD display, easy reading.
- Operates from 006P DC 9V battery.
- Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI with thermocouple linearity correction circuit.
顯示 (Display)
- 14.8 mm (0.58") digit size. Super large LCD display with annunciator.
功能 (Function)
- 2 in 1 : Type k thermometer, Type k thermocouple calibrator.
範圍 (Range)
- Measure : -199.9℃ to 1230℃/ - 327℉ to 2246℉.
- Calibrator : -199.9℃ to 1230℃/ - 327℉ to 2246℉.
極性 (Polarity)
- ' - ' indicates negative polarity.
溫度表 (Thermometer)
- Sensor Type : Thermocouple K ( NiCr-NiAl ).
- Input Impedance :
10 Mega ohm.
取樣 (Sampling)
- Approx. 1 second.
資料輸出 (Data Output)
- RS 232 PC serial computer interface.
過載輸入指示 (Over input indication)
- Indication of "‾‾‾‾"
操作溫度 (Operating Temp.)
- 0 to 50℃ (32 to 122℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- DC 9V battery, 006P, MN1604(PP3) or equivalent. Heavy duty or Alkaline type.
電源損耗 (Power Consumption)
- Approx. DC 9 mA.
重量 (Weight)
- 280 g/0.62 LB ( included battery ).
大小 (Size)
- 185 x 78 x 38 mm ( 7.3 x 3.0 x 1.5 inch ).
附件 (Accessories Included)
- Instruction Manual ............... 1 PC.
- Dual type k plug cable, DUK-02.....1 PC.
選購附件 (Optional Accessories)
- Temperature probe, TP-01, TP-02A, TP-03, TP-04.
- Carrying case, CA-03, CA-04.
- Software, SW-U801-WIN.
- RS232 cable, UPCB-01.
- USB cable, USB-01.
電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃
K型熱電偶校正器 (Type K thermocouple Calibrator)
| Calibrator Range
|
Resolution |
Accuracy |
| >℃ |
-199.9 ℃ to -100.1 ℃ |
0.1 ℃ |
± (1 % + 1 ℃) |
| -100.0 ℃ to 999.9 ℃ |
0.1 ℃ |
± (0.5 % + 1 ℃) |
| 1000 ℃ to 1230 ℃ |
1 ℃ |
| ℉ |
-327 ℉ to -200 ℉ |
1 ℉ |
± (1 % + 2 ℉) |
| -199.9 ℉ to -148.1 ℉ |
0.1 ℉ |
| -148.0 ℉ to 999.9 ℉ |
0.1 ℉ |
± (0.5 % + 2 ℉) |
| 1000 ℉ to 2246 ℉ |
1 ℉ |
熱電偶及測量 (Thermometer, measure)
| Calibrator Range |
Resolution
|
Accuracy |
| ℃ |
-199.9 ℃ to -100.1 ℃ |
0.1 ℃ |
± (1 % + 1 ℃) |
| -100.0 ℃ to 999.9 ℃ |
0.1 ℃ |
± (0.5 % + 1 ℃) |
| 1000 ℃ to 1230 ℃ |
1 ℃ |
| ℉ |
-327 ℉ to -200 ℉ |
1 ℉ |
± (1 % + 2 ℉) |
| -199.9 ℉ to -148.1 ℉ |
0.1 ℉ |
| -148.0 ℉ to 999.9 ℉ |
0.1 ℉ |
± (0.5 % + 2 ℉) |
| 1000 ℉ to 2246 ℉ |
1 ℉ |
- The accuracy specification of thermometer applies only to the instrument itself and allowance must be made for limits of error permitted in thermocouple.
|
