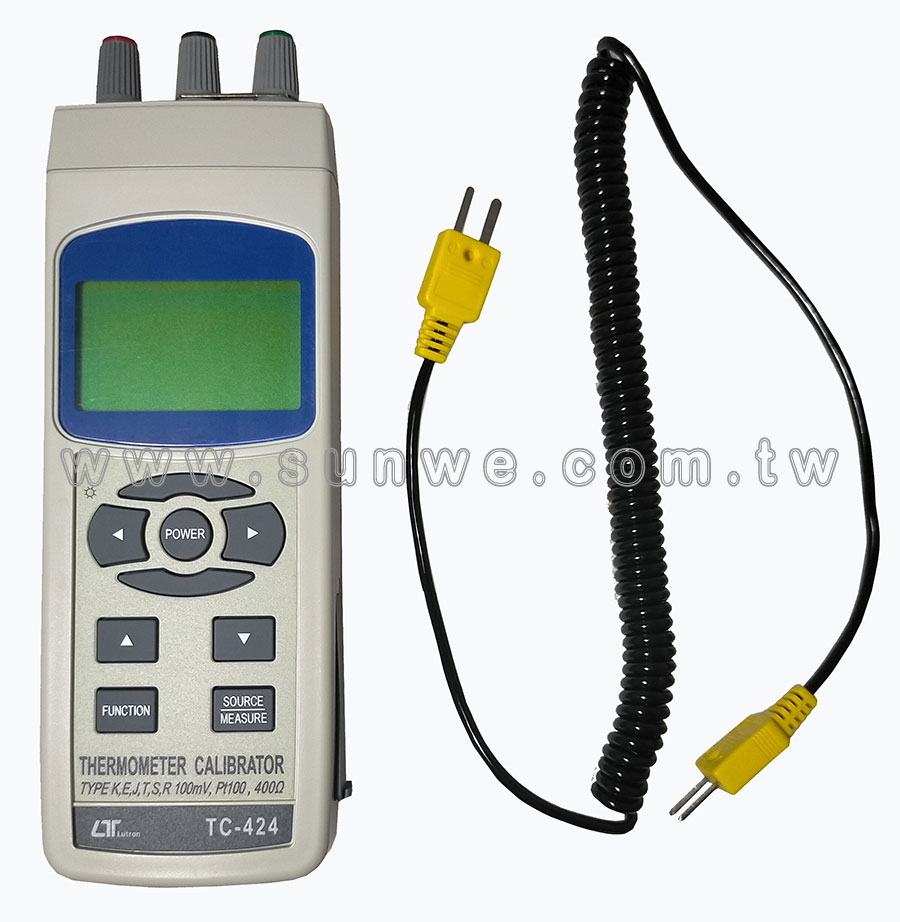

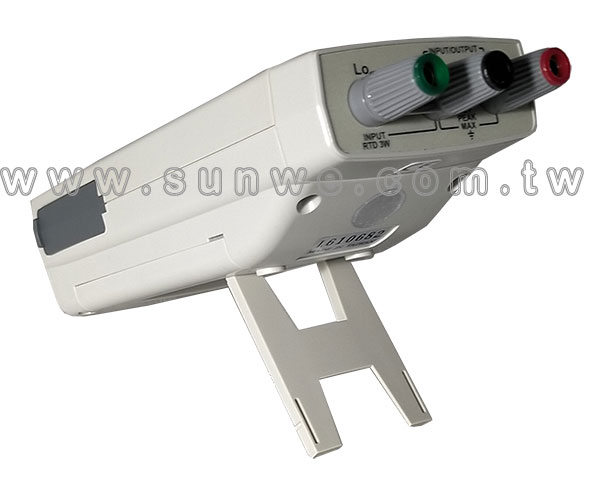

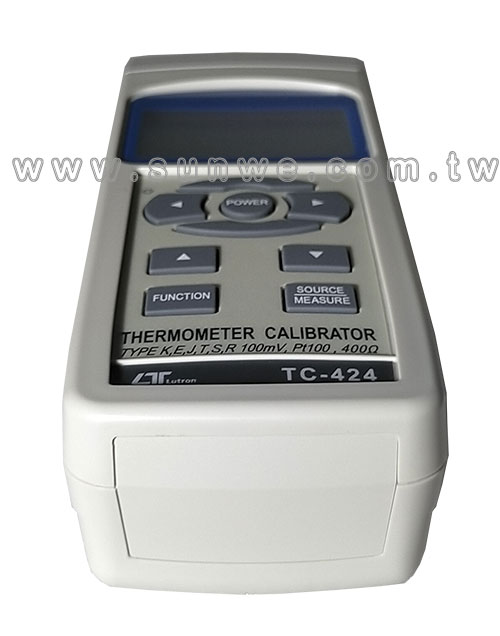

TC-424
溫度校正器
特色
- Pt100，電壓 (DCmV)，400Ώ，KJRETS
熱電偶溫度
校正及測量：
- Pt100：-200.0°C
~ 850.0°C ±0.05%
- K Type：-200.0°C
~ 1370.0°C ±0.05%
- J Type：-200.0°C
~ 1200.0°C ±0.05%
- T Type：-200.0°C
~ 400.0°C ±0.05%
- E Type：-200.0°C
~ 1000.0°C ±0.05%
- R/S Type：0°C
~ 1768°C ±0.05%
- DCV：-10.00mV ~
111.00mV ±0.05%
- 電阻：0 ~ 400.0
Ώ ±0.1%
- 攝氏 (°C) / 華氏 ( °F) 單位切換
- Size：198 X 68 X 45mm
FEATURES

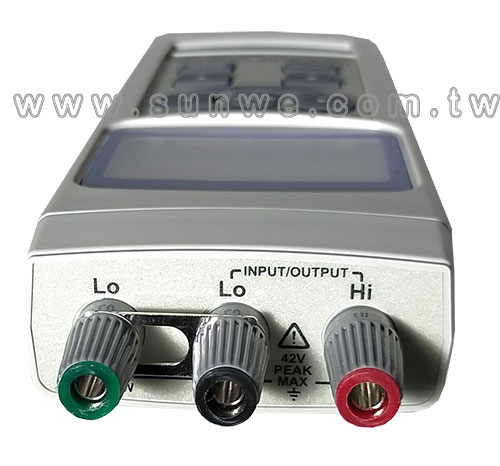

- Four kinds Source output :
- 1. Pt-100 source
- 2. Voltage( DC mV) source
- 3. 400 ohm source
- 4. Type KJRETS Temp. source
- Four kinds measurement inputer :
- 1. Pt-100 measure
- 2. Voltage( DC mV) measure
- 3. 400 ohm measure
- 4. Type K/J/R/E/T/S Temp. measure
- Portable instrument for calibrating process
devices.
- Four kinds Source Adjustable output.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI with
thermocouple linearity correction circuit.
顯示 (Display)
- LCD size : 52 mm x 30 mm.
- LCD with white backlight ( ON/OFF ).
測量 (Measurement)
- 1.Type k/J/R/E/T/S Temp.
- 2. Voltage (DC mV).
- 3. Pt-100 ohm, 4. 400 ohm .
來源 (Source)
- Type k/J/R/E/T/S Temp.,
- Voltage (DC mV : - 10.00 to + 110.00 mV),
- Pt-100 ohm , 400 ohm
顯示取樣時間 (Sampling Time of Display)
- Approx. 1 second.
高級設定 (Advanced setting)
- Auto power OFF management.
- Set unit ℃ or ℉ .
操作溫度及濕度 (Operating Temperature
and Humidity)
- 0 to 50 ℃.
- Less than 85% R.H.

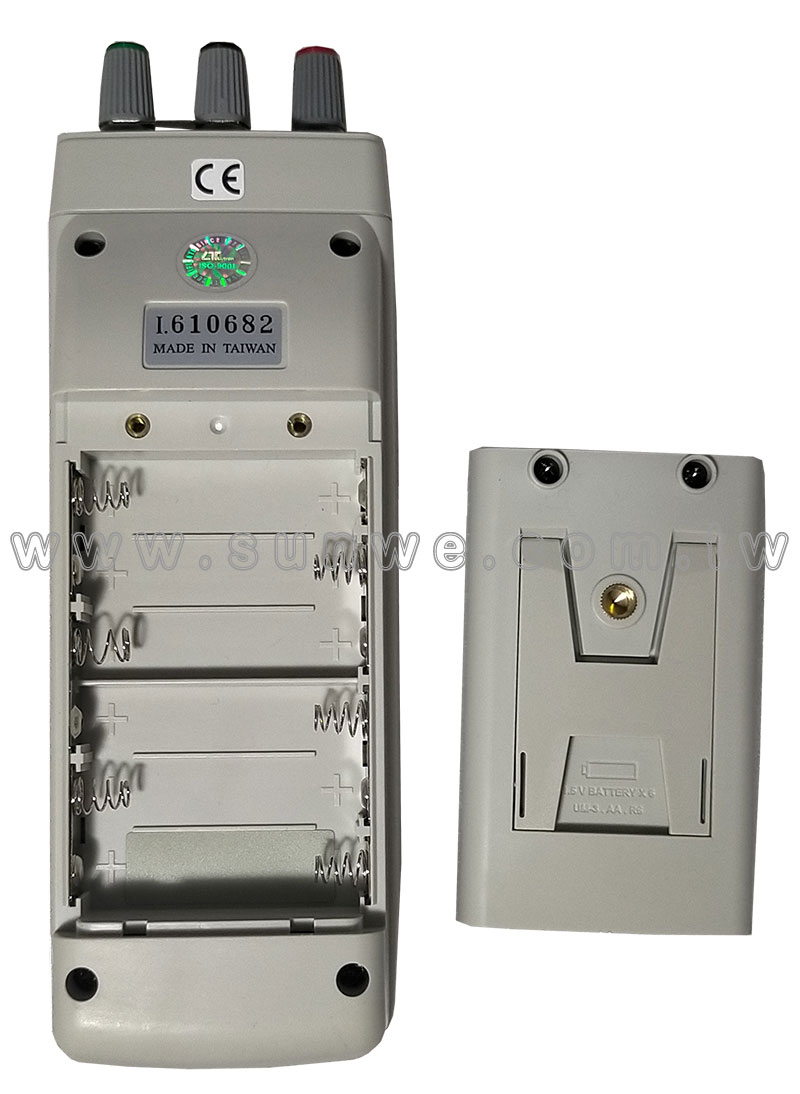

電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3,
AA ) x 6 PCs, or equivalent.

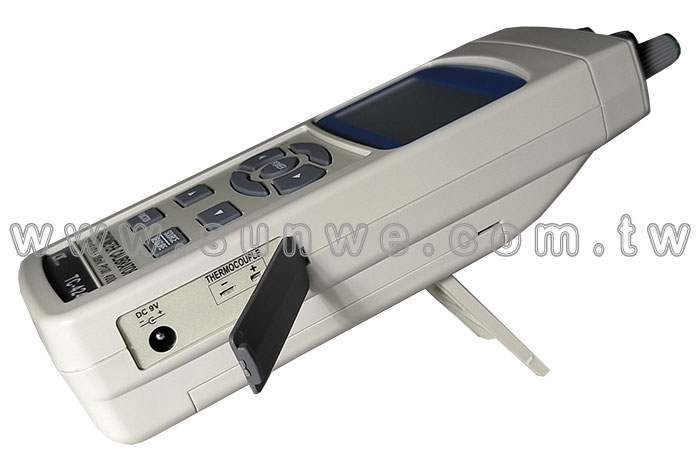

- DC 9V adapter input. ( AC/DC power adapter is
optional ).
電源電流 (Power Current)
- Normal operation ( w/o current source ) :
Approx. DC 18 mA. (LCD Backlight is ON) : Approx. + DC 2 mA.
重量 (Weight)
- Meter : 282 g/ 0.61 LB. (with cable)
附件 (Accessories Included)
- Instruction manual........................ 1 PC.
- Hard carrying case( CA-06 ).................1
PC.

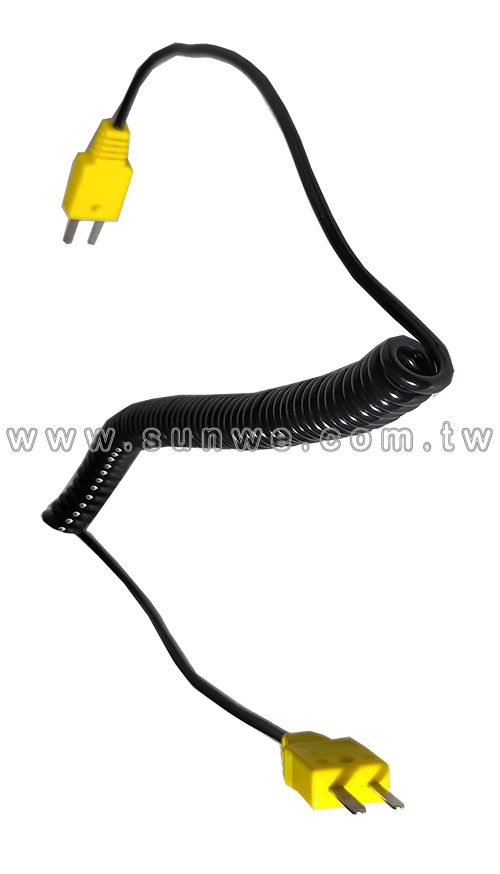

- ( Type K source output line ), AC-DUK02......1
PC.
- MTL-CP424...............................1
PC.
選購附件 (Optional Accessories)
- AC to DC 9V adapter.
- TP-01,TP-02A, TP-03, TP-04, TP-05
電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃
熱電偶 (Thermocouple)
|
Type Range of source /
measure |
Accuracy |
Resolution |
|
source |
measure |
|
K |
-200.0 to 1370.0 ℃ |
>-100℃:
±(0.05 %+ 1 ℃)
±(0.05 %+ 1.8 ℉)
<-100℃:
±(0.05 %+ 2 ℃)
±(0.05 %+ 3.6 ℉) |
>-100℃:
±(0.07%+1.5℃)
±(0.07%+2.7℉)
<-100℃:
±(0.07%+ 2 ℃)
±(0.07%+ 3.6 ℉) |
0.1 ℃/℉ |
|
-328 to 2498 ℉ |
|
J |
-200.0 to 1200.0 ℃ |
|
-328 to 2192 ℉ |
|
T |
-200.0 to 400.0℃ |
|
-328 to 752 ℉ |
|
E |
-200.0 to 1000.0 ℃ |
|
-328 to 1832 ℉ |
| R |
0
to 1768 ℃ |
<100℃:±(0.05%+3℃ or 5.4℉)
≧100℃:±(0.05%+2℃ or 3.6℉) |
<100℃:±(0.07%+3℃ or 5.4℉)
≧100℃:±(0.07%+2℃ or 3.6℉) |
1 ℃/ ℉ |
| S |
32
to 3214 ℉ |
|
* input impedence : 10 ^12
ohms.
* measure protection : DC 60 V
, AC 24 V.
* source protection :
Reference CAUTION. |
直流電壓 (DC Voltage)
|
Range of source / measure |
Display |
Resolution |
| -10.00mV to
+110.00 mV |
0.01 mV |
± ( 0.05 % +
0.03mV ) |
| * input impedence
: 10 ^12 ohms. * measure protection :
DC 60 V , AC 24 V.
* source protection : Reference CAUTION. |
Pt100
|
Range of source / measure |
Display Resolution |
Accuracy |
|
source |
measure |
| -200.0 to 850.0
℃ |
0.1 degree |
±(0.05%+0.6℃) |
±(0.05%+ 1℃) |
| -328.0 to
1562.0 ℉ |
0.1 degree |
±(0.05%+1.1℉) |
±(0.05%+ 1.8℉) |
| * input impedence
: 10 ^12 ohms. * protection :
Reference CAUTION. |
Remark :
The above specification are tested under the
environment RF Field Strength less than 3 V/M & frequency less than the 30 MHz
only.
400 Ω
|
Range of source / measure |
Display Resolution |
Accuracy |
|
source |
measure |
| 400.0 Ω |
0.1 Ω |
±(0.1%+ 0.4Ω) |
±(0.1%+ 0.6Ω) |
| * input impedence
: 10 ^12 ohms. * protection :
Reference CAUTION. * FS : full scale |
|
