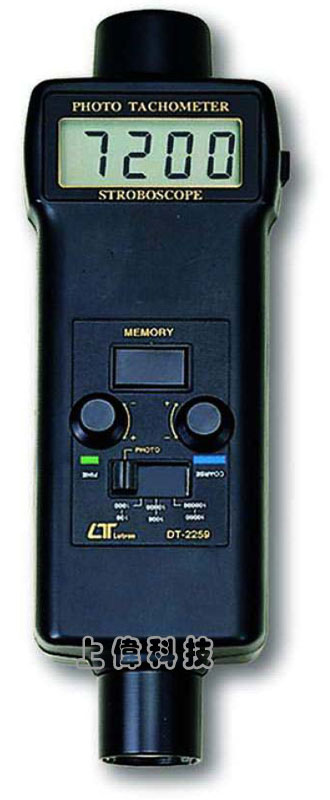

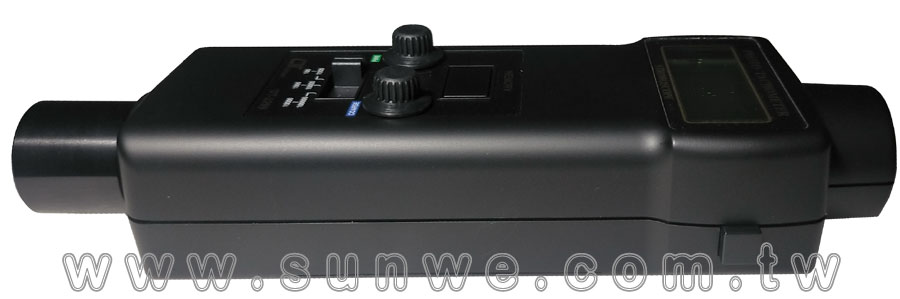

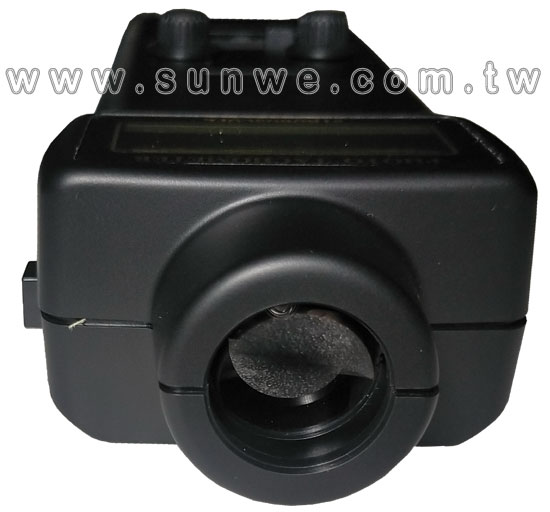

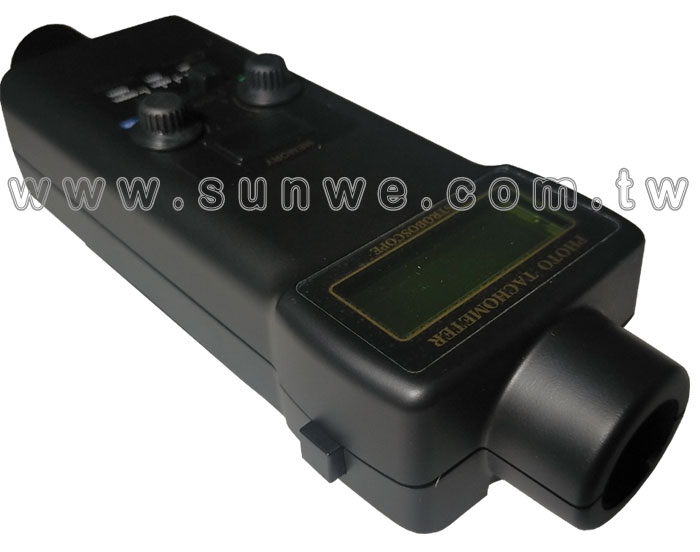

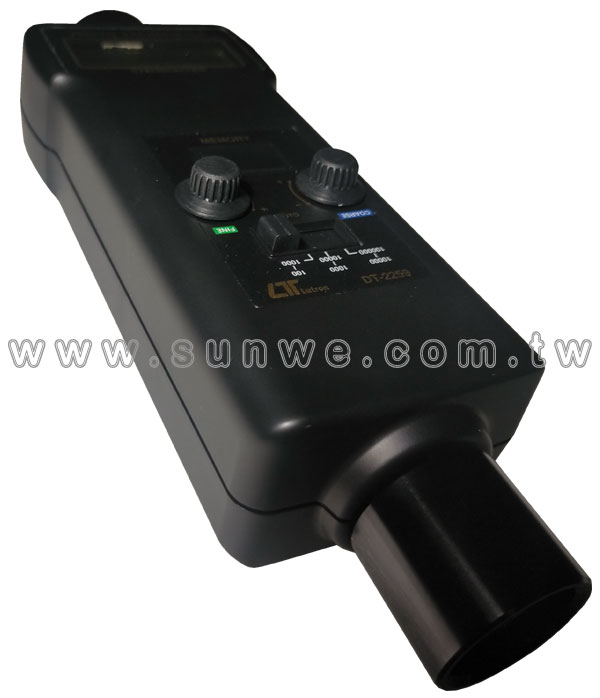

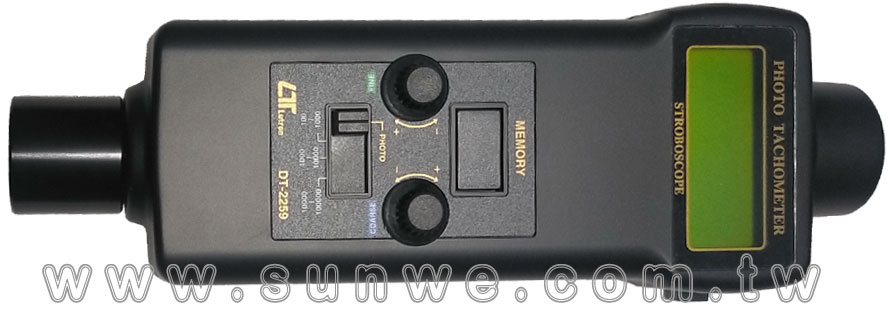

DT-2259
光電/閃頻兩用轉速計
特色
- 光電測量範圍 : 5.0 ~ 99999 RPM
- 閃頻測量範圍 :
- 100 ~ 1000 FPM/RPM
- 1000 ~ 10000 FPM/RPM
- 10000 ~ 99999 FPM/RPM
- 閃頻採用超高亮度LED,省電耐用
- 精確度 : ±0.1%
- 可記錄測量過程中之最大/最小/最後值
- 攜帶型 (電池1.5 * 4)
- Size：215 X 65 X 38mm
FEATURES
- Intelligent, microprocessor circuit design, high accuracy, wide range, digital readout.
- One instrument include two functions of " Digital Photo Tachometer " & " Digital Stroboscope "
- Digital Stroboscope :
Wide setting range from 100 RPM to 100,000 RPM, digital display with high accuracy. Modern solid state high visible orange light, long life, almost maintenance free. It is ideal for inspecting and measuring the speed of moving gears, fans, centrifuges, pumps, motors and other equipment used in general industrial maintenance, production, quality control, laboratories and as well as for schools and colleges for demonstrating strobe action.
- Digital Photo Tachometer :
No contact RPM measurement, wide measuring range from 0.5 to 100,000 RPM. 0.1 RPM resolution for the measured value < 1000 RPM. The last value, max., value, min. value can be stored into the memory automatically & be obtained by pressing " Memory Call Button ". High
visible LCD display gives RPM reading exactly with no guessing or errors.
- The use of durable, long lasting components, including a strong, light weight ABS plastic housing. Cabinet has been carefully shaped to fit comfortable in either hand.
一般規格
顯示 (Display)
- 5 digits, 10 mm ( 0.4" ) LCD ( Liquid Crystal display ) with function annunciation.
精確度 (Accuracy)
- ± ( 0.1 % + 2 digit ).
取樣時間 (Sampling Time)
- 1 second ( 60 RPM ).
時基 (Time base)
- Quartz crystal.
電路 (Circuit)
- Exclusive one-chip of microcomputer LSI circuit.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
重量 (Weight)
- 300g(0.66 LB)/including battery
尺寸 (Size)
- 215 x 65 x 38 mm. (8.5 x 2.6 x 1.5 inch).

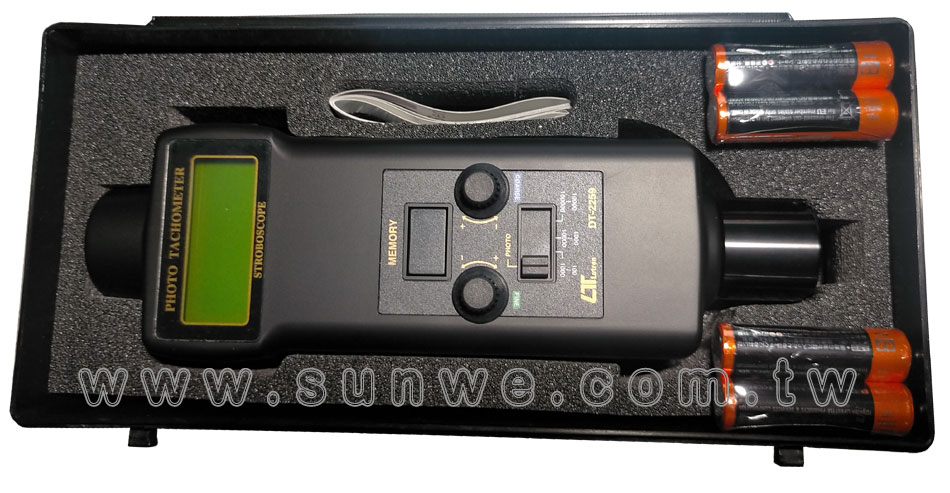

附件 (Standard Accessory)
- Carrying case ......................... 1 PC
- Operation manual....................... 1 PC.
光電轉速計電器規格
ELECTRICAL SPECIFICATIONS ( PHOTO TACHOMETER )
測量範圍 (Measurement Range)
- 5 to 99,999 RPM.
解析度 (Resolutio)
- RPM : 0.1 RPM ( < 1,000 RPM ). ; 1 RPM ( 1,000 RPM ).
光電轉速計偵測距離 (Photo Tachometer detecting distance)
- 50 to 150 mm/2 to 6 inch.
- * Typical max. 300 mm/12 inch depending upon ambient light.
閃頻轉速計電器規格
ELECTRICAL SPECIFICATIONS ( STROBOSCOPE TACHOMETER )
閃頻閃爍比率 (Stroboscopic Flash Rate)
- 100 to 100,000 FPM/RPM
- FPM : flash per minute
- RPM : round per minute
閃爍調整範圍 (Flash Adjust Range)
- 3 ranges :
- Range A: 100-1,000 FPM
- Range B: 1,000-10,000 FPM
- Range C: 10,000-100,000 FPM
解析度 (Resolution)
- 0.1 FPM/RPM. (Less than 1,000 FPM/RPM)
- 1 FPM/RPM (Over 1,000 FPM/RPM)

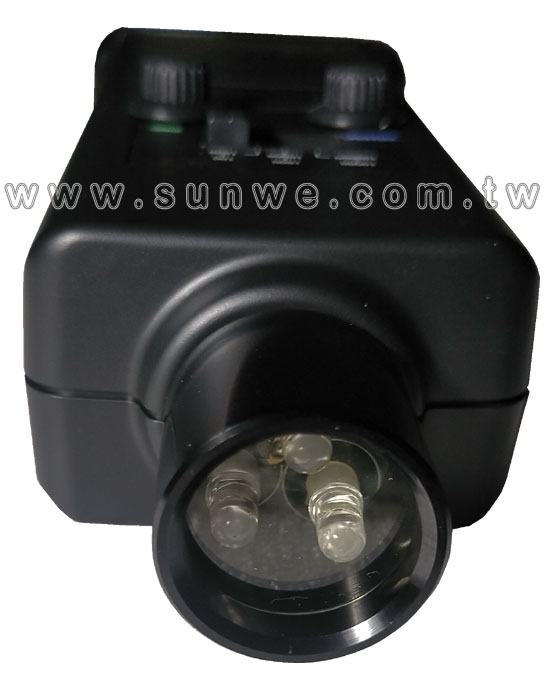

閃爍管 (Flash tube)
- High efficiency orange LED lamp.
閃爍持續力 (Flash Duration)
- Approximately 60 to 1,000 microseconds.
- Approx. 16% of period time.
閃爍顏色 (Flash color)
- Orange
閃爍調整鈕 (Flash Adjust Knob)
- Coarse adjust knob and Fine adjust knob.
校正 (Calibration)
- Crystal time base and microprocessor
circuit, don't necessary take any external calibration process.
閃頻操作程序
OPERATIONS PROCEDURES ( STROBOSCOPE )
準備 (Preparation)
- Determine the range switch to " 1000 RPM " ," 10,000 RPM " or " 100,000 RPM " position.
檢查速度 (Checking Speed)
- When checking speed, care must be taken to insure that the strobe is flashing in unison (one to one) with the object being monitored. A Stroboscope will also stop motion at 2:1, 3:1, 4:1 et., this is normally referred to as harmonies. To be sure of unison, turn the dial until two images appear - this will double the actual speed. Then lower the flashing rate until a single and stationary image appears - this is the actual true speed.
檢查動作 (Checking Motion)
- For motion analysis, simply locate the actual speed as mentioned above and then turn the dial slowly up or down. This will give a slow motion effect allowing complete inspection.
|
