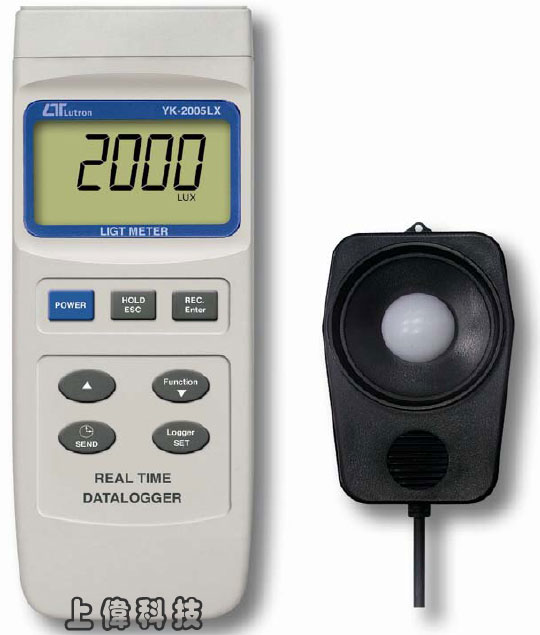

YK-2005LX
記憶型照度計
特色
- 記錄 16000 筆資料 , 含時間記錄 (年月日時分秒)
- 測量範圍 : 0.1 ~ 100000LUX / 0.1 ~ 10000 Fc.
- LUX (照度) / Ft-cd (呎/燭光) 單位選擇切換
- 精確度 : ±4%
- 感光器光譜反應符合C.I.E規範
- 內建四種光源係數補償
- 讀值鎖定記錄測量中之最大/最小值
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 203 x 76 x 38mm.
FEATURES
- Wide range, 200/2,000/20,000/100,000 LUX.
- LUX & Foot Candle unit selection.
- Spectrum of photo sensor meets C.I.E..
- 4 kinds selection lighting type (Tungsten, Fluorescent, Sodium or Mercury light ).
- Zero adjustment by push button.
- Auto range or manual range can be defaulted.
- Real time data logger, build in clock ( hour-min.-sec., year-month-date ).
- Auto data record, 16,000 Data logger no.
- Wide sampling time adjustment range from two seconds to 8 hours 59 minutes 59 seconds.
- RS232 computer interface.
- Can default auto power off or manual power off.
- Can default the display unit to LUX or Ft-cd.
- Super large LCD display with contrast adjustment for best viewing angle.
- Data hold, record max. and min. reading.
- Microcomputer circuit provides special function & offer high accuracy.
- Power by UM3 ( 1.5 V ) x 4 batteries or DC 9V adapter.
- RS232 PC serial interface.
- Separate probe, easy for operation of different measurement environment.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 58 mm x 34 mm.
測量單位 (Measurement Unit)
- Lux, Foot-candle ( Ft-cd ).
照度型態選擇 (Lighting Type Selection)
- Normal ( Tungsten ) light
- Fluorescent light
- Sodium light
- Mercury light
照度感應器結構 (Light Sensor Structure)
- The exclusive photo diode & color correction filter, spectrum meet C.I.E. Cosine correction factor meet standard.
歸零調整 (Zero Adjustment)
- by pushing button.
資料集錄器取樣時間 (Sampling Time of Data Logger)
- 2 sec to 8 hour 59 min. 59 sec. @ Auto datalogger
資料鎖定 (Data Hold)
- Freeze the display reading.
關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
- @Can default auto power or manual power off.
- @When default auto power function, power will off automatically after 10 min., if no button be pressed.
記憶回叫 (Memory Recall)
- Records Maximum, Minimum and Average readings with RECALL.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232 PC serial interface
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122° F)
操作溼度 (Operating Humidity)
- Max. 80% RH.
電源供應 (Power Supply)
- DC 1,5 V battery ( UM3 ) x 4 PCs, ( Heavy duty type ).
- DC 9V adapter input.
- @ AC/DC power adapter is optional.
電源電流 (Power Current)
- Approx. DC 19.0 mA
重量 (Weight)
- 406 g/ 0.89 LB.
體積 (Dimension)
- Main Instrument : 203 x 76 x 38 mm
- Light Sensor probe : 85x55x12 mm(3.2x2.2x0.5 inch).
附件 (Standard Accessory)
- Instruction Manual.................. 1 PC.
- Light Sensor with protection cover.. 1 PC.
- Carrying case....................... 1 PC
選購附件 (Optional Accessories)
- AC to DC 9V adapter.
- RS232 cable, UPCB-02.
- USB cable, USB-01.
- Data Acquisition software, SW-U801-WIN.
- Data Logger software, SW-DL2005.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Measurement |
Range |
In-range Display |
Resolution |
Accuracy |
| Lux |
200 LUX |
0 - 199.9 LUX |
0.1 LUX |
± (4 %+2 dgt) |
| 2,000 LUX |
180 - 1,999 LUX |
1 LUX |
| 20,000 LUX |
1,800 - 19,990 LUX |
10 LUX |
| 100,000 LUX |
18,000 - 100,000 LUX |
100 LUX |
| Foot-candle (Fc) |
20 Ft-cd |
0 - 18.6 Ft-cd |
0.01 Ft-cd |
± (4 %+2 dgt) |
| 200 Ft-cd |
16.7 - 186.0 Ft-cd |
0.1 Ft-cd |
| 2,000 Ft-cd |
167 - 1,860 Ft-cd |
1 Ft-cd |
| 10,000 Ft-cd |
1,670 - 10,000 Ft-cd |
10 Ft-cd |
- Note : Accuracy tested by a standard parallel light tungsten lamp of 2856 K degree temperature.
|
