LX-1128SD
記憶式照度/溫度計
特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 測量範圍 : 0 ~ 100000LUX / 0.1 ~ 10000 Fc.±4%
- LUX (照度) / Ft-cd (呎/燭光) 單位選擇切換
- 感光器光譜反應符合C.I.E規範
- 溫度
- TYPE K : -50 ~ 1300.0°C.±4%
- TYPE J : -50 ~ 1200.0°C.±4%
- 讀值鎖定記錄測量中之最大/最小值
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 177 x 68 x 45mm.
FEATURES
- 3 ranges, 2,000/20,000/100,000 LUX.
- LUX & Foot Candle unit selection with default.
- Auto range for light measurement.
- Spectrum of photo sensor meets C.I.E..
- Light measurement with zero adjustment by push button.
- Separate probe, easy for operation of different measurement environment.
- Type K, Type J thermocouple thermometer.
- Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.
- Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
- SD card capacity :
1 GB to 16 GB.
- LCD with green light backlight, easy reading.
- Can default auto power off or manual power off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
- RS232/USB PC COMPUTER interface.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- LCD with green backlight ( ON/OFF ).
測量單位 (Measurement Unit)
- Light : LUX, Feet candle ( Ft-cd )
- Type K/J thermometer : ℃ or ℉.
照度感應器結構 (Light Sensor Structure)
- The exclusive photo diode & color correction filter, spectrum meet C.I.E. Cosine correction factor meet standard.
歸零調整 (Zero Adjustment)
- by pushing button.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second. @ Manual mode, can also select the 1 to 99 position ( Location ) no.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Decimal point of SD card setting
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Set thermometer type to Type K or Type J
- * Set temperature unit to ℃ or ℉
- * Set sampling time
- * SD memory card Format
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the type K/J thermometer.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp.)
- Meter : 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.

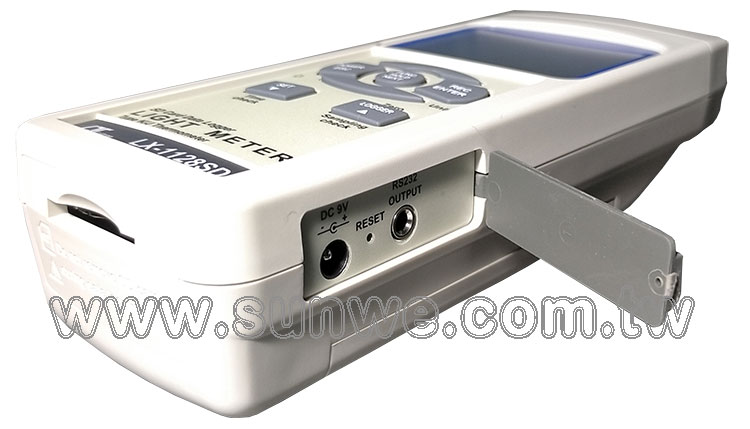

- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 6.5 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 30 mA.
- * AIf LCD backlight on, the power consumption will increase approx. 16 mA.
重量 (Weight)
- 489 g/1.08 LB.
體積 (Dimension)
- 177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)
附件 (Standard Accessory)
- Instruction manual...................... 1 PC

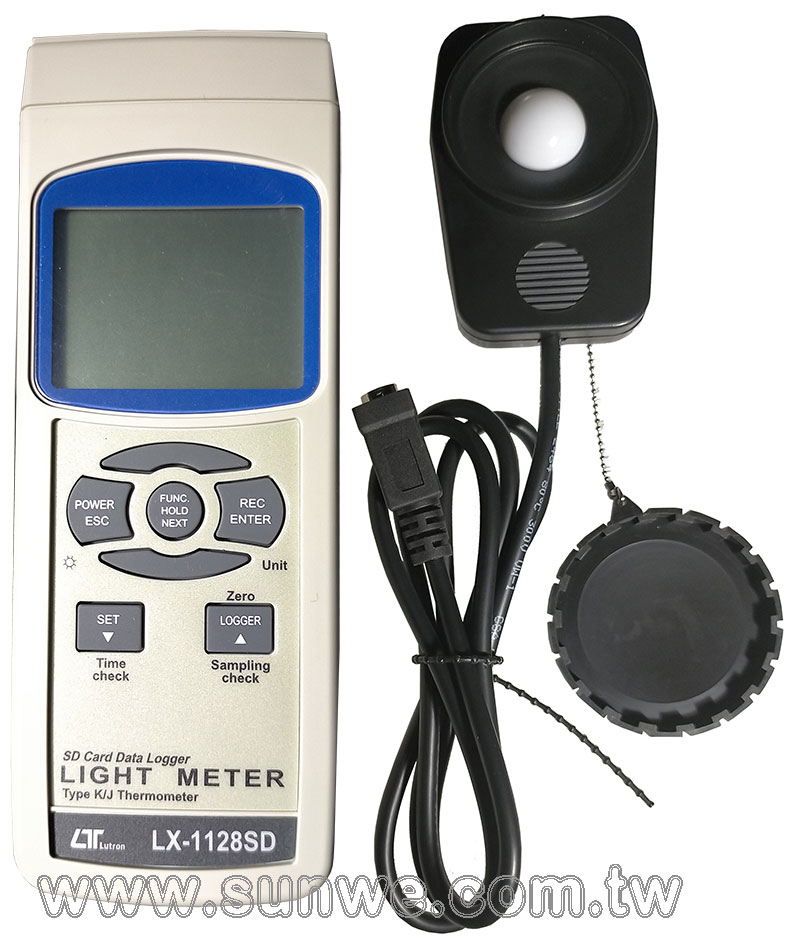

- Light sensor with protective cover.......1 PC
- Soft carrying case ( CA-05A )............1 PC
選購附件 (Optional & accessories)

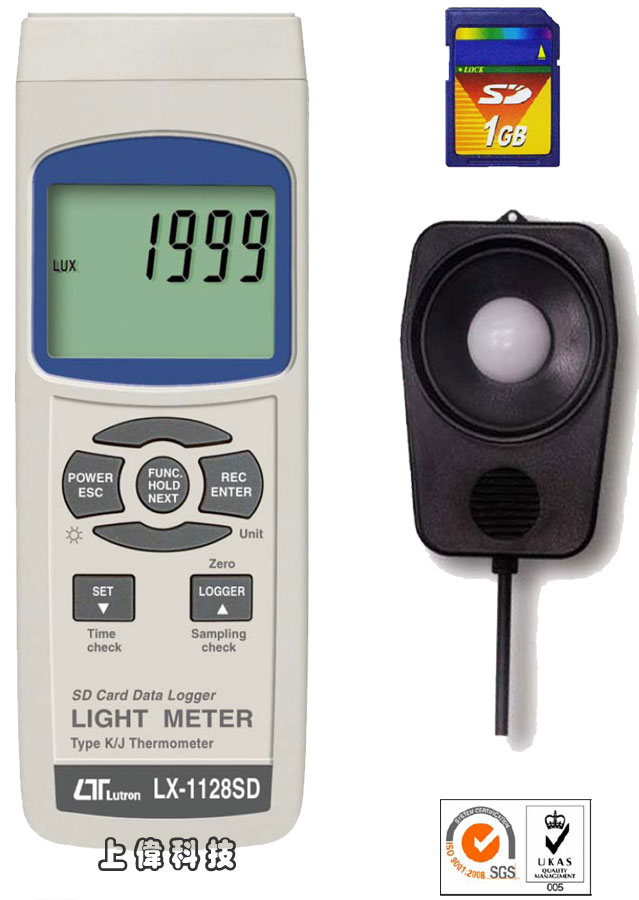

- SD Card ( 1 GB )
- SD Card ( 2 GB )
- Type K thermocouple probe.
- AC to DC 9V adapter.
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data Acquisition software, SW-U811-WIN.
- Hard carrying case, CA-06.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Measurement |
Range |
In-range Display |
Resolution |
Accuracy |
| Lux @ auto range |
2,000 Lux |
0 - 1,999 Lux |
1 Lux |
± ( 4 % + 2 d ) |
| 20,000 Lux |
1,800 - 19,990 Lux |
10 Lux |
± ( 4 % + 2 d ) |
| 100,000 Lux |
18,000 - 100,000 Lux |
100 Lux |
± ( 4 % + 2 d ) |
| Foot-candle (Fc) @ auto range |
200 Fc |
0 - 186.0 Fc |
0.1 Ft-candle |
± ( 4 % + 2 d ) |
| 2,000 Fc |
167 - 1,860 Fc |
1 Ft-candle |
± ( 4 % +2 Ft-cd ) |
| 10,000 Fc |
1,670 - 10,000 Fc |
10 Ft-candle |
± ( 4 % +2 Ft-cd ) |
- Note : Accuracy tested by a standard parallel light tungsten lamp of 2856 K degree temperature.
K/J型溫度計 (Type K/J thermometer)
| Sensor type |
Resolution |
Range |
Accuracy |
| Type K | 0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.4 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| Type J | 0.1 ℃ |
-50.0 to 1200.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2192.0 ℉ |
± ( 0.4 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
|
