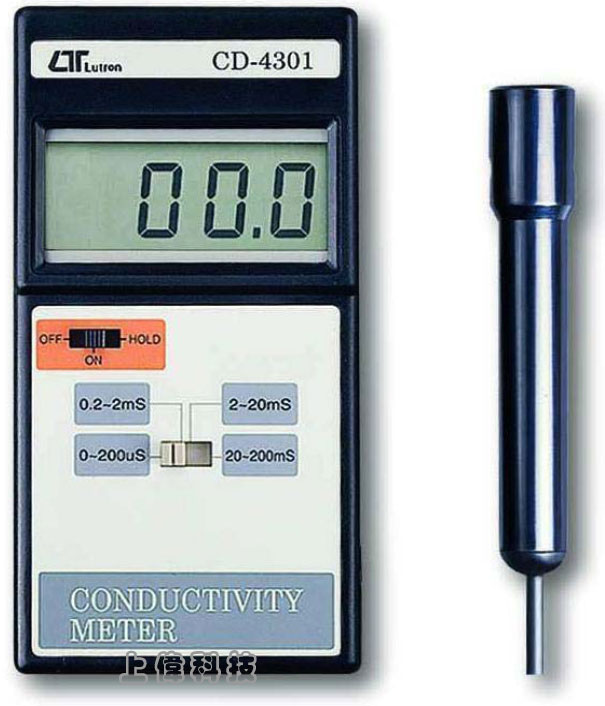

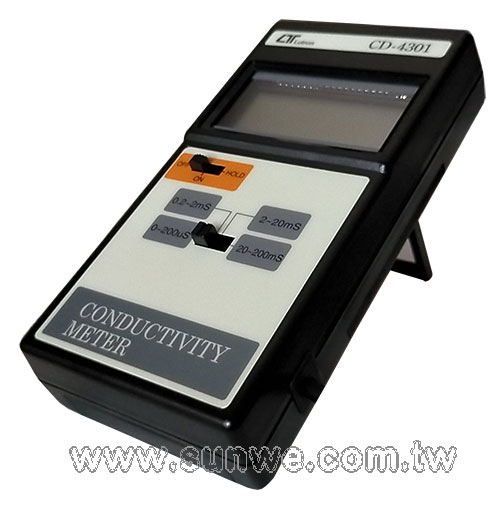

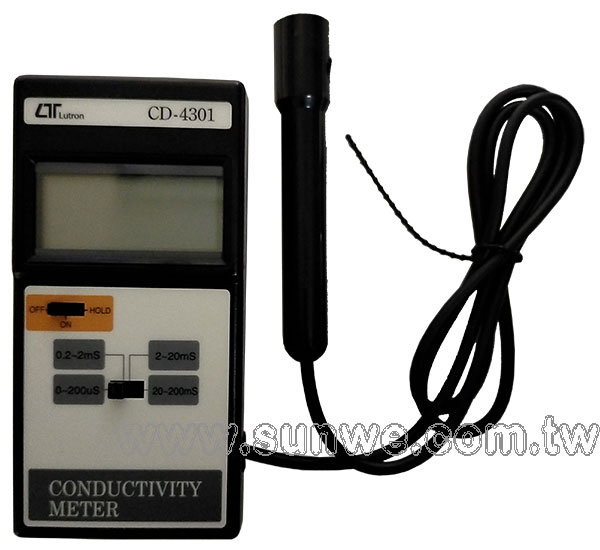

CD-4301

專業型電導度計

特色

測量範圍 :

0.1 ~ 199.9uS

0.2 ~ 1.999mS

2 ~ 19.99mS

20 ~ 199.9mS

精確度 : ±2% (滿刻度)

具有自動溫度補償功能

具讀值鎖定功能

Size : 168 x 80 x 35 mm

FEATURES

The portable conductivity meter provides fast, accurate readings, with digital readability and the convenience of a remote probe separately.

Multi-measuring ranges: 199.9 uS, 1.999 mS, 19.99 mS.

DATA HOLD function for stored the desired value on display.

Large LCD display for low power consumption & clear read-out even in bright ambient light condition.

Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.

Compact size, designed for easy carry out & operation.

Built-in low battery indicator.

Wide applications: water contioning, aquariums, beverage, fish hatcheries, food processing, photography, laboratory, paper industry, plating industry, quality control, school & college, water conditioning.

一般規格

顯示 (Display)

18 mm (0.7") LCD, 3 1/2 digits.

max. display 1999.

測量範圍 (Measurement Range)

199.9 uS

1.999 mS

19.99 mS

Data Hold.

* Build in 199.9 mS range, it only for reference, not specify the accuracy.

解析度 (Resolution)

0.1 uS for 199.9 uS range.

0.001 mS for 1.999 mS range.

0.01 mS for 19.99 mS range.

uS : micro Simens

mS : milli-Simens

精確度 (Accuracy)

± ( 2% F.S. + 1 d ).

* 23± 5 ℃

* F.S. : full scale

過載指示 (Over Range Indicator)

Display shows '1'.

取樣時間 (Sampling Time)

Approx. 0.4 sec

操作溫度 (Operating Temp.)

0 to 50 ℃.  (32 to 122 ℉ ).

操作溼度 (Operating Humidity)

Less than 80% R.H.

電源供應 (Power Supply)

006P DC 9V battery (heavy duty type).

電源電流 (Power Current)

 Approx. DC 5 mA

重量 (Weight)

340 g/0.75 LB(w/battery & electrode).

體積 (Dimension)

meter : 168 x 80 x 35mm (6.6 x 3.2 x 1.2 inch).

electrode : Round, 22 mm Dia. x 120 mm length.

附件 (Standard Accessory)

Instruction Manual.......................... 1 PC.

Conductivity electrode...................... 1 PC.

Carrying Case............................... 1 PC.

校正液 (Calibrtaion Solution)

Optional, 1.413 mS calibration solution, CD-14.

　

　

　
