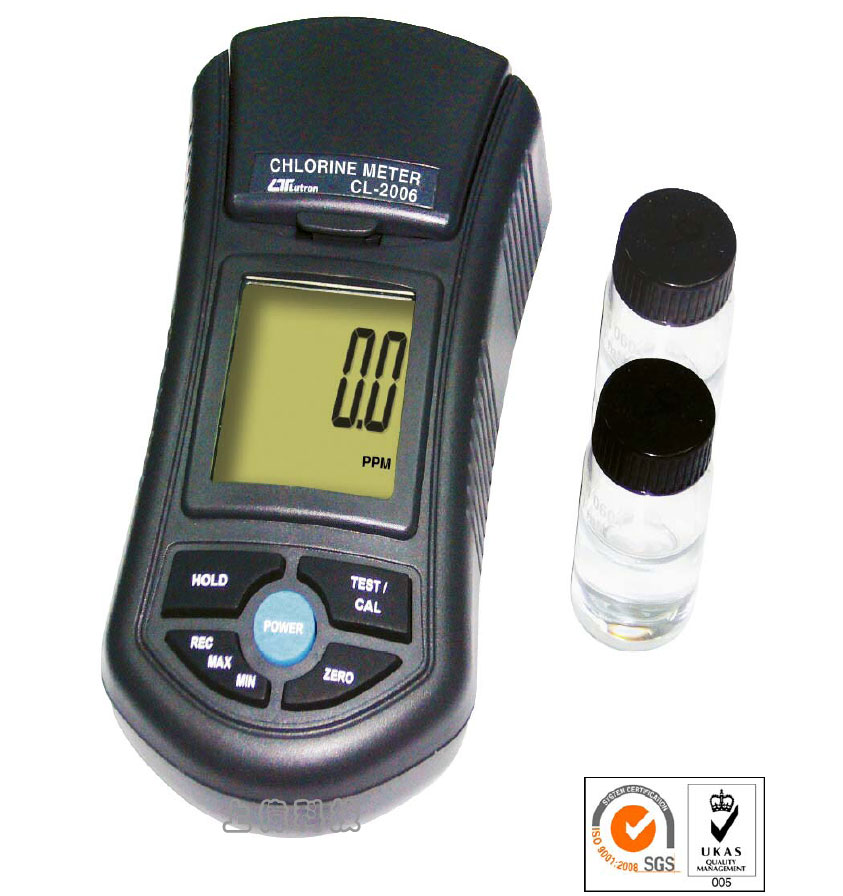

CL-2006
餘氯/總氯測試儀
特色
- 餘氯測量範圍 : 0 ~ 3.50ppm (mg/L)
- 總氯測量範圍 : 0 ~ 3.50ppm (mg/L)
- 精確度 : ±0.02ppm (mg/L)
- 光源：發光二極體，波長525nm
- 光源偵測：光電管
- 取樣容量：10mL
- 可記錄最大值,最小值及讀值鎖定
- Size : 155 x 76 x 62mm
FEATURES
- The meter measures the Free and Total chlorine ( CL ) in the 0.00 to 3.50 ppm ( mg/L ).
- The measuring method is an adaptation of the USEPA Method 330.5 for waste water and Standard Method 4500-Cl G for drinking water.
- The advanced optical system based on a special narrow band LED lamp that allows most accurate and repeatable reading.
- Friendly and powerful calibration function are able to validate good performance of your meter at any time.
- 1.00 ppm Free standard solution and 1.00 ppm Total standard solution are includes as the standard accessories.
- The unique optics structure, enables the instrument to read with high resolution : 0.01 ppm ( mg/L ).
- Splash waterproof on the front panel.
- Jumbo LCD, easy readout.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
- Battery operated for field and on-site testing convenience.
- Data hold function for freezing the desired value on display.
- Records Maximum and Minimum reading with Recall.
- Heavy duty & compact housing with hard carrying case, designed for easy carry out & operation.
- Auto shut off is available to save battery life.
- Application : Test swimming pool, municipal water, food and beverage water, or other aqueous solution where fluid clarity is important.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 41 mm x 34 mm
範圍 (Range)
- Free chlorine ( CL ) :
0.00 to 3.50 ppm ( mg/L ).
- Total chlorine ( CL ) : 0.00 to 3.50 ppm ( mg/L ).
解析度 (Resolution)
- 0.01 ppm ( mg/L ).
精確度 (Accuracy)
- ± 0.02 ppm ( mg/L ). @ 1.00 ppm ( mg/L )
光源 (Light source)
- LED, 525 nm.
光源偵測器 (Light detector)
- Photo diode
反應時間 (Response time)
- Less than 10 seconds.
樣品音量 (Sample volume)
- 10 mL.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
方法 (Method)
- The measuring method is an adaptation of the USEPA Method 330.5 and Standard Method 4500-Cl G.
- * The reaction between free ( total ) chlorine and the DPD reagent cause a pink tint in the sample.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
校正點 (Calibration points)
- Zero chlorine.
- 1.00 ppm ( Free chlorine ).
- 1.00 ppm ( Total chlorine ).
操作溫度 (Operating Temp.)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- DC 1,5 V battery ( UM3 ) x 6 PCs, or equivalent.
電源電流 (Power Current)
- Stand by : Approx. DC 4 mA.
- Testing : Approx. DC 12 mA.
重量 (Weight)
- 320 g/0.70 LB. @ Battery is included.
尺寸 (Size)
- 155 x 76 x 62 mm ( 6.1 x 3.0 x 2.4 inch)
附件 (Standard Accessory)
- Hard cayying case, CA-08........................1 PC
- Instruction manual..............................1 PC
- 1.0 ppm Free Chlorine standard solution, CF-01..1 PC
- 1.0 ppm Total Chlorine standard solution, CT-01 1 PC
- Zero Chlorine standard solution, CL-01..........1 PC
- Empty testing bottle............................2 PCs
- Clean cloth.....................................1 PC
- Free Chlorine DPD powder........................10 PCs
- Total Chlorine DPD powder.......................10 PCs
選購附件 (Optional & accessories Temp. Probe)
- Free Chlorine DPD powder ( 10 PCs ), Model : CFP-10
- Total Chlorine DPD powder ( 10 PCs ), Model : CTP-10
- Empty testing bottle, Model : 0601
- 1.0 ppm Free Chlorine standard Model : CF-01
- 1.0 ppm Total Chlorine standard, Model : CT-01
- Zero Chlorine standard solution, Model : CL-01
|
