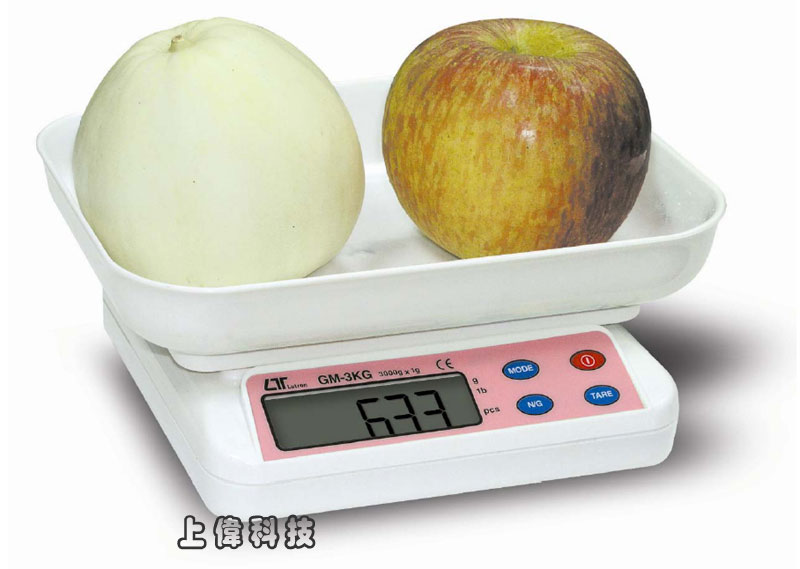

GM-3KG

計重秤

特色

秤量範圍 : 3 ~ 3000公克

解析度 : 1g

附料理專用秤盤,可適用於廚房用秤

秤量單位切換,公克/磅/台斤/PCS

具有自動背光及計數功能

具有自我校正及扣重,歸零功能

自動關機省電功能

Size : 150 x 145 x 48mm

FEATURES

3000 g measuring capacity with 1 g resolution.

Full capacity tare function capability.

Net weight, gross weight display.

With counting scale function.

Digital display, easy measurement.

Back light LCD display.

Gram, pound display unit.

Auto power off.

Auto calibration capability.

Durable & portable housing plastic case.

LOAD CELL transducer, high precision.

Use exclusive microprocessor LSI-circuit, high reliability.

Battery or DC 9V adapter power supply.

規格

顯示 (Display)

5 digits w/annunciator.

15 mm ( 0.59 mm ) digit height.

測量容量 (Measuring Capacity)

3000 g/6.6 lb.

解析度 (Resolution)

1 g/0.002 lb.

最低顯示重量 (Min. Display Weight)

3 g/0.006 lb.

精確度 (Accuracy)

± ( 0.1 % + 2 d ) * After the calibration.

單位選擇 (Unit select)

g or lb.

功能 (Function)

Weight scale, Counting scale.

取樣時間 (Sampling time)

Approx. 0.8 second.

容器重量控制 (Tare Control)

Full capacity.

轉換器 (Transducer)

Load cell.

電路 (Circuit)

Exclusive LSI-circuit.

過載指示 (Over range Indicator)

Show " EEEEE ".

主體尺寸 (Cabinet Size)

150 x 145 x 48 mm ( 5.9 x 5.7 x 1.9 inch )

測盤尺寸 (Platform Size)

195 x 150 mm. ( 7.7 x 5.9 inch )

電源供應 (Power Supply)

6 x 1.5V AA (UM-3) batteries, or DC 9V adapter.(not included).

電源損耗 (Power Consumption)

 Approx. DC 15 mA

附件 (Standard Accessory)

Operating manual .................... 1 PC.

　
