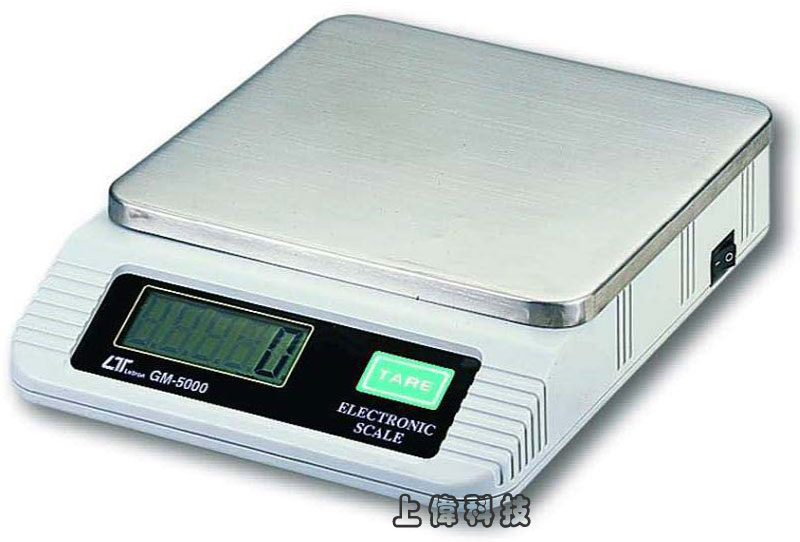

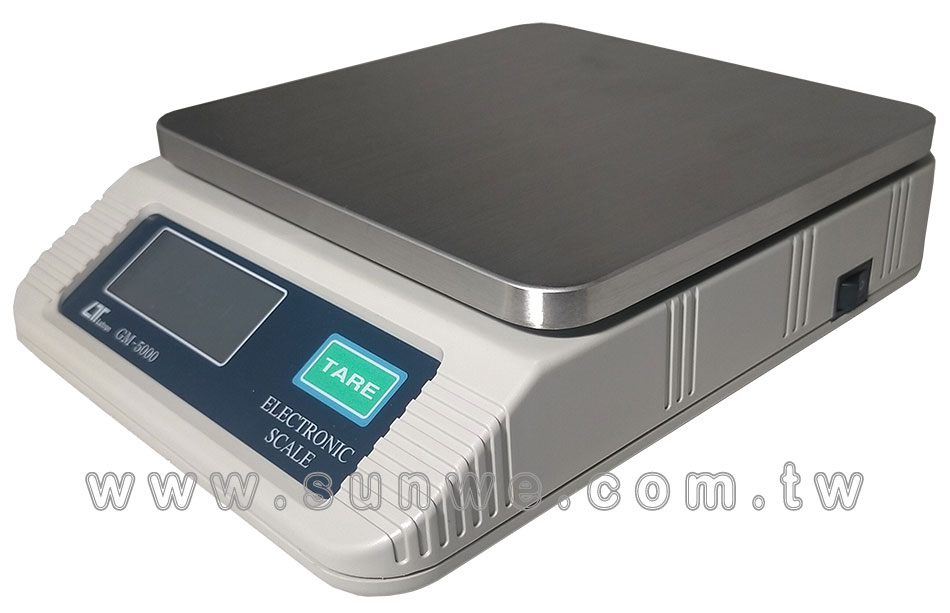

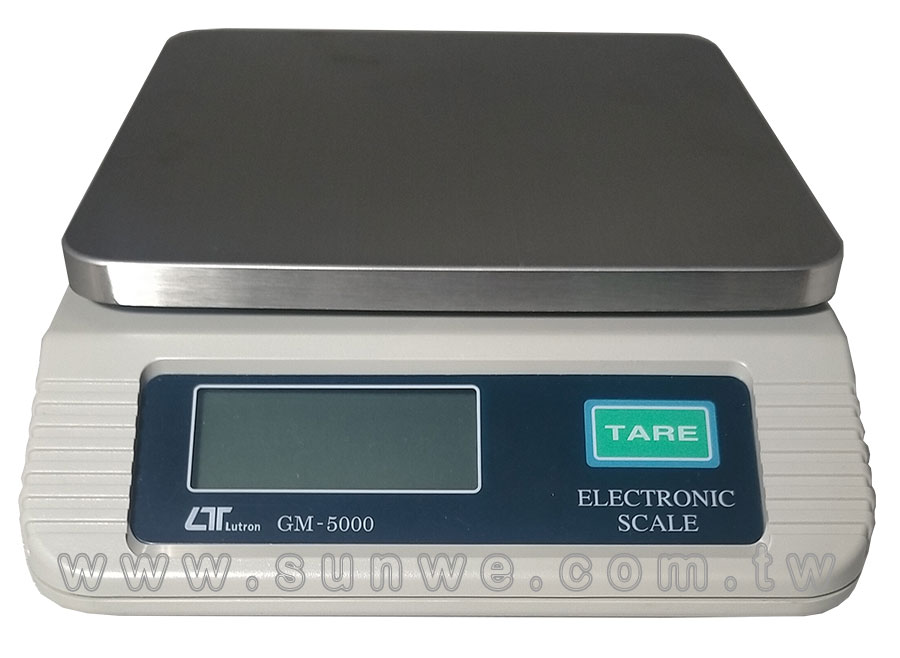

GM-5000
數字磅秤
特色
- 秤量範圍 : 3 ~ 5000公克
- 解析度 : 1公克
- 精確度 : ±0.3%
- 具有扣重'歸零功能
- 公克/盎司單位切換
- GM-5000 有 RS-232/USB 連接介面(軟體選購)
- Size : 240 x 185 x 50mm
FEATURES
- Microprocessor circuit with high accuracy & better performance.
- High resolution & wide measuring capacity, 5,000 g x 1 g.
- Large LCD display, 18 mm ( 0.7" ) digit size, easy read out.
- Built-in gram & oz display unit, select by the internal slide switch.
- With computer series data output.
- Heavy duty ABS housing plastic case.
規格
顯示 (Display)
- LCD, 18 mm ( 0.7" ) digit size,
- 5 digits with annunciator.
測量容量 (Measuring Capacity)
- 5,000 g
解析度 (Resolution)
- 1 g
最低顯示重量 (Min. Display Weight)
- 3 g
單位選擇 (Unit select)
- g or oz, select by internal slide switch.
精確度 (Accuracy)
- ± ( 0.3 % +1 d )
- * After the moment when the self-calibration be executed.
取樣時間 (Sampling time)
- Approx. 0.8 second.
容器重量控制 (Tare Control)
- Full capacity.
轉換器 (Transducer)
- Load cell.
電路 (Circuit)
- Microprocessor circuit.
資料輸出 (Data output)

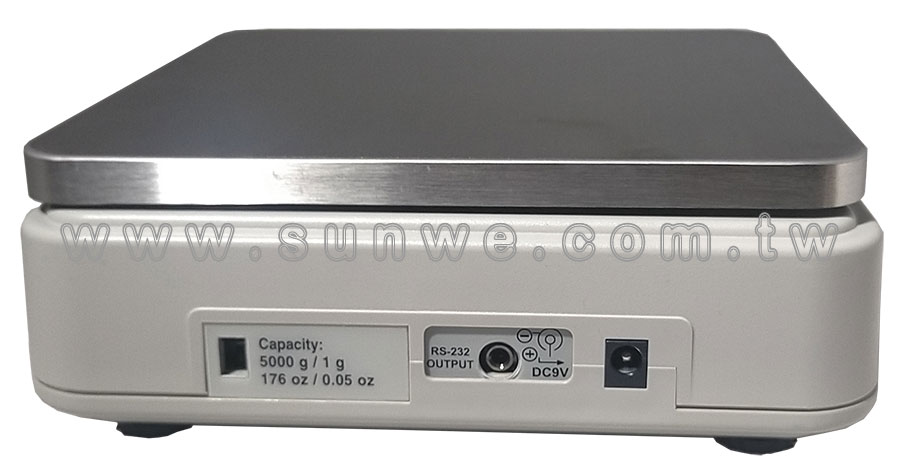

- RS-232 serial output, 9600 bud rate.
操作溫度 (Operating Temp.)
- 0 to 50 ℃. (32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
尺寸 (Size)
- Cabinet : 250 x 188 x 70 mm
- Platform: 185 x 185 mm.
電源供應 (Power Supply)
- 6 x 1.5V AA (UM-3) batteries, or DC 9V adapter.(not included).
電源損耗 (Power Consumption)
- Approx. DC 27 mA
附件 (Standard Accessory)
- Operating manual .................... 1 PC.
選購附件 (Optional Accessories)
- * RS232 Interface cable for connecting between scale & the computer ( COM port ), Model : UPCB-02
- * USB Interface cable for connecting between scale & the computer ( USB port ), Model : USB-01
- * Application Software, Model : SCALE-U002, After setup whole hardware system ( Scale + RS-232 cable + Personal Computer ), then can use the software SCALE-U002 can execute the whole system as the counting scale.
|
