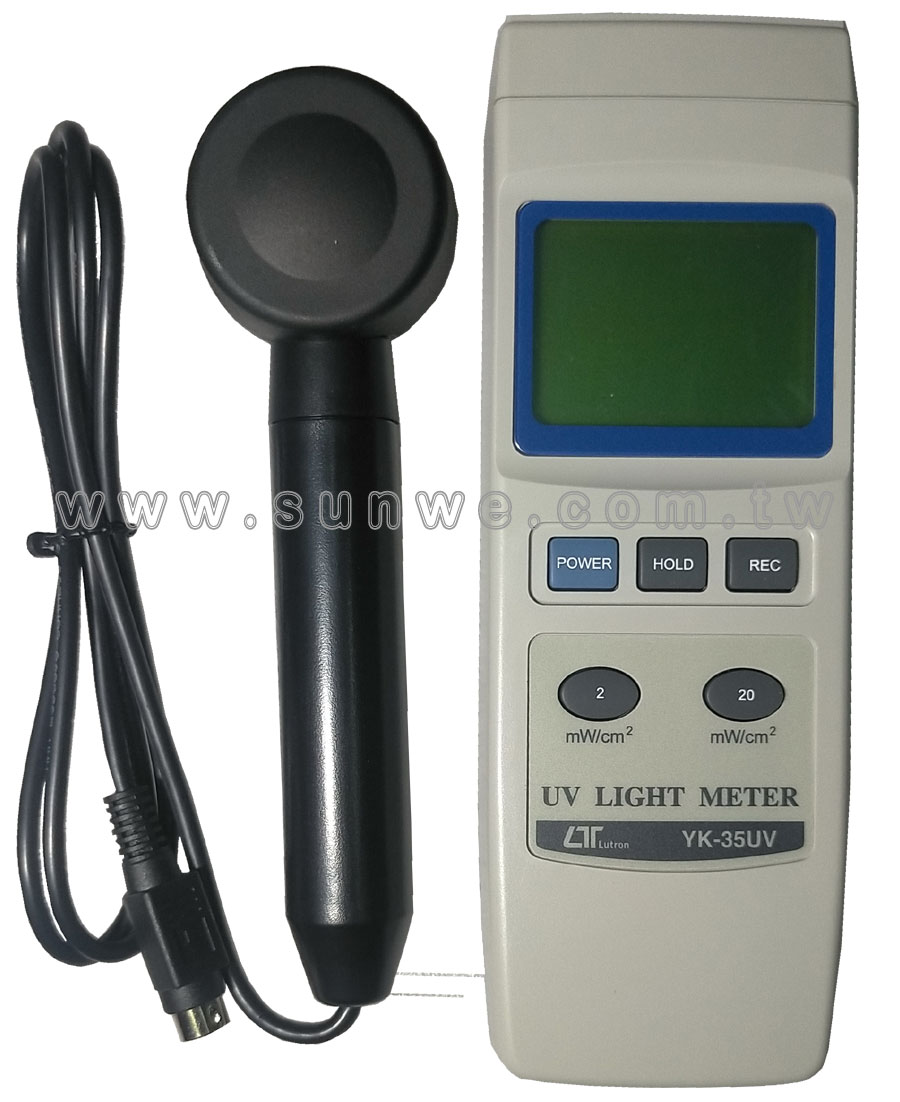

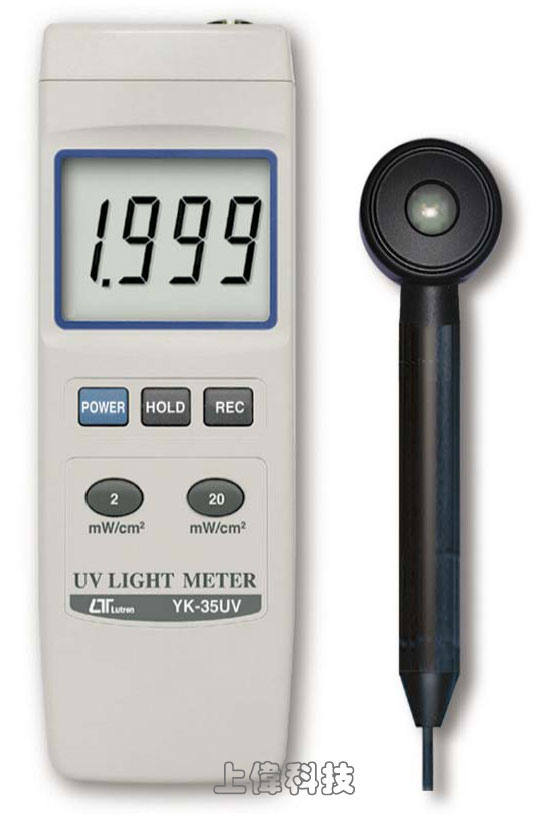

YK-35UV
紫外線強度計
特色
- 專業，高品質的UV測量儀。
- UVA和UVB的紫外線輻射測量。
- UV檢測器光譜從260nm 到390nm。
- 兩個範圍：2 mW /cm^2，20 mW /cm^2。
- 獨有的UV傳感器結構。
- 帶餘弦校正濾波器的傳感器。
- 內建歸零按鈕
- 微處理器電路提供高可靠性和耐用性。
- 單獨的UV LIGHT探頭允許用戶在最佳位置測量UV光。
- LCD顯示，便於讀出。
- RS-232 / USB 電腦介面。
- DC 9V電池電源供應。
- 內置DC 9V電源變壓器輸入插座。
- 堅固的外殼。
工業應用
- 監測焊接中的藍光輻射危害。
- 紫外線殺菌
- 形象藝術。
- 光化學匹配。
- UV EPROM清除。
- 光刻膠曝光。
- 油墨，粘合劑和塗料的固化。
實驗室應用
- 風化“降解研究”。
- 紫外線殺菌
- 病毒學。
- 微生物遺傳學。
- DNA研究。 *生物罩。
- 一般實驗室使用。
FEATURES
- Professional, high quality UV meter.
- Ultra-violet
irradiation measurement for UVA & UVB.
- UV detector spectrum from 260 nm to 390 nm.
- Two ranges : 2 mW/cm^2, 20 mW/cm^2.
- Exclusive UV sensor structure.
- Sensor with cosine correction filter.
- Build Zero button.
- Microprocessor circuit provides high reliability and
durability.
- Separate UV LIGHT probe allows user to measure the UV
light at an optimum position.
- LCD display, easy readout.
- RS-232/USB computer interface.
- DC 9V battery power supply.
- Build in DC 9V power adapter input socket.
- Heavy duty & compact housing case.
Industrial APPLICATIONS
- Monitoring blue light radiation hazards in welding.
- UV sterilization
- Graphic arts.
- Photochemical matching.
- UV EPROM erasure.
- Photoresist exposure.
- Curing of inks, adhesives and coatings.
Laboratory APPLICATIONS
- Weathering
" degradation studies."
- UV
sterilization
-
Virology.
-
Microbial genetics.
-
DNA research. * Biologic
hoods.
-
General laboratory
use.
一般規格
顯示 (Display)
- LCD size : 51 mm x 37 mm.
- Maximum indication 1999 counts.
測量及範圍 (Measurement & Ranges)
- Range 1 : 2 mW/cm^2 : 1.999 mW/cm^2 x 0.001 mW/cm^2
- Range 2 : 20 mW/cm^2 : 19.99 mW/cm^2 x 0.01 mW/cm^2
UV感應器頻譜 (UV sensor spectrum)
- Band pass 260 nm to 390 nm..
精確度 (Accuracy)
- ± ( 4 % FS + 2 dgt ) FS : full scale
- * Calibration is executed under the UVA light and and compare with the standard UVA light meter.
- * Spec. tested under the environment RF Field Strength less than 3 V/M & frequency less than the 30 MHz only.
感應器結構 (Sensor Structure)
- The exclusive UV photo sensor with the cosine correction filter.

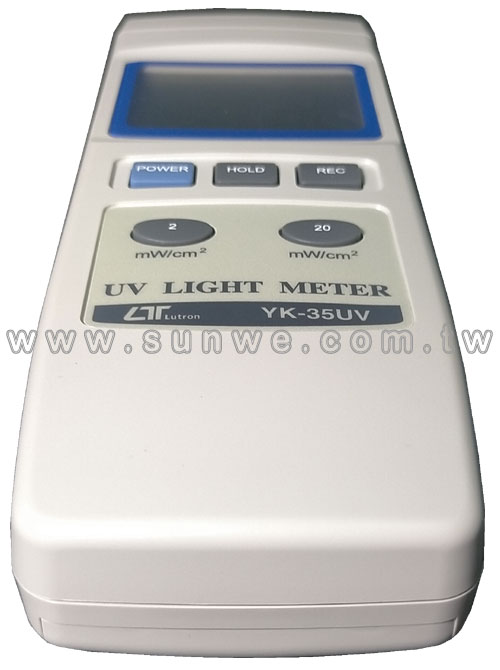

Power button, Zero button, Range switch
按鍵 (Buttons)
- Power button, Hold button, REC button, Range button, Zero button.
取樣時間 (Sampling Time)
- Approx. 1 sec
電路 (Circuity)
- Microprocessor circuit.
資料輸出 (Data Output)
- RS 232/USB PC serial interface.
過載輸入指示 (Over Range Indication)
- Indication of "- - - -".
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122° F)
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent.
- DC 9V adapter input.
- @ AC/DC power adapter is optional.
電源損耗 (Power Consumption)
- Approx. DC 6 mA
重量 (Weight)
- 383 g / 0.55 LB (including battery)
體積 (Dimension)
- Main Instrument : 200x68x30 mm (7.9x2.7x1.2 inch ).

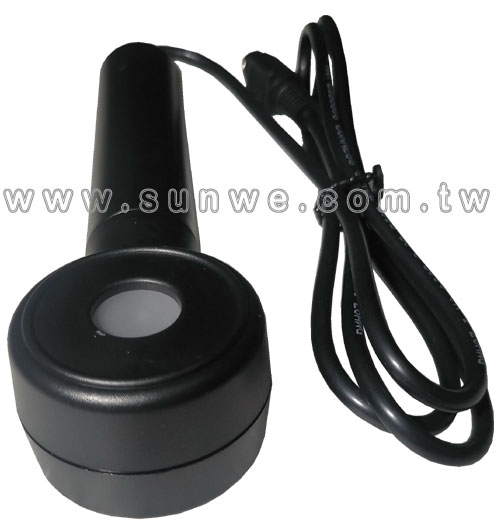

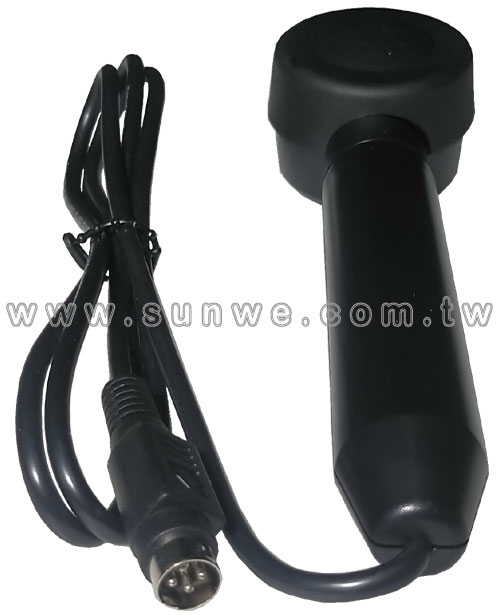

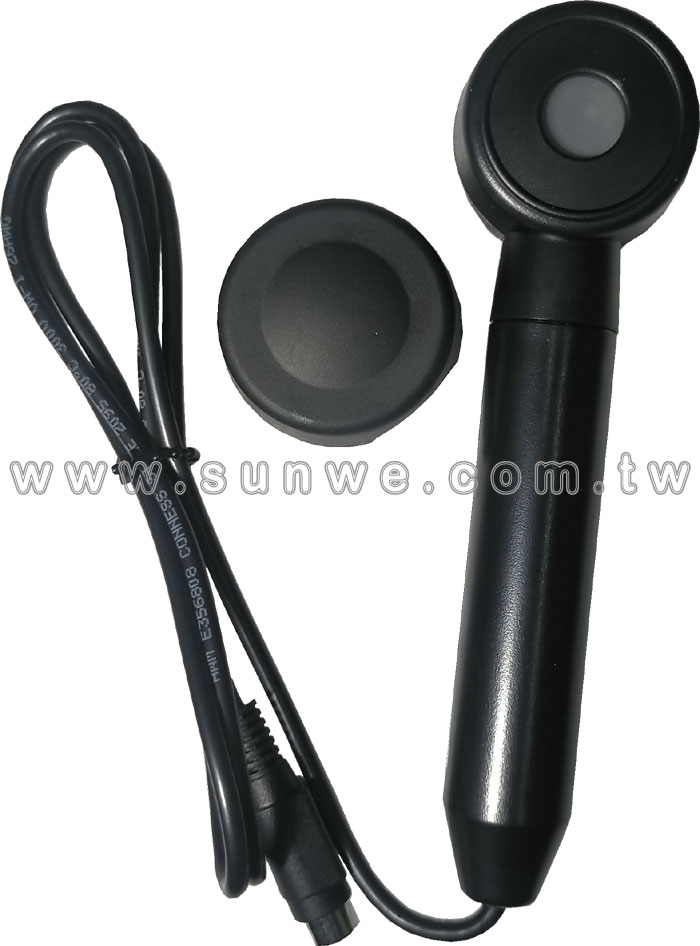

- Sensor probe head :
45 mm dia x 32 mm.
- Sensor probe handle : 125 x 24 mm dia
附件 (Standard Accessory)
- Instruction Manual... 1 PC.
- UV sensor probe...... 1 PC.
選購附件 (Optional Accessories)
- AC to DC 9V adapter.
- RS232 cable, UPCB-02.
- USB cable, USB-01.
- Data Acquisition software, SW-U801-WIN.
- Soft carrying case, CA-05A.
- Hard carrying case, CA-06.
|
