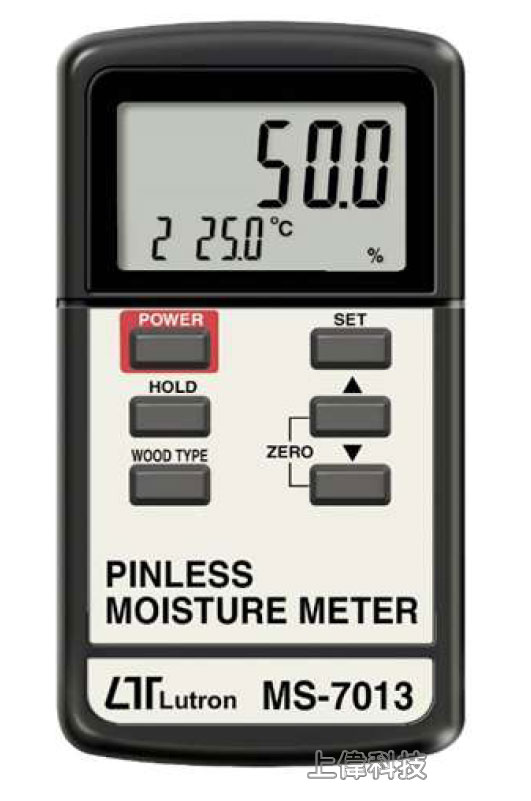

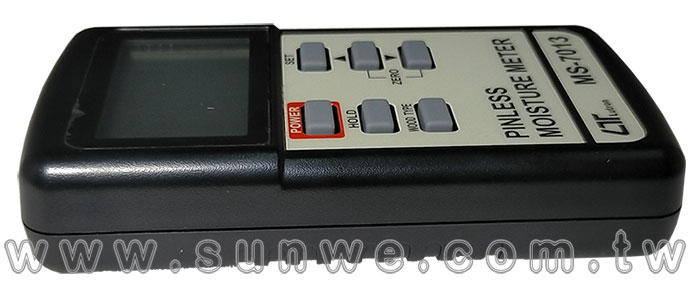

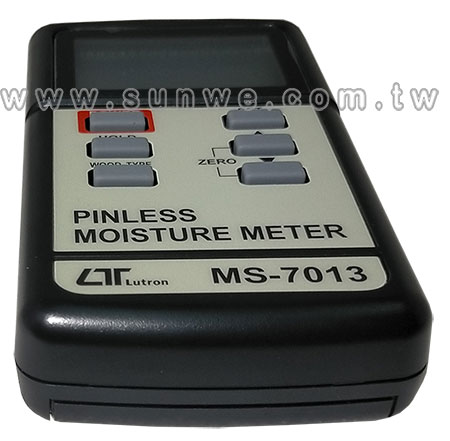

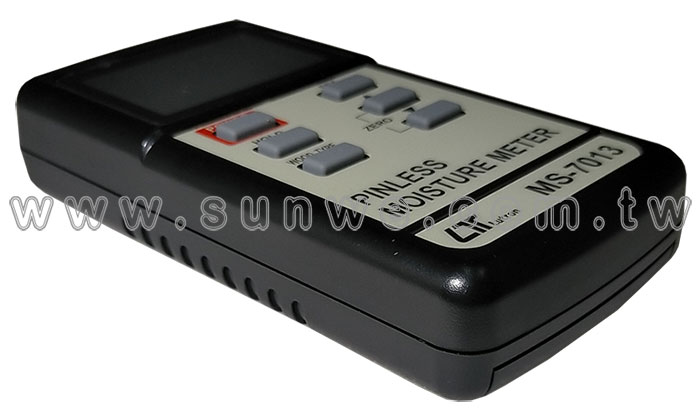

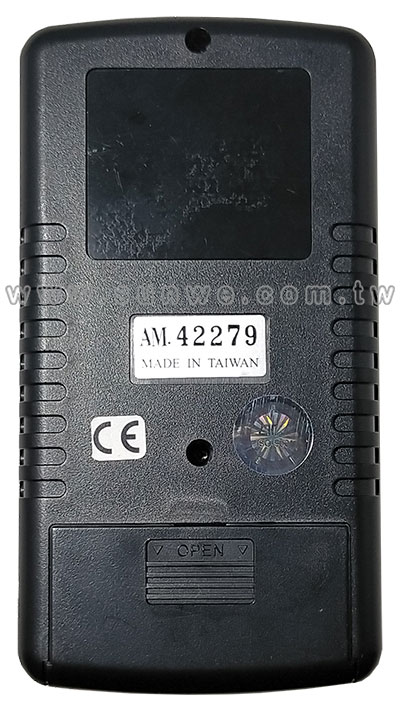

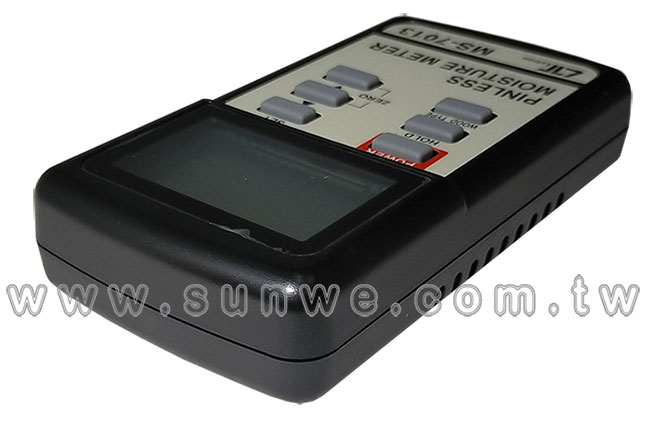

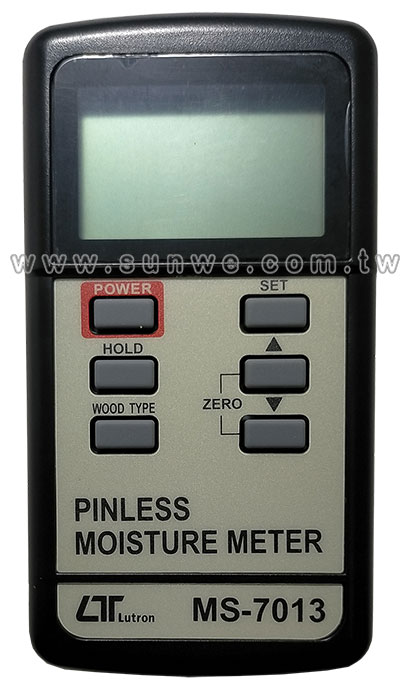

MS-7013
掃描式木材水分計
特色
- 無針式木材水分測量
- 內建8種木材密度類型選擇
- 測量範圍 : 0 ~ 50% ,±1.5%
- 溫度範圍 : 0 ~ 50°C
,±2°C
- 儀表內置掃描感應器
- 讀值鎖定功能
- Size : 131 x 70 x 25mm.
FEATURES
- Designed to check the moisture level of wood.
- Use high-frequency induction, will not damage
the wood surface
- 0 % to 50 % moisture range on wood.
- 0℃ to 50℃ Temperature range.
- Provides automatic temperature compensation.
- 8 kinds of wood density, provide the choice
- Moisturer limit value alarm setting
- Data hold function to freeze the desired value
on display.
- Microprocessor circuit ensures high accuracy
and provides special functions and features
- Operates from DC 9V ( 006P,MN1604 ) batteries.
- Built-in low battery indicator.
- Durable, long-lasting components, enclosed in
strong, compact ABS-plastic housing.
一般規格
應用 (Applications)
- Designed to check the moisture level of wood.
測量原理 (Measuring Principal)
- Use high-frequency induction Then the conductivity
of species Converter reads % " moisture Content "
顯示 (Display)
- LCD size :46.5 mm x28.5 mm.
濕度
(Moisture) '@ 23 ℃ ±5 ℃
- Range：0 % to 50 %
- Resolution：0.5 %RH.
- Accuracy：±1.5 RH
溫度
(TEMP) '@ 23 ℃ ±5 ℃
- Range：0℃ to 50℃
- Resolution：0.1 ℃
- Accuracy：±2 ℃(3.6℉)
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
資料鎖定 (Data hold)
- Freeze the display reading.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
操作溫度 (Operating Temp.
)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 006P, MN1604 ( PP3 ) DC 9V battery
電源電流 (Power Current)
- Approx. DC 7.0 mA
重量 (Weight)
- 109 g/ 0.24 LB.
體積 (Dimension)
- 131 x70 x 26 mm (5.15" x 2.75" x 1.0")
附件 (Standard Accessory)
- Instruction manual........... 1 PC.
測量 (Measurement)
- Measure moisture content over range 9 % to 30 %.
選購附件 (Optional accessories)
- * Soft carrying case with sash. ( 140 x 77 x 40 mm
), Model : CA-04
木材密度表 (Wood Density Tables)
|
GEAR |
Density g/cm3 |
Wood Variety |
| 1 |
0.27~0.38 |
Poplar, cathay poplar, fir, Monterey pine,
bass wood, red wood, white pine, thalictrum,sago palm, hard
Chinese parasol. |
| 2 |
0.38~0.45 |
Douglas fir, yellow cedar, pine wood,
aspen,cotton wood, hemlock, spruce, rose wood,okoume,
okoumev, fir wood, African cordia,red pine, hemlock,
cypress, dyera. |
| 3 |
0.45~0.55 |
Douglas fir, yellow cedar, pine wood, fir
wood,cotton wood, cypress, alder, African
mahogeny,Philippines mahogany, hard wood, stained wood,aspen,
ramin, karuri, hoop pine, hemlock,kahikatea, ivy tree bark. |
| 4 |
0.55~0.65 |
Birch, elm, red oka, black walnut,
beech,lroko, keruing, cashew, rubber wood. |
| 5 |
0.65~0.75 |
Pecan, merbau, white oak, olive, lauan,
beech,teak wood, apocynaceae, bangkirai, ash wood. |
| 6 |
0.75~0.85 |
Wenge, philippines mahogany, palaquium spp
australia mahogaany, jatoba, garapa, beech,ebony, copaifera
religiosa, african buginga,reular buginga, bubinga, punah |
| 7 |
0.85~0.95 |
Hainan yellow pear wood, aspidosperma
spp,beefwood, cumaru, dracaena goldieana. |
| 8 |
0.95~1.05 |
dipteryx spp, lapacho, logwood, xylia
spp,red sandalwood, lndian pterocarpus spp,southeast asian
pterocarpus spp, dalbergia spp.ebony, |
|
