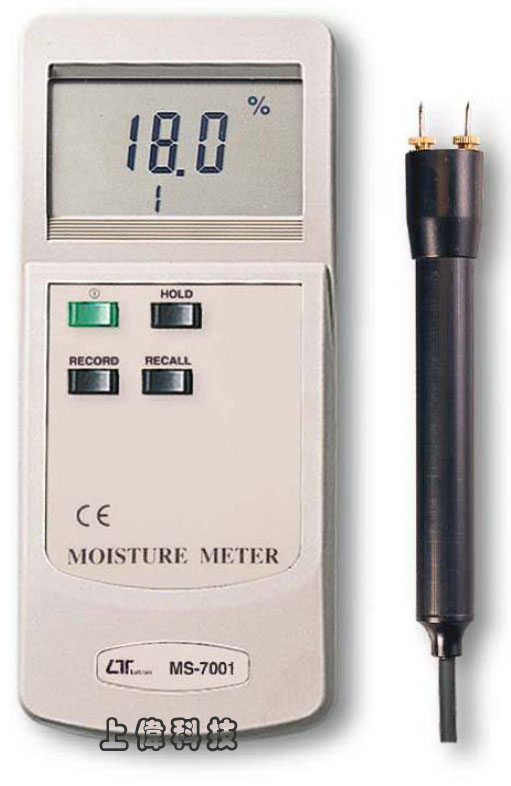

MS-7001

經濟型木材水分計

特色

測量範圍 : 9 ~ 30%. ±4%

讀值鎖定功能

可記錄測量中最大值,最小值

Size : 185 x 78 x 38mm.

FEATURES

Measure moisture content over range 9 % to 30 %.

Microprocessor circuit assures maximum possible accuracy, provides special functions and features.

Super large LCD with dual display.

Heavy duty & compact housing case, designed for easy carry out & operation.

Records Maximum & Minimum reading with recall.

Data hold function to freeze the desired value on display.

Auto shut off saves battery life.

Built-in low battery indicator.

Separate pin type moisture probe, easy operation. & remote measurement.

一般規格

應用 (Applications)

For surveying buildings for dampness and for the rapid determination of the moisture content of wood/timber.

原理 (Principal)

Used the 2 pins electrode to measure the conductive ability of the species, then converter to the reading of % " Moisture of Content ".

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

顯示 (Display)

13 mm ( 0.5" ) super large LCD display,

測量 (Measurement)

Measure moisture content over range 9 % to 30 %.

測棒 (Probe)

Separate 2 pins moisture electrode,

校正 (Calibration)

Built-in self-calibration circuit by push button on front panel.

資料鎖定 (Data hold)

Freeze the display reading.

記憶回叫 (Memory Recall)

Records Maximum & Minimum reading value.

關機 (Power off)

Auto shut off, saves battery life, or manual off by push button.

取樣時間 (Sampling Time)

Approx. 0.8 sec

操作溫度 (Operating Temp. )

0 to 50 ℃.

操作溼度 (Operating Humidity)

Less than 80% R.H.

電源供應 (Power Supply)

006P, MN1604 ( PP3 ) DC 9V battery or equivalent, recommend use the alkaline or heavy duty battery.

電源電流 (Power Current)

 Approx. DC 6.5 mA

重量 (Weight)

330 g/0.73 LB

體積 (Dimension)

Main instrument : 180 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch ).

Moisture Probe :

Round 23 mm Dia. x 165 mm.

Round 0.9 inch Dia. x 6.5 inch.

附件 (Standard Accessory)

Instruction manual.......................... 1 PC.

Moisture probe...............................1 PC.

Extra contact pins...........................1 Set.

Soft Carrying Case with saah .( CA-05A ).... 1 PC.

　
