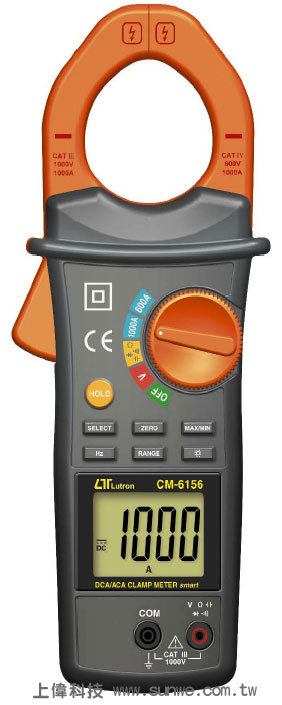

CM-6156C
交直流鉤錶
簡介
- 交直流電流：0.1A ~ 1000A ±2%
- 交直流電壓：0.001V ~ 1000V ±1%
- 電容：0.001nF ~ 600uF ±3%
- 電阻：0.1Ω ~ 60MΩ ±1.5%
- 頻率：40Hz ~ 1KHz ±0.5%
- 可記錄最大值、最小值及讀值鎖定
- 鉤部口徑 33mm
- Size：241 X 98 X 46mm
FEATURES
- Meet IEC 1010 CAT III 1000 V safety requirement.
- 6000 counts A/D, high resolution.
- ACV, ACA, DCV, DCA, ohms, continuity, Hz, Capacitance, Diode.
- Smart function, Auto range or manual range with hold.
- Smart operation, Build in 4 intelligent function : " V ", " Ω "," 600A ", " 1000A ".
- " V " function can select ACV, DCV automatically with auto range.
- " Ω " function can select the Resistance , Diode, Continuity beeper, Capacitance automatically with auto range.
- " 600A " & " 1000A " function can select ACA, DCA automatically.
- Data hold .
- Auto shut off is available to save battery life.
- 10M ohm impedance for voltage circuit.
- Built-in overload protection for most ranges.
- LSI circuit provides high reliability and durability.
- Uses durable, long-lasting components, enclosed in strong, light weight ABS-plastic housing.
- Full line optional adapters : Clamp adapter, Tachometer adapter, Pressure adapter, Humidity Adapter, Sound level adapter, Anemometer adapter, Light adapter, EMF adapter.
一般規格
顯示 (Display)
- 39.5 mm x29.8 mm large LCD display
測量 (Measurement)
- DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Diode, Continuity beeper.
A/D 計數 (A/D counts no.)
- 6000 counts.
智能功能 (Smart function)
- " V " function can select ACV, DCV automatically with auto range.
- " Ω " function can select the Resistance, Diode, Continuity beeper, Capacitance automatically with auto range.
- 600A " " 1000A " function can measure ACA, DCA .
- Records Maximum & Minimum readings Remark Discharge capacitor before testing.with recall.
讀值鎖定 (Data hold)
- To freeze the display reading on the LCD display
電源開關管理 (Power On/Off management)
- Auto power of or manual power off.
赫茲按鈕 (Hz button)
- When execute the voltage or current function also can measure the frequency of signal.
選擇範圍 (Selection Range)
- Smart function or auto function .
- manual range selecting.
極性 (Polarity)
- Automatic Switching, " - " indicates negative polarity.
取樣時間 (Sampling Time)
- Approx. 0.5 to 1 second.
操作溫度 (Operating Temperature)
- 0 to 50 ℃. ( 32 to 122℉ ).
操作溼度 (Operating Humidity)
- Max. 80% R.H.
電源供應 (Power Supply)
- DC 9 V battery 006P, MN1604
消耗功率 (Power Consumption)
- Approx. DC 9.1 mA.
最大鉤部尺寸 (Max. Conductor size)
- 32 mm (1.3 inch) Dia.
體積 (Dimension)
- 241 x94 x 46 mm ( 9.5 x 3.7 x 1.8 inch ).
重量 (Weight)
- 373 g/0.82 LB ( w/o battery ).
附件 (Accessories Included)
- Red and Black Test Leads 1 Set
- Instruction Manual...... 1 PC
- Soft carrying case ..... 1 PC
選購附件 (Optional accessories)
- Full line adapters :
- ACA/DCA current adapter
- Tachometer adapter
- Humidity adapter
- Pressure adapter
- Light adapter
- EMF adapter
- Sound level adapter
- High voltage probe
電器規格 (23±5 ℃)
DC Voltage
- Range：600mV /6V /60V /600V /1000V
- Resolution：0.1mV /0.001V /0.01V /0.1V /1V
- Accuracy：
- ± ( 0.8%+2d ) 600mV
- ± ( 0.8%+1d ) 6V, 60V, 600V, 1000V
- Input impedance：10M ohm.
- Over load protection：
- 600 mV range ± 500 DCV, 350 ACV
- other ranges ± 1000 DCV, 1000 ACV
AC Voltage
- Range：6V /60V /600V /1000V
- Resolution：0.001V /0.01V /0.1V /1V
- Accuracy：± ( 1% + 2d ) * Spec. are tested under 50/60 Hz.
- Input impedance：10M ohm.
- Over load protection：
- 600 mV range± 500 DCV, 350 ACV
- other ranges ± 1000 DCV, 1000 ACV
DC Current, AC Current
- Range：600A /1000A
- Resolution：0.1A /1A
- Accuracy：
- 600 A Range：± ( 1.5% +15d )
- 1000 A Range：± ( 2% +8d )
- Over load protection：AC/DC 1000A
- Remark：
- * ACA specification be tested on sine wave 50/60 Hz.
- * Measurement range︰0.1A to 1000A
Diode
- Short/non conductance, good/defect test
Capacitance
- Range：6nF /60nF /600nF /6uF /60uF /600uF
- Resolution：0.001nF /0.01nF /0.1 nF /0.001uF /0.01uF /0.1uF
- Accuracy：± ( 3 % + 5d )
- Over load protection：± 30 DCV, 30 ACV.
- Remark：Discharge capacitor before testing.
Frequency
- Range：40Hz to 1KHz
- Resolution：0.001 KHz
- Accuracy：± ( 0.5% + 2d )
- Over load protection：± 1000 DCV, 1000 ACV.
OHMS ( auto range )
- Range：600 /6K /60K /600K /6M /60M
- Resolution：0.1Ω /0.001K /0.01K /0.1K /0.001M /0.01M
- Accuracy：
- 600 ohm : ± ( 1 % + 2d )
- 6K /60K /600K /6M /60M : ± ( 1.5 % + 2d )
- Over load protection：± 350 DCV, 350 ACV.
Continuity Beeper
- Beeper will sound if measured resistance less than 20 ohm.
Max. & Min. Measurement
- During the operation can memorize the maximum and the minimum measurement value.
|
