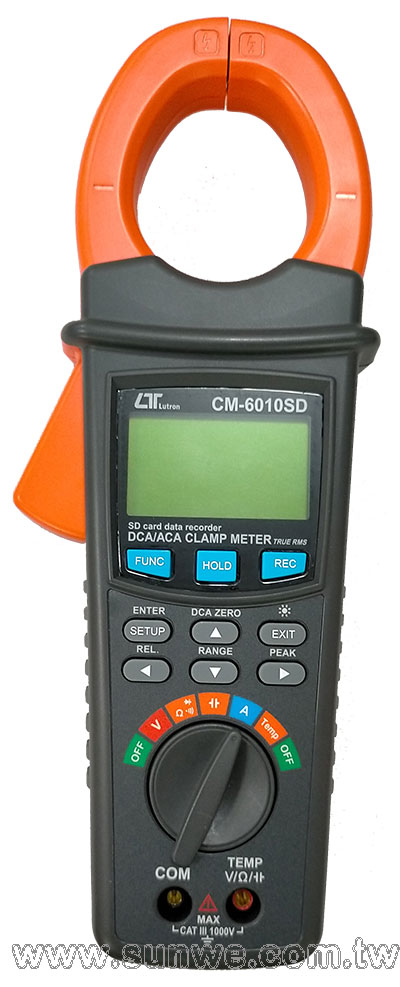

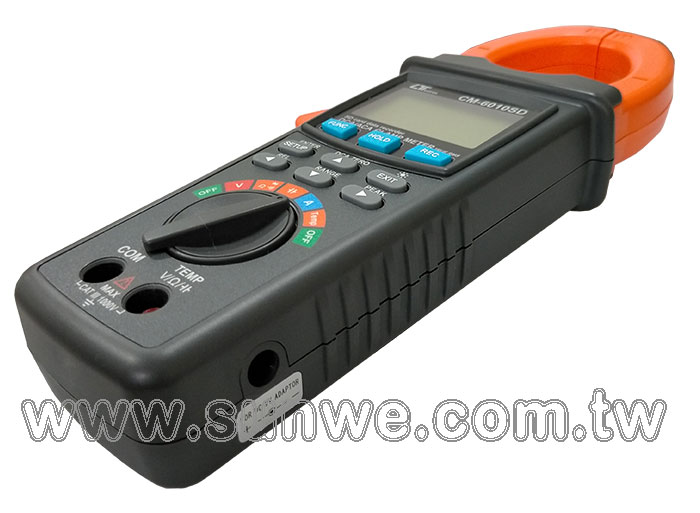

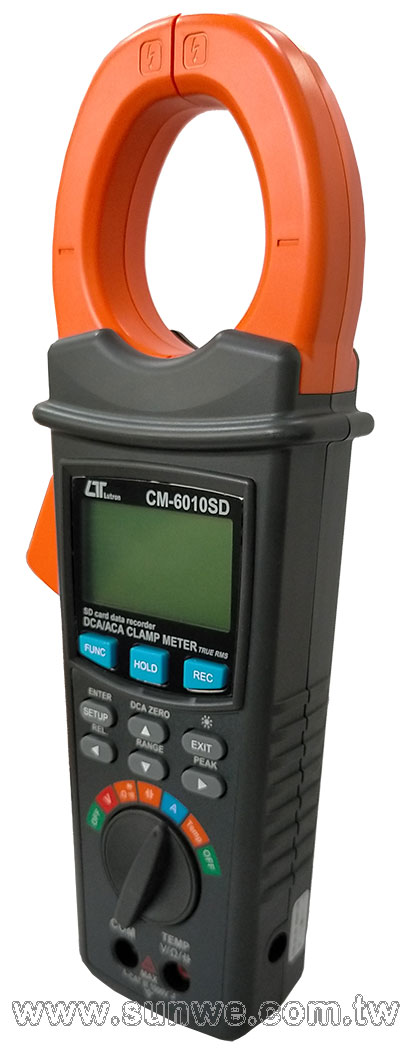

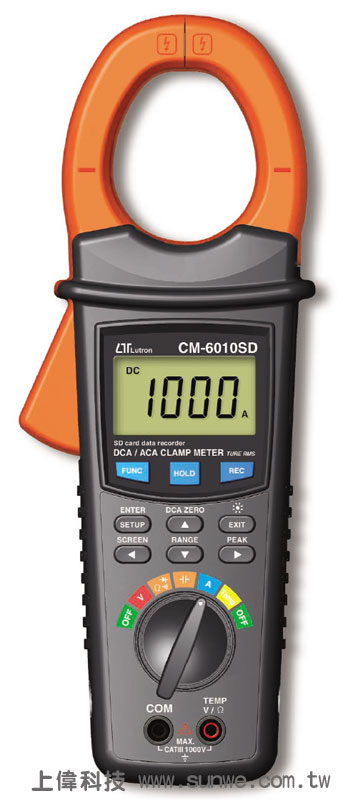

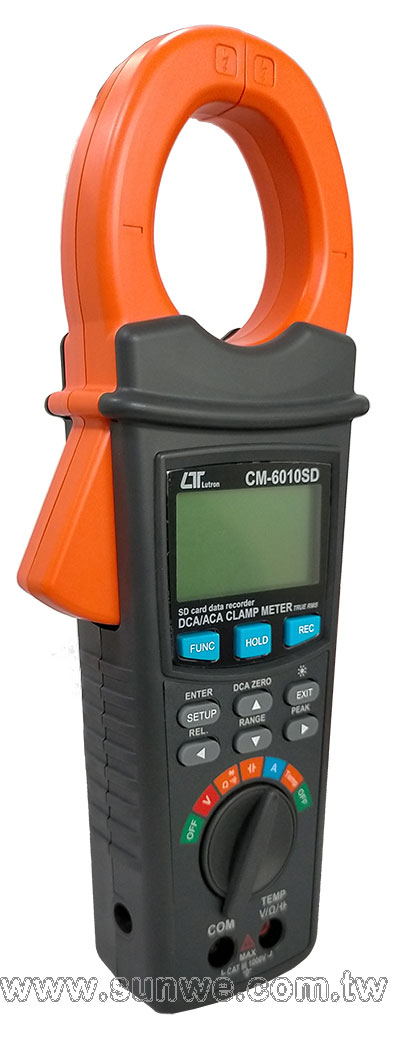

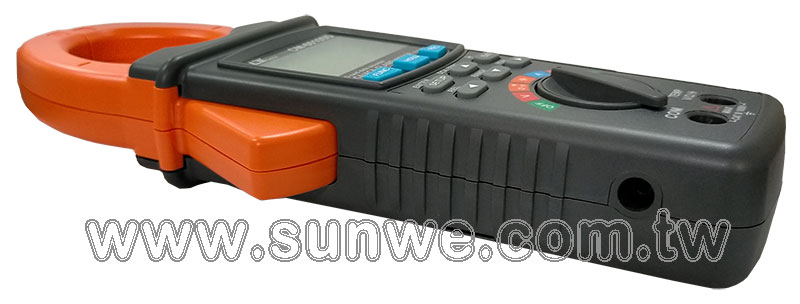

CM-6010SD
記憶式交直流鉤錶

簡介
- 即時數據紀錄儲存在SD記憶卡(選購),資料可下載到Excel,做圖表分析(記憶卡選購)
- 交直流電流:0.5A ~ 2000A ±1%
- 交直流電壓:0V ~ 1000V ±0.8%
- 電容:0.001nF ~ 600uF ±3%
- 電阻:0.1 ~ 60M歐姆 ±1% 或 ±1.5%
- 頻率:0.1Hz ~ 1KHz ±0.5%
- 溫度:TYPE K : -100.0 ~ 1300.0°C ±1%
- 讀值鎖定及記錄測量中之最大 / 最小值
- Size:280 X 106 X 47mm
- 鉤部口徑:57mm
特色
- 即時記錄數據保存到 micro SD記憶卡,不須額外軟體可以下載到Excel
- 即時數據記錄器,內置時鐘(年/月/日/ hourminute/秒),採樣時間為2〜7200秒
- 測量功能:ACA。 DCA。 ACV,DCV,電阻,二極管,連續性,電容,溫度(外接溫度測棒)
- ACA範圍:0〜2000 ACA,自動量程
- DCA範圍:0〜2000 DCA,自動量程
- ACV範圍:0〜1000 ACV,自動量程
- DCV範圍:0〜1000 DCV,自動量程
- 電阻範圍:0〜10兆歐,自動量程
- 真有效值測量ACV,ACA
- CAT III1000V,CAT IV600V
- DCA 歸零按鈕
- 讀值鎖定(最大,最小測量值)
- 57 mm 鉤部口徑
- ACV,DCV輸入阻抗為10兆歐
- LCD 背光螢幕
- SD存儲卡的容量:1 GB到32 GB,micro SD卡
- 電源供應 1.5V(UM-3/ AA)× 2 鹼性電池或 DC 9V 變壓器
- SD卡的數據記錄功能時,可以使用的電源是使用直流 9V 變壓器
- RS232/ USB 電腦端口
- 可選購 USB 連接線,USB-01
- 可選購數據採集軟件,SW-U801-WIN,SW-E802
- 可選購 K 型熱電偶,TP-11
FEATURES
- Real time data logger, save the data into the micro SD memory card and can be downloaded to the Excel, extra software is no need.
- Real time data logger, built-in clock ( year/month/date/hour minute/second ),sampling time can be set from 2 to 7200 seconds.
- Measurement functions : ACA. DCA. ACV, DCV. Resistance, Diode, Continuity, Capacitance, Temp. ( optional Temp. probe )
- ACA range : 0 to 2000 ACA, auto range.
- DCA range : 0 to 2000 DCA, auto range.
- ACV range : 0 to 1000 ACV, auto range.
- DCV range : 0 to 1000 DCV, auto range.
- Resistance range : 0 to 10 Megohm, auto range.
- True rms measurement for ACV, ACA.
- CAT III 1000V, CAT IV 600V.
- DCA zero button.
- Hold, REC ( Max., Min. measuring value ).
- 57 mm measuring conductor size.
- ACV, DCV input impedance is 10 Megohm.
- LCD with backlight.
- SD memory card capacity : 1 GB to 32 GB, micro SD card.
- Powered by DC 1.5V ( UM-3/AA ) x 2 PCs batteries ( Alkaline type ) or DC 9V adapter.
- SD card data record function is available when the power supply is to use the DC 9V adapter.
- RS232/USB computer interface.
- Carrying case is included.
- Optional USB cable, USB-01.
- Optional data acquisition softwares, SW-U801-WIN, SW-E802.
- Optional type K Temp. probe, TP-11.
一般規格
電路 (Circuit)
- Custom single-chip microprocessor LSI circuit
顯示 (Display)
- LCD Size: 3.2 X 2.4" (60 X 44.4 mm)
- Dot Matrix backlit LCD (128 X 64 pixels)
測量 (Measurement)
- DCV/ACV
- DCA/ACA
- Resistance/DIODE/Continuity Beeper
- Capacitance
- Frequency
- Temperature
- A/D 計數 (A/D counts no.)
- 6000 counts.
電壓範圍 (Voltage ranges)
- 0.5 mV to 1000 V (DCV/ACV, Auto or
Manual Range).
電流範圍 (Current ranges)
- 0.5 ACA to 2000 ACA (DCA/ACA, Auto
or Manual Range).
安全認證 (Safety standard)
- IEC1010 CAT III 1000 V.
ACV 輸入阻抗 (ACV input impedance)
- 10M ohms.
鉗位頻率響應 (Clamp frequency response)
- 40 Hz to 1 KHz.
過載保護 (Over-load protection)
- DCV/ACV:1000 DCV / 1000 ACV
RMS.
- DCA/ACA:2100 DCA/ACA with
clamp probe.
超量程 (Over-range)
- * LCD display show " OL ".
- * The data save into the SD card
will show " 9999 " or " 999 " (overleap the decimal point).
讀值鎖定 (Data Hold)
- Freezes displayed reading.
數據記錄 (Data Recording)
- Micro SD memory card ( 1 GB to 32
GB ).
相對測量 (Relative measurement)
- To offset the measurement value.
峰對峰值 (Peak to Peak)
- DCV/ACV,DCA/ACA peak to peak
measurement value.
DCA
歸零調整 (DCA zero adj.)
- DCA zero adjustment.
範圍選擇 (Range selection)
- Auto range with manual range
selecting.
極性 (Polarity)
- Automatic Switching, " - "
indicates negative polarity.
資料集錄器 (Datalogger)
- * Real time data logger, saved the
data into miro SD memory card and down load the all the measured
value with the information ( year/month/data/ hour/minute/second
) down load to the Excel.
- * Sampling time for data logger :
2 seconds to 7200 seconds.
- * When the system detects micro SD
format does not match with the Machine that will be mandatory
for reformatting to ensure that data records can be normal.
- * Data error no. : ≦ 0.1% no. of
total saved data typically.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 second.
資料輸出 (Data output)
USB/RS232 * Computer interface
- RS232 computer serial interface
:
- * Connect the optional USB cable
USB-01 will get the USB plug.
- * Connect the optional RS232 cable
UPCB-02 will get the RS232 plug.
操作溫度 (Operating Temp.)
- 0 to 50℃ ( 32 to 122℉ ).
操作溼度 (Operating Humidity)
- 80% Relative Humidity max.
電源供應 (Power Supply)
- * DC 1.5V, AA ( UM-3 ) Battery x 2
PCs (Alkaline or heavy-duty battery).
- * AC to DC 9V power adapter (
Linear type ).
電源消耗 (Power Consumption)
- 34 mA DC.
最大鉤部尺寸 (Max.
Conductor size)
- Clamp can accommodate up to 2.0"
(50 mm) diameter.
體積 (Dimensions)
- 11.0 x 4.2 x 1.9" (280 x 106 x
47mm)
附件 (Accessories Included)
- Instruction manual.... 1 PC
- Test Leads.............1 Set (2
pieces)
- Alligator clips........1 Set (2
pieces)
- Carrying case..........1 PC
選購附件 (Optional
accessories)
- * Micro SD card(8 GB)
- * Type K Temp. probe, TP-11.
- * AC to DC 9V adapter ( Linear
type ).
- * USB cable,USB-01.
- * RS232 cable,UPCB-02.
- * Data Acquisition
software,SW-U801-WIN.
電器規格 (23±5 ℃)
DCV
Range
|
Resolution |
Accuracy |
600 mV /6 V/60 V/600 V /1000 V |
0.1 mV /0.001V /0.01V /0.1V/1
V |
600 mV |
± (0.8%+2d) |
6V to 1000V |
± (0.8%+1d) |
Peak to Peak |
± (5%+30d) |
ACV
Range
|
Resolution |
Accuracy |
600 mV /6 V/60 V/600 V /1000 V |
0.1 mV /0.001V /0.01V /0.1V/1
V |
± (1%+2d) |
Peak to Peak |
± (5%+30d) |
DCA,ACA
Range
|
Resolution |
Accuracy |
0.5A to 2000A |
0.1A/1 A |
600A |
± (1%+12d) |
2000A |
± (1%+8d) |
Peak to Peak |
± (5%+30d) |
OHMS
Range
|
Resolution |
Accuracy |
600/6K/60K/600K/6M/60M |
0.1Ω /0.001K/0.01K/0.1K/0.001M/0.01M |
600 ohm |
± (1%+12d) |
6K to 60M |
± (1.5%+2d) |
DIODE
- Short/non conductance, good/defect
test
Continuity Beeper
- Beeper will sound if measured resistance less than 5 ohm
Capacitance
Range
|
Resolution |
Accuracy |
6 nF/60 nF/600 nF/6 uF/60 uF/600
uF |
0.001nF/0.01nF/0.1 nF/.001uF/0.01uF/0.1uF |
± (3%+5d) |
Frequency(ACV > 6.5V,ACA > 15A)
Range
|
Resolution |
Accuracy |
40Hz to 999.9Hz |
0.1Hz |
± (0.5%+2d) |
Type K Temperature
Range
|
Resolution |
Accuracy |
-100.0℃ to 199.9℃ |
0.1℃ |
± (1%+1℃) |
200℃ to 1300℃ |
1℃ |
± (1%+2℃) |
-148.0℉ to 391.8℉ |
0.1℉ |
± (1%+1.8℉) |
392℉ to 2372℉ |
1℉ |
± (1%+3.6℉) |





|
