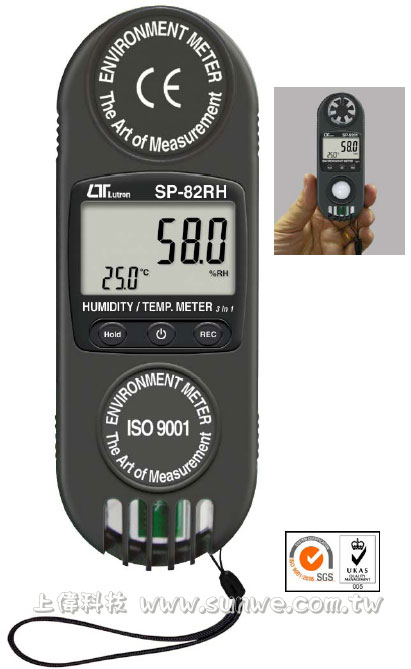

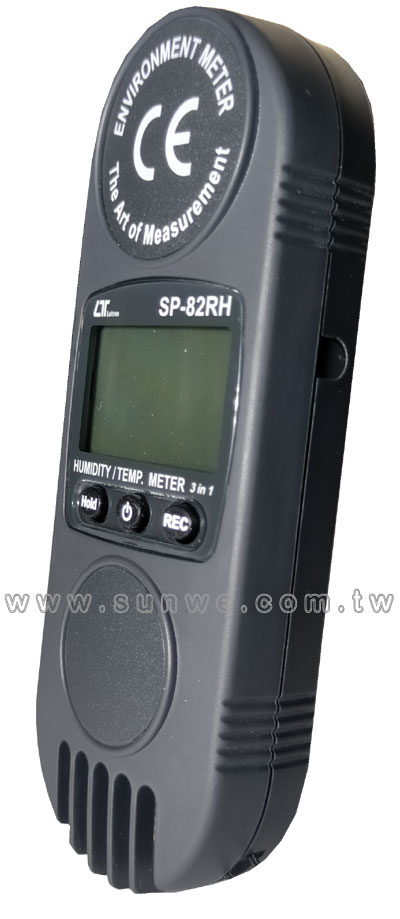

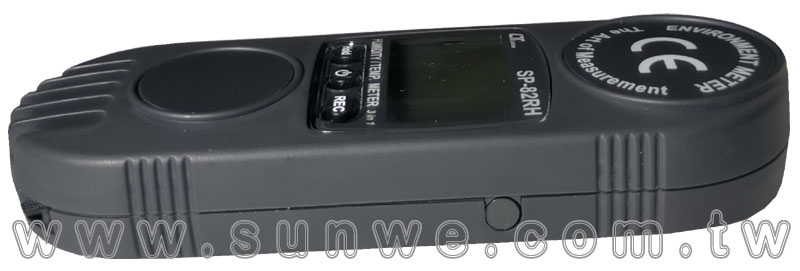

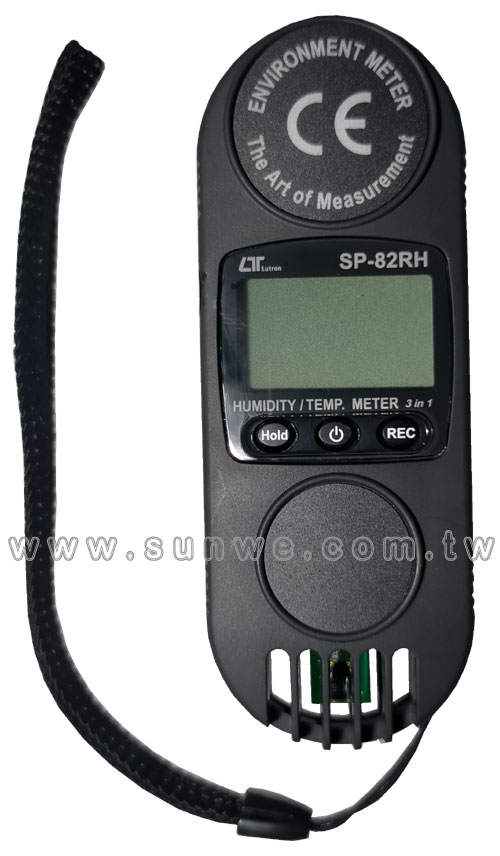

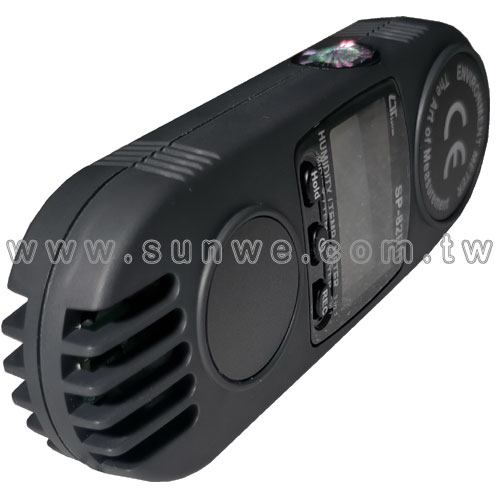

SP-82RH
掌上型溫濕度/露點計
簡介
- 極為輕巧細緻的外觀設計,適合單手操作
- 溼度：10~95%R.H. ±4%
- 溫度：0~50.0℃±1.2℃
- 露點：-25.3℃~49.0℃
- 溼球溫度：-5.4℃~49.0℃
- 雙視窗顯示器,可同時顯示溼度/溫度值
- 讀值鎖定及記錄測量中之最大/最小值
- Size:120*45*20mm.
FEATURES
- 3 in 1 professional environment instruments:
- 1. Humidity/Temp.
- 2. Dew point
- 3. Wet bulb.
- Tiny bone shape with lightweight and small size case design are suitable for handling with one hand.
- Wristlet design provides extra protection to the instrument especially for user one hand operation.
- High precision humidity sensor with fast response time.
- Built- in microprocessor circuit assures excellent performance and accuracy.
- Concise and compact buttons arrangement, easy operation.
- Memorize the maximum and minimum value with recall.
- ℃/℉ detection by pressing button on the front panel.
- Hold function to freeze the current reading value.
一般規格
顯示 (Display)
- 8 mm LCD display
測量 (Measurement)
- 1. Humidity/Temp.
- 2. Dew point
- 3. Wet bulb
操作溼度 (Operating Humidity)
- Max. 80% RH.
操作溫度 (Operating Temp.)
- 0 to 50° C (32 to 122° F)
過載輸入顯示 (Over Input Display)
- Indication of "- - - - "
電源供應 (Power Supply)
- CR 2032 DC 3V battery
電源消耗 (Power Consumption)
- Approx. DC 5 mA
重量 (Weight)
- 160g (battery included)
體積 (Dimension)
- HWD 120 x 45 x 20 mm (4.7 x 1.8 x 1.2 inch)
附件 (Standard Accessory)
- Instruction Manual
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃
濕度/溫度 (Humidity/Temp.)
| Unit | Range |
Resolution |
Accuracy |
| % RH |
10 to 95 %RH |
0.1 %RH |
< 70% RH : ± 4 %RH |
| ≧70% RH : ± ( 4 %rdg +1.2 %RH) |
| Temp. |
0 to 50 ℃ |
0.1 ℃ |
± 1.2 ℃ |
| 32 to 122 ℉ |
0.1 ℉ |
± 2.5 ℉ |
露點溫度 (Dew point Temp.)
| Unit |
Range |
Resolution |
Remark |
| ℃ |
-25.3 to 49.0 ℃ |
0.1 ℃ |
* Calculate from the humidity/Temp. value |
| ℉ |
-13.5 to 120.0 ℉ |
0.1 ℉ |
溼球溫度 (Wet bulb Temp.)
| Unit |
Range |
Resolution |
Remark |
| ℃ |
-5.4 to 49.0 ℃ |
0.1 ℃ |
* Calculate from the humidity/Temp. value |
| ℉ |
22.2 to 120 ℉ |
0.1 ℉ |
|
